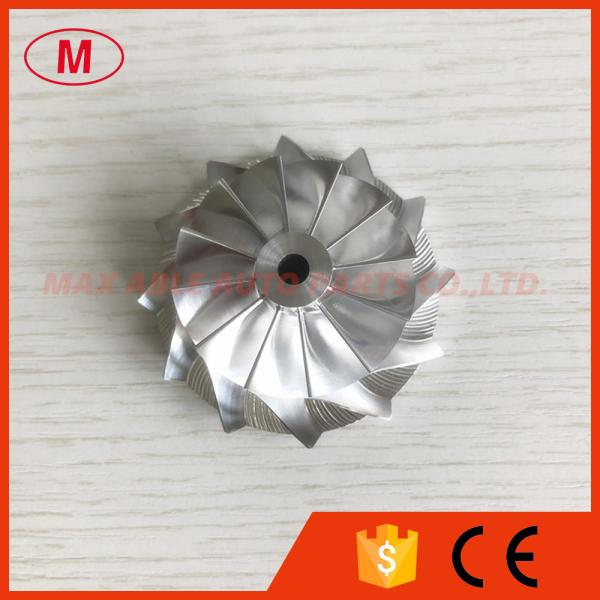

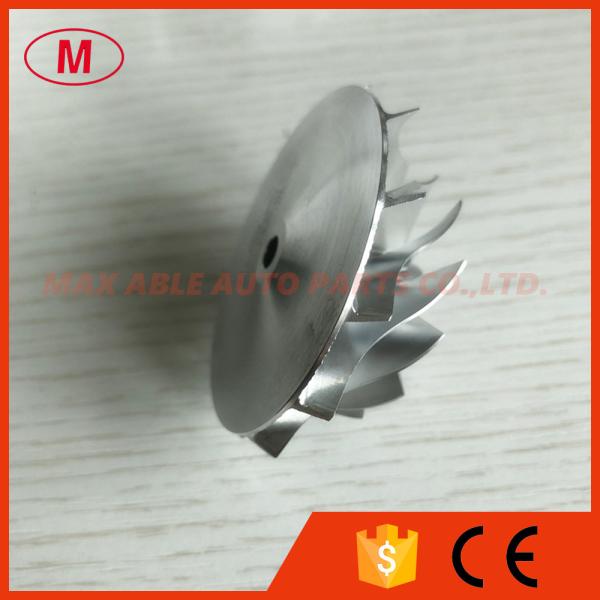

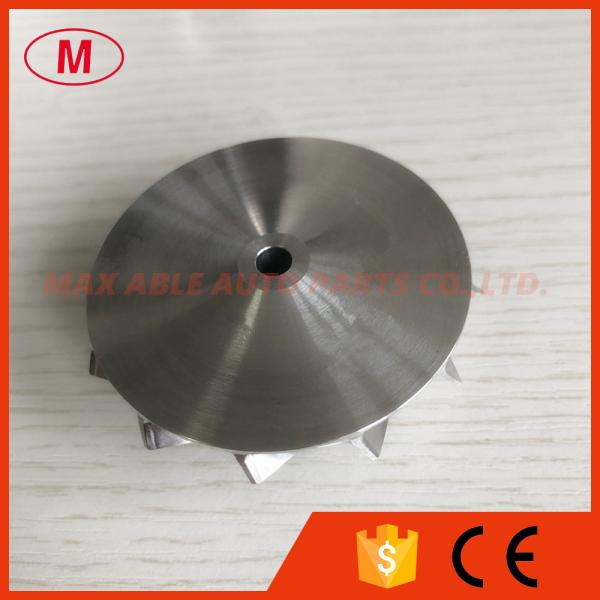

TD04H 13C 49183-41500 40.00/53.00mm 12+0 blades high performance turbo milling/aluminum 2618/Billet compressor wheel
TD04H 13C 49183-41500 40.00/53.00mm 12+0 blades high performance turbo milling/aluminum 2618/Billet compressor wheel
TD04H 13C 49183-41500 40.00/53.00mm 12+0 blades high performance turbo milling/aluminum 2618/Billet compressor wheel
TD04H 13C 49183-41500 40.00/53.00mm 12+0 blades high performance turbo milling/aluminum 2618/Billet compressor wheel
TD04H 13C 49183-41500 40.00/53.00mm 12+0 blades high performance turbo milling/aluminum 2618/Billet compressor wheel
TD04H 13C 49183-41500 40.00/53.00mm 12+0 blades high performance turbo milling/aluminum 2618/Billet compressor wheel
TD04H 13C 49183-41500 40.00/53.00mm 12+0 blades high performance turbo milling/aluminum 2618/Billet compressor wheel
TD04H 13C 49183-41500 40.00/53.00mm 12+0 blades high performance turbo milling/aluminum 2618/Billet compressor wheel
Specifications
Brand Name :
NO
Model Number :
TD04H
Certification :
ISO
MOQ :
1PC
Price :
DISCUSS
Payment Terms :
T/T, Western Union, MoneyGram,PAYPAL
Supply Ability :
1000PCS
Delivery Time :
3-7 DAYS
Packaging Details :
neutral packing
Description

1. TD04H 13C 49183-41500 40.00/53.00mm 12+0 blades high performance turbo milling/aluminum 2618/Billet compressor wheel for 49189-01000 B230FT

2.Size:

Nose diameter:12.20mm

Inducer :40.00mm

Exducer:53.00mm

Tapered tip exducer:57.56mm

Tip height:4.95mm

superback:1.90mm

Overall height:23.40mm

bore size:5.00mm

Trailing angle:60

Cutback:0.0

SP height angle:0.00

Splitter height:0.00

Blade height:18.36mm

12+0 blades

foward rotation

Tapered tip angle: 18 degree

It is for OE compressor housing

3.High quality and competitive price.

We have more size and we can produce as your requirement .

All the compressor wheel have been balanced.
