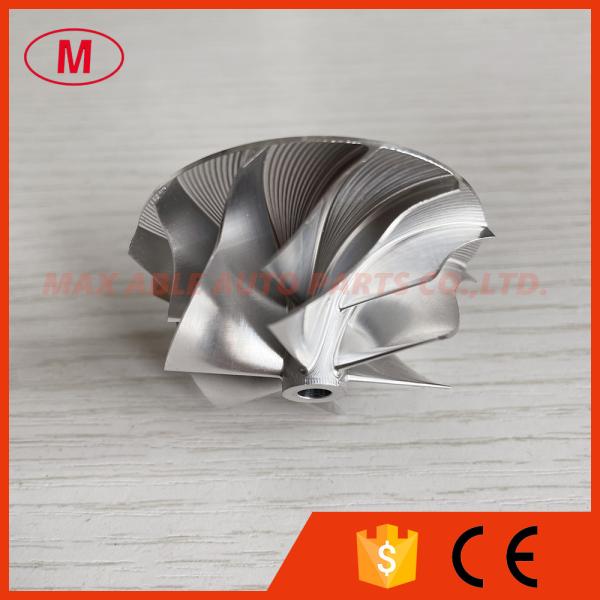

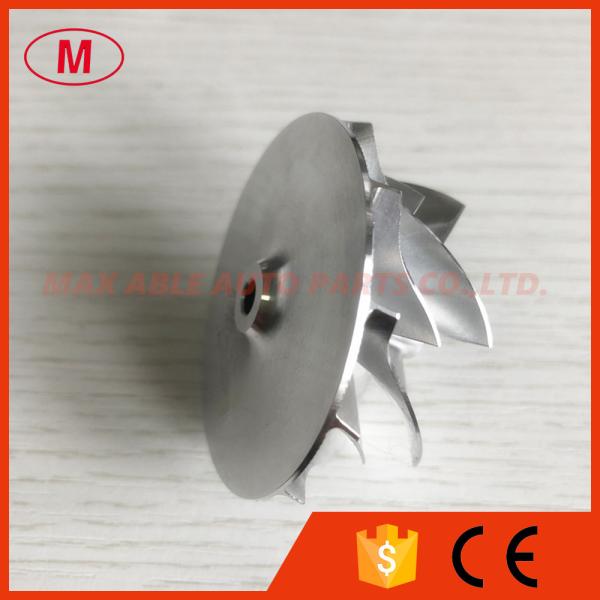

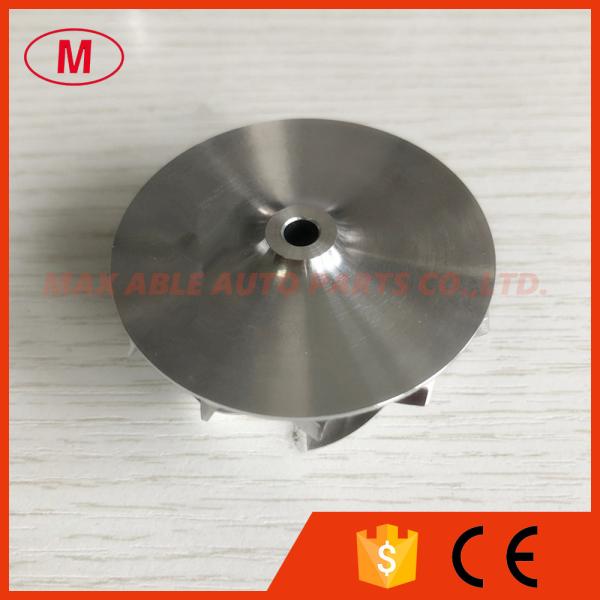

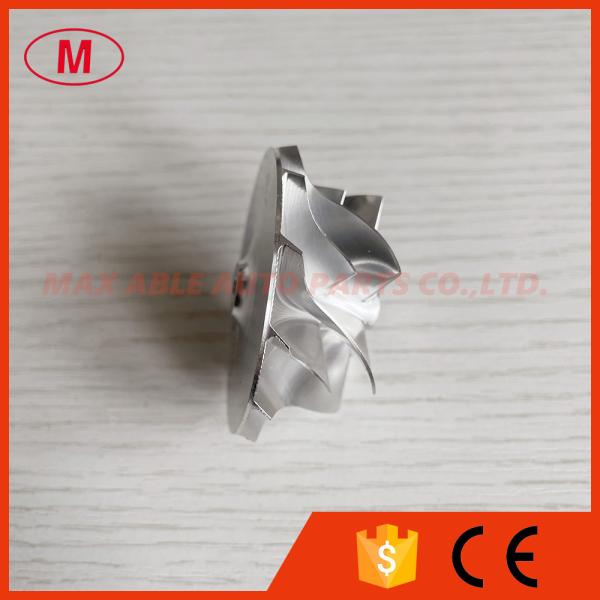

K04 reverse 40.64/50.80mm 6+6 blades Turbo milling/aluminum 2618/billet compressor wheel for 5303-970-0048 reverse
K04 reverse 40.64/50.80mm 6+6 blades Turbo milling/aluminum 2618/billet compressor wheel for 5303-970-0048 reverse
K04 reverse 40.64/50.80mm 6+6 blades Turbo milling/aluminum 2618/billet compressor wheel for 5303-970-0048 reverse
K04 reverse 40.64/50.80mm 6+6 blades Turbo milling/aluminum 2618/billet compressor wheel for 5303-970-0048 reverse
K04 reverse 40.64/50.80mm 6+6 blades Turbo milling/aluminum 2618/billet compressor wheel for 5303-970-0048 reverse
K04 reverse 40.64/50.80mm 6+6 blades Turbo milling/aluminum 2618/billet compressor wheel for 5303-970-0048 reverse
K04 reverse 40.64/50.80mm 6+6 blades Turbo milling/aluminum 2618/billet compressor wheel for 5303-970-0048 reverse
K04 reverse 40.64/50.80mm 6+6 blades Turbo milling/aluminum 2618/billet compressor wheel for 5303-970-0048 reverse
K04 reverse 40.64/50.80mm 6+6 blades Turbo milling/aluminum 2618/billet compressor wheel for 5303-970-0048 reverse
K04 reverse 40.64/50.80mm 6+6 blades Turbo milling/aluminum 2618/billet compressor wheel for 5303-970-0048 reverse
K04 reverse 40.64/50.80mm 6+6 blades Turbo milling/aluminum 2618/billet compressor wheel for 5303-970-0048 reverse
K04 reverse 40.64/50.80mm 6+6 blades Turbo milling/aluminum 2618/billet compressor wheel for 5303-970-0048 reverse
Specifications
Model Number :
k04 reverse
MOQ :
1PC
Payment Terms :
TT ,western union ,paypal
Supply Ability :
1000pcs
Delivery Time :
3-7 days
Packaging Details :
neutral packing
Description

1. MODEL:K04 reverse

2.K04 reverse 40.64/50.80mm 6+6 blades Turbocharger Billet/milling/aluminum 2618 compressor wheel for 5303-970-0048 reverse
3.Size:

Nose diameter:8.84mm

Inducer:40.64mm

Exducer:50.80mm

Tapered tip exducer:52.91mm

Tip height:4.04mm

Superback:2.60mm

Bore size:4.61mm

bore type:through

Overall height:25.90mm

Trailing Angle:55 degree

Cutback:0.0

Blade height:21.21mm

Splitter height:14.00mm

Sp height angle:-4.50

Tapered tip Angle:18 degree

6+6 blades

reverse rotation

It is custom size ,please check carefully before buying

4.High quality and competitive price.

5.Any questions please send email to me

All the billet wheels have been balanced.
