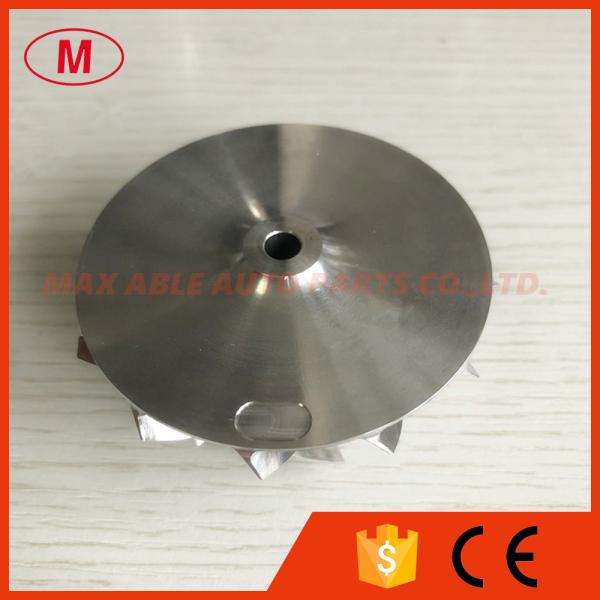

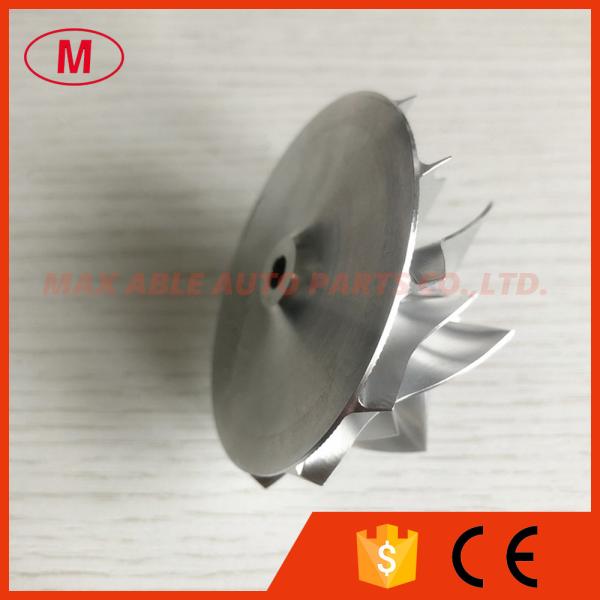

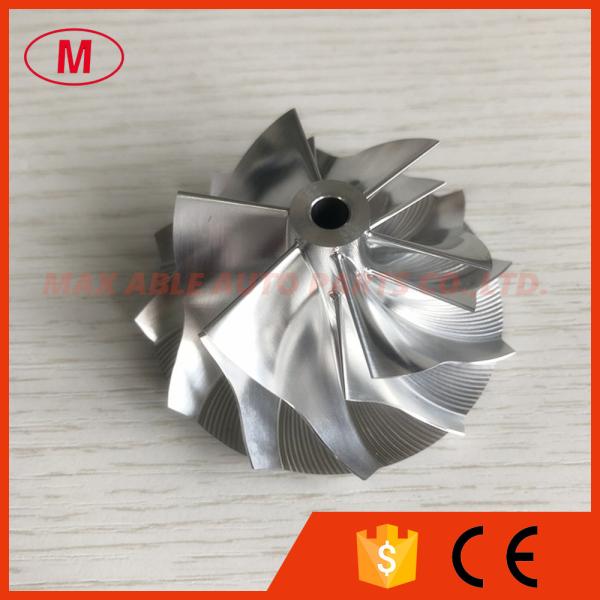

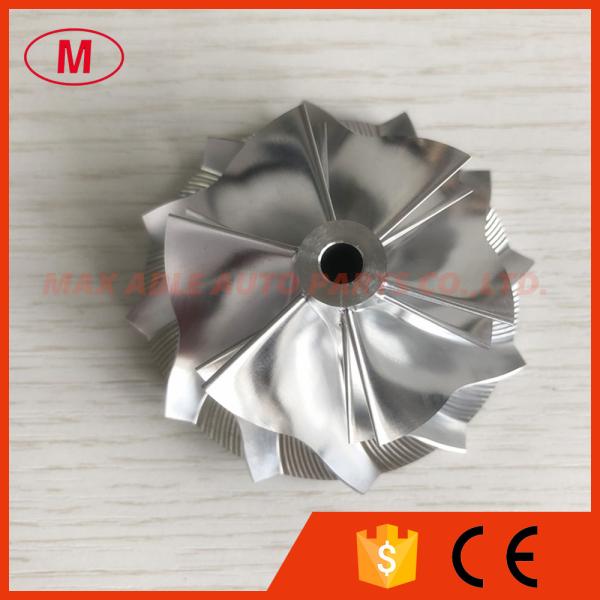

K16 5324-123-2203 6+6 blades 47.70/61.98mm high performance turbo milling/aluminum 2618/billet compressor wheel
K16 5324-123-2203 6+6 blades 47.70/61.98mm high performance turbo milling/aluminum 2618/billet compressor wheel
K16 5324-123-2203 6+6 blades 47.70/61.98mm high performance turbo milling/aluminum 2618/billet compressor wheel
K16 5324-123-2203 6+6 blades 47.70/61.98mm high performance turbo milling/aluminum 2618/billet compressor wheel
K16 5324-123-2203 6+6 blades 47.70/61.98mm high performance turbo milling/aluminum 2618/billet compressor wheel
K16 5324-123-2203 6+6 blades 47.70/61.98mm high performance turbo milling/aluminum 2618/billet compressor wheel
K16 5324-123-2203 6+6 blades 47.70/61.98mm high performance turbo milling/aluminum 2618/billet compressor wheel
K16 5324-123-2203 6+6 blades 47.70/61.98mm high performance turbo milling/aluminum 2618/billet compressor wheel
Specifications
Brand Name :
NO
Model Number :
K16
MOQ :
1PC
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000PCS
Delivery Time :
3-4 DAYS
Packaging Details :
NETRUAL PACKING
Description

1. MODEL:K16 forward

2.K16 5324-123-2203 6+6 blades 47.70/61.98mm high performance turbo billet/milling/aluminum 2618 compressor wheel for Mercedes AMG SL65 5324-970-7703/7706

3.Size:

Nose diameter:11.59mm

inducer:47.70mm

Exduder:61.98mm

Tapered tip exducer:66.27mm

Tip height:4.71mm

Superback:2.67mm

Overall height:32.35mm

bore size :5.41mm

bore type:through

Trailing Angle:50 degree

Cutback:8.00

Blade height:27.43mm

Splitter height:17.20mm

Sp height angle:-2.00

6+6 blades

Forward rotation

Fit for OE compressor housing

Tapred tip angle:30 degree

Application:

5324-970-7703

5324-970-7706

4.High quality and competitive price.

5.if you want more details, please send email to me.

We can produce as your requirement.

The more models we also have.

Skype: maxabledieselparts
Wechat/whatsapp:+ 86-18018657719
K16 5324-123-2203 6+6 blades 47.70/61.98mm high performance turbo milling/aluminum 2618/billet compressor wheel
K16 5324-123-2203 6+6 blades 47.70/61.98mm high performance turbo milling/aluminum 2618/billet compressor wheelK16 5324-123-2203 6+6 blades 47.70/61.98mm high performance turbo milling/aluminum 2618/billet compressor wheelK16 5324-123-2203 6+6 blades 47.70/61.98mm high performance turbo milling/aluminum 2618/billet compressor wheelK16 5324-123-2203 6+6 blades 47.70/61.98mm high performance turbo milling/aluminum 2618/billet compressor wheel
