K04 46.39/56.08mm 5306-123-2014 upgrade 5304-970-0064 upgrade 6+6 blades aluminum 2618/milling/billet compressor wheel
K04 46.39/56.08mm 5306-123-2014 upgrade 5304-970-0064 upgrade 6+6 blades aluminum 2618/milling/billet compressor wheel
K04 46.39/56.08mm 5306-123-2014 upgrade 5304-970-0064 upgrade 6+6 blades aluminum 2618/milling/billet compressor wheel
K04 46.39/56.08mm 5306-123-2014 upgrade 5304-970-0064 upgrade 6+6 blades aluminum 2618/milling/billet compressor wheel
K04 46.39/56.08mm 5306-123-2014 upgrade 5304-970-0064 upgrade 6+6 blades aluminum 2618/milling/billet compressor wheel
K04 46.39/56.08mm 5306-123-2014 upgrade 5304-970-0064 upgrade 6+6 blades aluminum 2618/milling/billet compressor wheel
K04 46.39/56.08mm 5306-123-2014 upgrade 5304-970-0064 upgrade 6+6 blades aluminum 2618/milling/billet compressor wheel
K04 46.39/56.08mm 5306-123-2014 upgrade 5304-970-0064 upgrade 6+6 blades aluminum 2618/milling/billet compressor wheel
Specifications
Brand Name :
NO
Model Number :
k04
Certification :
ISO
MOQ :
1PC
Price :
DISCUSS
Payment Terms :
T/T, Western Union, MoneyGram,PAYPAL
Supply Ability :
1000PCS
Delivery Time :
3-7 DAYS
Packaging Details :
neutral packing
Description

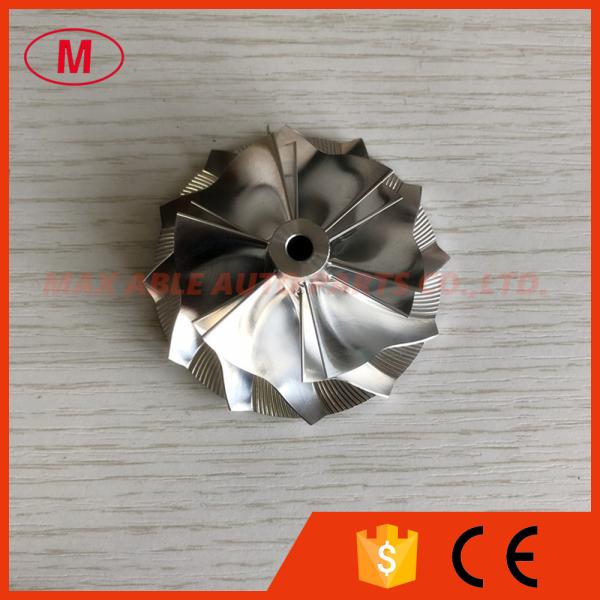

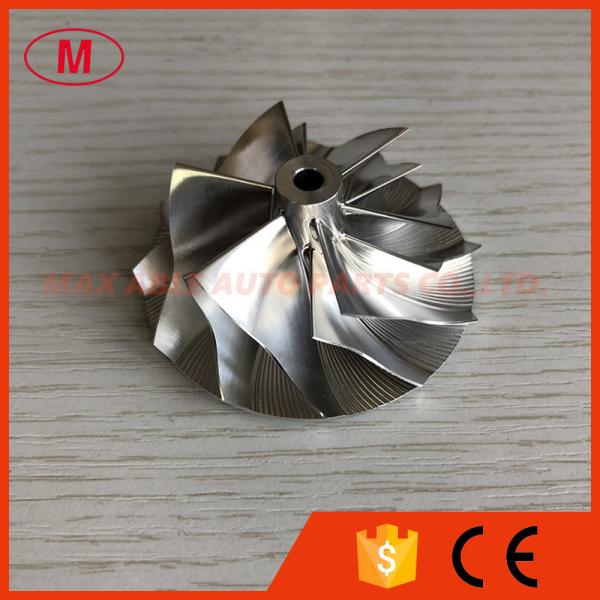

1.Model: K04 5306-123-2014 upgrade 5304-970-0064 upgrade 46.39/56.08mm 6+6 blades aluminum 2618/millining billet compressor wheel for turbo
2.turbo Part no.:53049700064 5304-970-0064 upgrade

Compressor Part number:5306-123-2014 53061232014 upgrade

3.SIZE:

Nose Diameter:10.91mm

inducer:46.39mm

Exducer:60.00mm

Tapered tip exducer:62.83mm

Tip height:3.90mm

Superback:1.80mm

Overall height:25.68mm

bore size :4.61mm

Trailing angle:60

Cutback:0.0

Sp height angle:-2.50

Splitter height:14.60

Blade height:20.06mm

6+6 blades

Foward rotation

Standard size ,the exducer is larger,modified backplate

Tapered tip angle:26 degree

4.Good quality and competitive price

5.Please send email to me or talk to me on online ,if you want to know more details.

All the billet compressor wheel have been balanced.
