TD04HL 20T 49189-X 47.04/58.00mm 6+6 blades Turbocharger Milling/aluminum 2618/billet comp
TD04HL 20T 49189-X 47.04/58.00mm 6+6 blades Turbocharger Milling/aluminum 2618/billet comp
TD04HL 20T 49189-X 47.04/58.00mm 6+6 blades Turbocharger Milling/aluminum 2618/billet comp
TD04HL 20T 49189-X 47.04/58.00mm 6+6 blades Turbocharger Milling/aluminum 2618/billet comp
TD04HL 20T 49189-X 47.04/58.00mm 6+6 blades Turbocharger Milling/aluminum 2618/billet comp
TD04HL 20T 49189-X 47.04/58.00mm 6+6 blades Turbocharger Milling/aluminum 2618/billet comp
Specifications
Model Number :
TD04HL
MOQ :
1PC
Packaging Details :
neutral packing
Delivery Time :
3-7 days
Payment Terms :
TT ,western union ,paypal
Supply Ability :
1000pcs
Size :
47.04/58.00mm
Type :
Turbochargers
Description

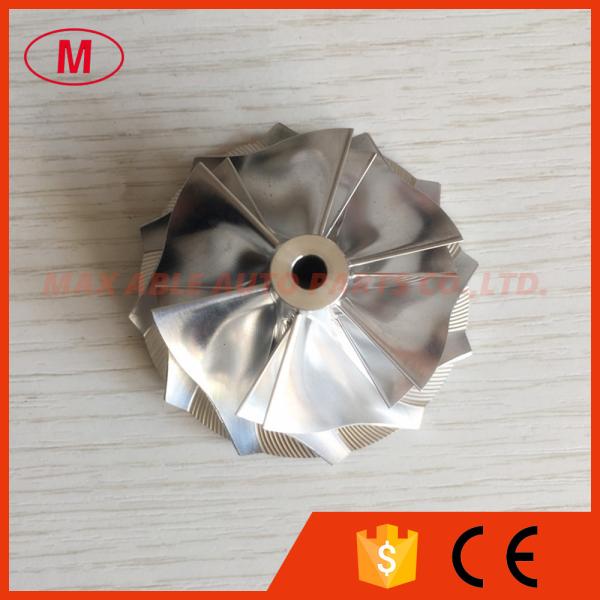

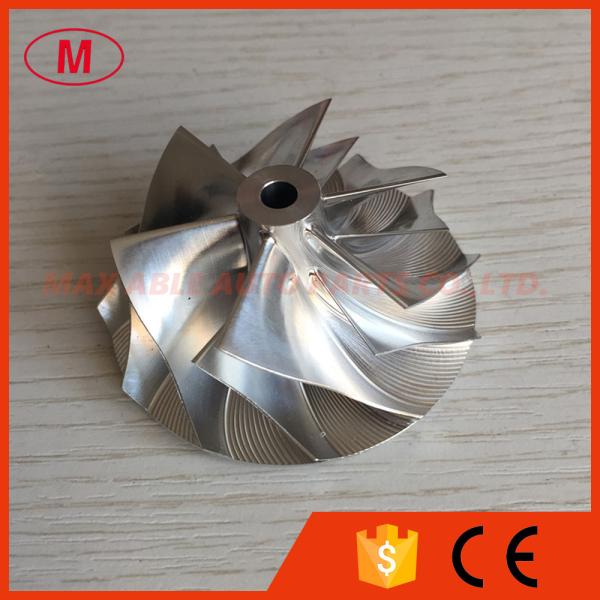

1. MODEL:TD04HL 20T forward
2.TD04HL 20T 49189-X 47.04/58.00mm 6+6 blades Turbocharger Billet/milling/aluminum 2618 compressor wheel for 49189-07220
3.Size:
Nose Diameter:11.37mm
Inducer:47.04mm
exducer:58.00mm
Tapered tip exducer:60.37mm
Tip height:4.65mm
Superback:1.90mm
bore size :5.00mm
bore type:through
Overall height:26.13mm
Trailing Angle:60
Cutback:0.0
SP Height angle:-3.00
Blades height:22.10mm
Splitter height:14.90mm
6+6 blades
forward rotation
Tapered tip angle:18 degree
Fits OE Compressor Housing
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheels have been balanced.

Skype: maxabledieselparts

Wechat/Whatsapp:+86-18018657719

TD04HL 20T 49189-X 47.04/58.00mm 6+6 blades Turbocharger Milling/aluminum 2618/billet comp

TD04HL 20T 49189-X 47.04/58.00mm 6+6 blades Turbocharger Milling/aluminum 2618/billet compTD04HL 20T 49189-X 47.04/58.00mm 6+6 blades Turbocharger Milling/aluminum 2618/billet compTD04HL 20T 49189-X 47.04/58.00mm 6+6 blades Turbocharger Milling/aluminum 2618/billet comp
