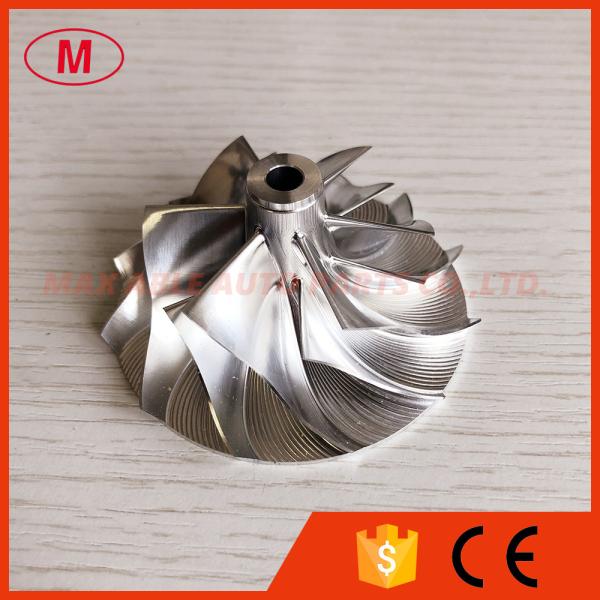

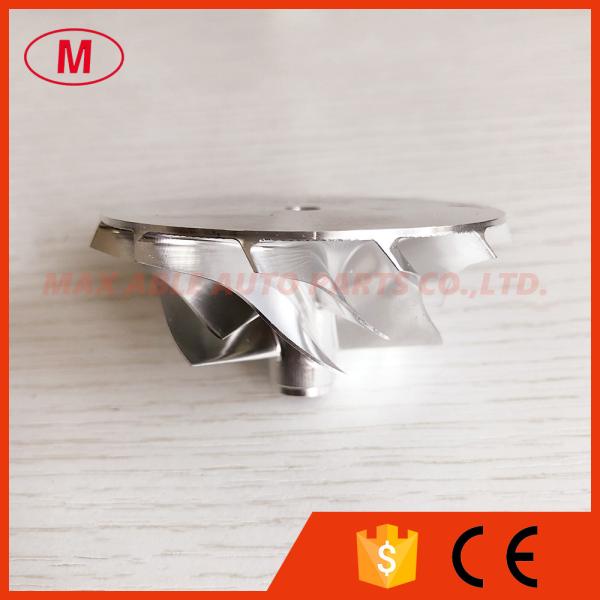

K16 45.78/61.98mm 6+6 blades turbo milling/aluminum 2618/Billet compressor wheel
K16 45.78/61.98mm 6+6 blades turbo milling/aluminum 2618/Billet compressor wheel
K16 45.78/61.98mm 6+6 blades turbo milling/aluminum 2618/Billet compressor wheel
K16 45.78/61.98mm 6+6 blades turbo milling/aluminum 2618/Billet compressor wheel
K16 45.78/61.98mm 6+6 blades turbo milling/aluminum 2618/Billet compressor wheel
K16 45.78/61.98mm 6+6 blades turbo milling/aluminum 2618/Billet compressor wheel
K16 45.78/61.98mm 6+6 blades turbo milling/aluminum 2618/Billet compressor wheel
K16 45.78/61.98mm 6+6 blades turbo milling/aluminum 2618/Billet compressor wheel
Specifications
Place of Origin :
CHINA
Brand Name :
NO
Certification :
ISO
Model Number :
K16
MOQ :
1PCS
Packaging Details :
neutral packing
Delivery Time :
3-7 days
Payment Terms :
TT ,western union ,paypal
Supply Ability :
1000
Description

1. MODEL:K16 forward

2.K16 45.78/61.98mm 6+6 blades turbo milling/aluminum 2618/Billet compressor wheel

3.Size:

Nose diameter:11.70mm

inducer:45.78mm

Exduder:61.98mm

Tapered tip exducer:65.57mm

Tip height:4.63mm

Superback:0.00mm

Overall height:29.70mm

bore size :5.41mm

Trailing Angle:60

Cutback:8.00

SP height angle:-6.00

Blade height:23.25mm

Splitter height:16.15mm

6+6 blades

Forward rotation

It is custom size ,please check carefully before buying.

Tapered tip angle:27 degree

4.High quality and competitive price.

5.if you want more details, please send email to me.

We can produce as your requirement.

The more models we also have.
