TD04HL 19T 46.02/58.00mm 9+0 blades 49189-X high performance point milling turbo milling/aluminum 2618/billet compressor
TD04HL 19T 46.02/58.00mm 9+0 blades 49189-X high performance point milling turbo milling/aluminum 2618/billet compressor
TD04HL 19T 46.02/58.00mm 9+0 blades 49189-X high performance point milling turbo milling/aluminum 2618/billet compressor
TD04HL 19T 46.02/58.00mm 9+0 blades 49189-X high performance point milling turbo milling/aluminum 2618/billet compressor
TD04HL 19T 46.02/58.00mm 9+0 blades 49189-X high performance point milling turbo milling/aluminum 2618/billet compressor
TD04HL 19T 46.02/58.00mm 9+0 blades 49189-X high performance point milling turbo milling/aluminum 2618/billet compressor
TD04HL 19T 46.02/58.00mm 9+0 blades 49189-X high performance point milling turbo milling/aluminum 2618/billet compressor
TD04HL 19T 46.02/58.00mm 9+0 blades 49189-X high performance point milling turbo milling/aluminum 2618/billet compressor
Specifications
Place of Origin :
CHINA
Brand Name :
NO
Model Number :
TD04HL
MOQ :
10pcs
Packaging Details :
neutral packing
Delivery Time :
3-7 days
Payment Terms :
TT/western union/paypal
Supply Ability :
1000
Description

1. MODEL:TD04HL 19T forward

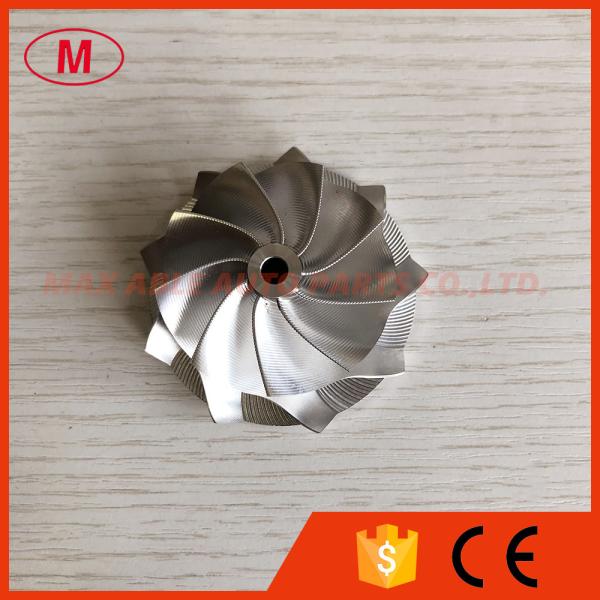

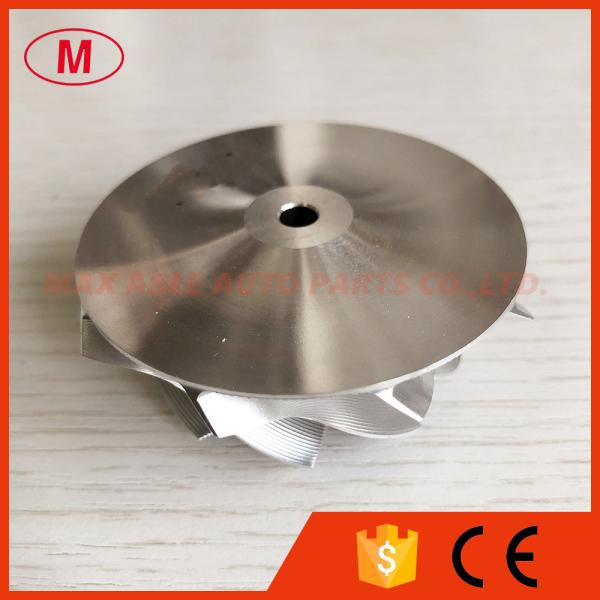

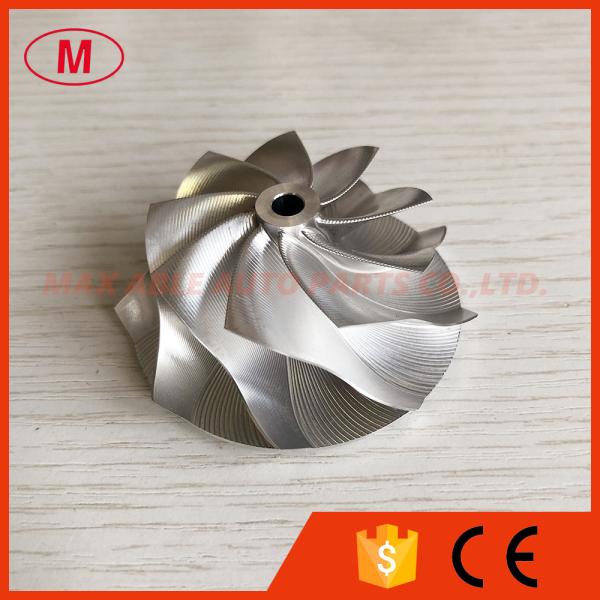

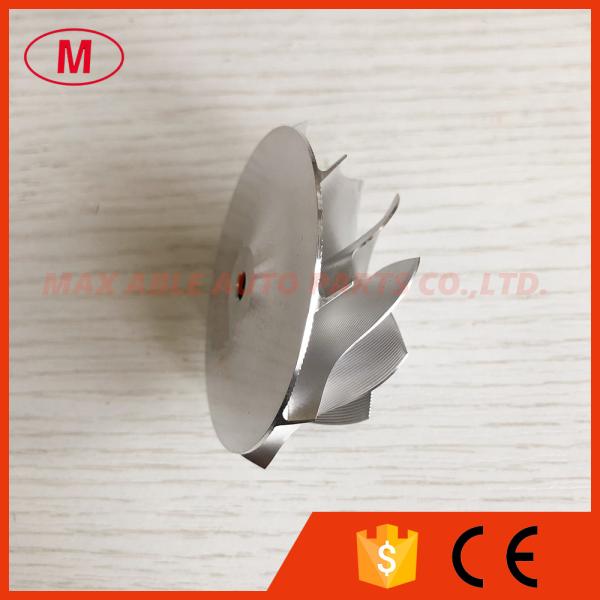

2.TD04HL 19T 46.02/58.00mm 9+0 blades 49189-X high performance point milling turbo milling/aluminum 2618/billet compressor wheel

3.Size:

Nose diameter:10.10mm

Inducer:46.02mm

Exducer:58.00mm

Tapered tip exducer:62.58mm

Tip height:4.97mm

Superback:1.90mm

Overall height:26.13mm

Bore size:5.00mm

bore type:through

Trailing angle:60

Cutback:6.0

SP Height angle:0.00

Blades height:22.74mm

Splitter height:0.00

9+0 blades

Forward rotation

Tapered tip angle:30 degree

It is custom size ,please check carefully before buying.

4.High quality and competitive price.

5.Any questions please send email to me.

6.Application:

7.All the compressor wheel have been balanced.

Skype: maxabledieselparts

Wechat/Whatsapp:+86-18018657719

TD04HL 19T 46.02/58.00mm 9+0 blades 49189-X high performance point milling turbo milling/aluminum 2618/billet compressor

TD04HL 19T 46.02/58.00mm 9+0 blades 49189-X high performance point milling turbo milling/aluminum 2618/billet compressorTD04HL 19T 46.02/58.00mm 9+0 blades 49189-X high performance point milling turbo milling/aluminum 2618/billet compressorTD04HL 19T 46.02/58.00mm 9+0 blades 49189-X high performance point milling turbo milling/aluminum 2618/billet compressorTD04HL 19T 46.02/58.00mm 9+0 blades 49189-X high performance point milling turbo milling/aluminum 2618/billet compressor
