Large Diameter Geosynthetic Tubes 4M Geotubes For Coastal Protection For Embankment
Large Diameter Geosynthetic Tubes 4M Geotubes For Coastal Protection For Embankment
Large Diameter Geosynthetic Tubes 4M Geotubes For Coastal Protection For Embankment
Large Diameter Geosynthetic Tubes 4M Geotubes For Coastal Protection For Embankment
Large Diameter Geosynthetic Tubes 4M Geotubes For Coastal Protection For Embankment
Large Diameter Geosynthetic Tubes 4M Geotubes For Coastal Protection For Embankment
Large Diameter Geosynthetic Tubes 4M Geotubes For Coastal Protection For Embankment
Large Diameter Geosynthetic Tubes 4M Geotubes For Coastal Protection For Embankment
Specifications
Type :
Large Diameter Geotextile Tube
Seam Strength :
≥70 kN/m
Color :
Black
Delivery Time :
5 days
Length :
Customizable
MOQ :
1000pcs
Payment Terms :
T/T
Diameter :
3–10 m (Customizable)
Place of Origin :
China
Supply Ability :
9999999㎡/MONTH
Material :
Polypropylene (PP) Woven Monofilament
Tensile Strength :
≥95 kN/m

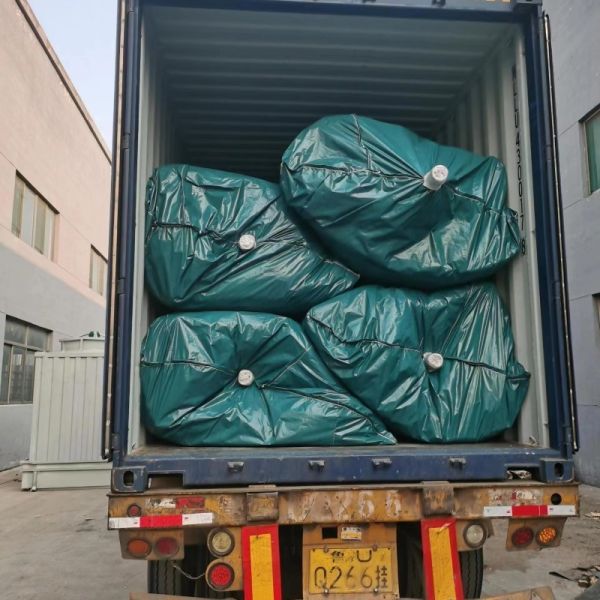

Packaging Details :
Woven fabric packaging
Elongation :
≤15%
Brand Name :
YPEP
Description
Large Diameter Geotextile Tubes High Load Capacity for Embankment Reinforcement Coastal Defense
Product Description

Large diameter geotextile tubes are engineered for high-load coastal and embankment applications where structural stability is critical. Manufactured from high-strength polypropylene woven fabric, these tubes provide excellent tensile performance with low elongation, ensuring dimensional stability during filling and long-term service.

Once filled with sand or dredged materials, the tubes form a stable structure that can be used as a core component for embankment reinforcement or coastal barriers. Compared to traditional rock revetments, geotextile tubes offer faster installation, lower transportation costs, and reduced environmental impact.

The advanced weaving structure allows efficient water discharge while retaining fine particles, making the system both functional and durable. High UV resistance ensures long-term performance even under continuous exposure.

Technical Specifications
Property Unit Value
Tensile Strength (MD/CD) kN/m ≥95
Elongation % ≤15
Seam Strength kN/m ≥70
CBR Puncture kN ≥10
Permeability L/m²/s ≥20
Opening Size (AOS) mm 0.40
UV Resistance % ≥80
Large Diameter Geosynthetic Tubes 4M Geotubes For Coastal Protection For EmbankmentLarge Diameter Geosynthetic Tubes 4M Geotubes For Coastal Protection For EmbankmentLarge Diameter Geosynthetic Tubes 4M Geotubes For Coastal Protection For Embankment
Applications

Coastal defense structures

Embankment reinforcement

Breakwaters

Artificial island foundations

Why Choose Us

Custom large-size production capability

High structural reliability

Proven coastal engineering experience

Strict quality inspection system
