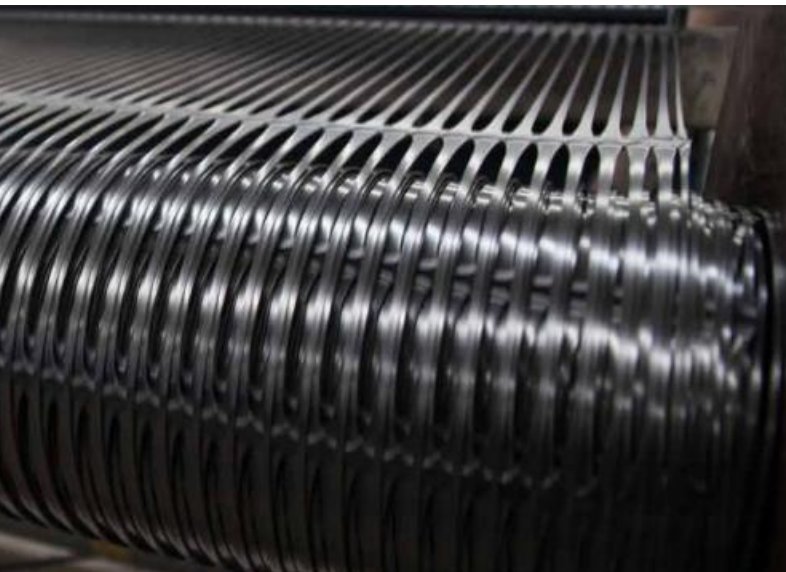

Highways Railways Uniaxial Geogrid 56KN/M Geocomposite Liner
Highways Railways Uniaxial Geogrid 56KN/M Geocomposite Liner
Highways Railways Uniaxial Geogrid 56KN/M Geocomposite Liner
Highways Railways Uniaxial Geogrid 56KN/M Geocomposite Liner
Highways Railways Uniaxial Geogrid 56KN/M Geocomposite Liner
Highways Railways Uniaxial Geogrid 56KN/M Geocomposite Liner
Specifications
Place of Origin :
China
MOQ :
1000pcs
Supply Ability :
9999999㎡/MONTH
Certification :
ISO9001
Brand Name :
YPEP
Delivery Time :
5 days
Payment Terms :
T/T
Packaging Details :
Woven fabric packaging
Description

RoadReinforcement tunnels railways Uniaxial High Strength Uniaxial Plastic Geogrid

Product Description

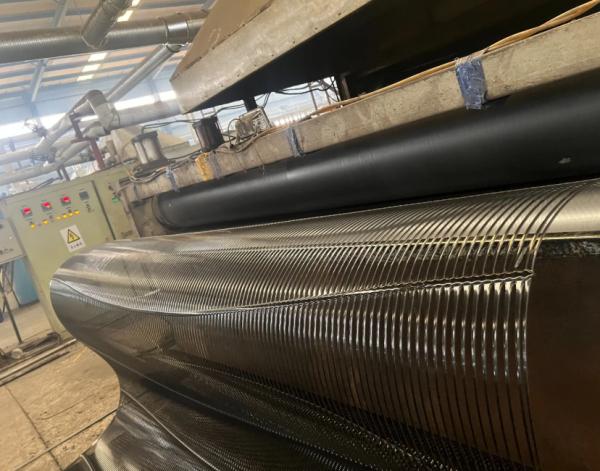

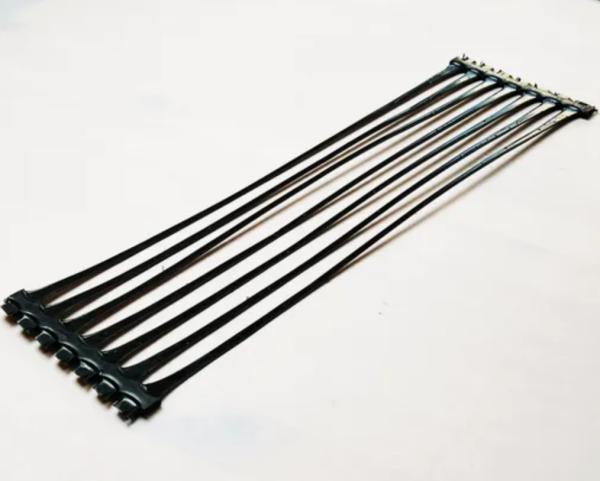

Uniaxial Plastic Geogrid is a three-dimensional grid geotechnical material with a certain height, has two-dimensional networking structure. It is made of polymer materials, such as polypropylene, polyvinyl chloride and other high molecular polymers.

Product Application

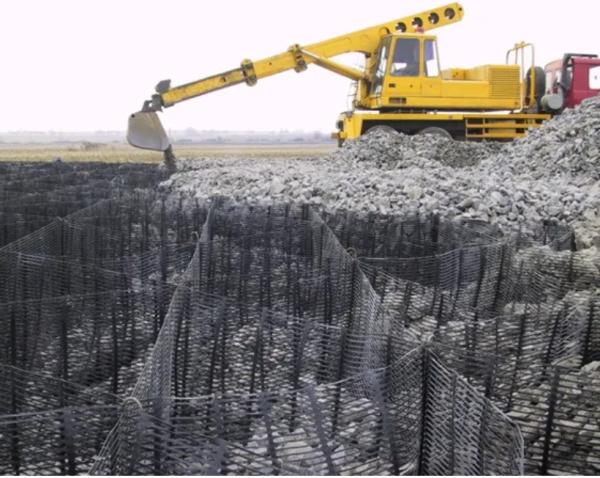

Widely used in dams, tunnels, docks, highways, railways, construction and other fields

Product Features

1. Strengthen the roadbed, effectively distribute the diffusion load, improve the stability and bearing capacity of the roadbed, extend the service life;

2. Can withstand greater alternating loads;

3. Prevent the deformation and cracking of the roadbed caused by the loss of roadbed materials;

4. Applicable to all kinds of soil, no need to take materials off-site, saving labor and time;

5. Simple and fast construction, can greatly reduce construction costs.

Unix ial Plastic Geogrid GB/T17689-2008

Technical Parameters of Polypropylene (PP) Uniaxial Plastic Geogrid

Specification

Tensile Strength (KN/m)

MD & CMD Tensile Strength at 2%

Elongation (KN/m)

MD & CMD Tensile Strength at 5%

Elongation (KN/m)

Nominal Elongation (%)

TGDG3 5

≥35.0

≥ 10.0

≥22.0

≤ 10.0

TGDG5 0

≥ 50.0

≥ 12.0

≥28.0

TGDG80

≥80.0

≥26.0

≥48.0

TGDG120

≥ 120.0

≥36.0

≥72.0

TGDG16 0

≥ 160.0

≥45.0

≥90.0

TGDG200

≥200.0

≥ 56.0

≥ 112.0

HDPE UniaxialPlastic Geogrid

Specification

Tensile Strength (KN/m)

Tensile Strength at 2%

Elongation (KN/m)

Tensile Strength at 5%

Elongation (KN/m)

Nominal Elongation (%)

TGDG3 5

≥35.0

≥7.5

≥21.5

≤ 11.5

TGDG5 0

≥ 50.0

≥ 12.0

≥23.0

TGDG80

≥80.0

≥21.0

≥40.0

TGDG120

≥ 120.0

≥33.0

≥65.0

TGDG16 0

≥ 160.0

≥47.0

≥93..0
