High Strength Woven Geotextile Bag 90kN/M Synthetic Fiber Geotextile Dewatering Bags
High Strength Woven Geotextile Bag 90kN/M Synthetic Fiber Geotextile Dewatering Bags
High Strength Woven Geotextile Bag 90kN/M Synthetic Fiber Geotextile Dewatering Bags
High Strength Woven Geotextile Bag 90kN/M Synthetic Fiber Geotextile Dewatering Bags
High Strength Woven Geotextile Bag 90kN/M Synthetic Fiber Geotextile Dewatering Bags
High Strength Woven Geotextile Bag 90kN/M Synthetic Fiber Geotextile Dewatering Bags
Specifications
Supply Ability :
9999999㎡/MONTH
Certification :
ISO9001
Brand Name :
YPEP
Packaging Details :
Woven fabric packaging
Payment Terms :
T/T
Place of Origin :
China
MOQ :
1000pcs
Delivery Time :
5 days
Description
High strength woven geotextile bags made of synthetic fiber filaments such as polypropylene nylon and polyester
Product Description

High strength machine weaving geotextile mold bag uses high strength and low extension polypropylene, nylon and polyester as raw materials, choose mortar and concrete as backfill, mold bag concrete can reach 12 cm to 50 cm and other thickness, high tensile strength, good top breaking resistance, chemical corrosion resistance.

Product Features
  1. High strength, good integrity, can be made into different sizes of thickness according to the requirements of the project.
  2. When pouring is flexible, it is close to the ground after forming and is suitable for complex terrain.
  3. It can be constructed underwater without cofferdam or flow break.
  4. High degree of construction mechanization. Fast progress, short construction period.
  5. Low project maintenance cost and good comprehensive benefit.
Product Application

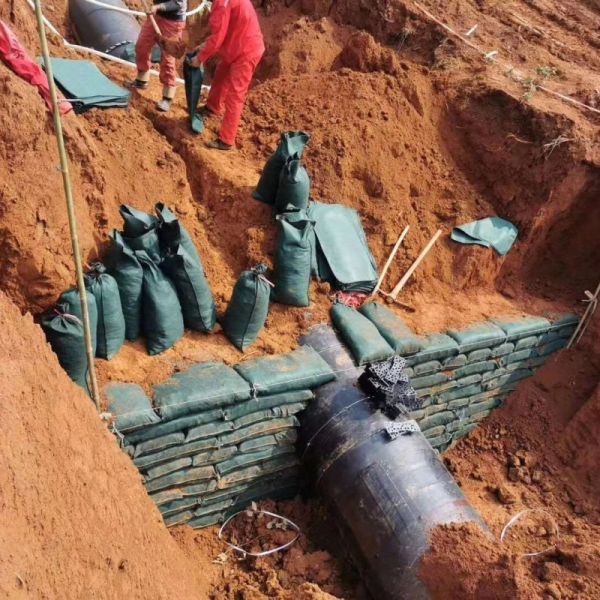

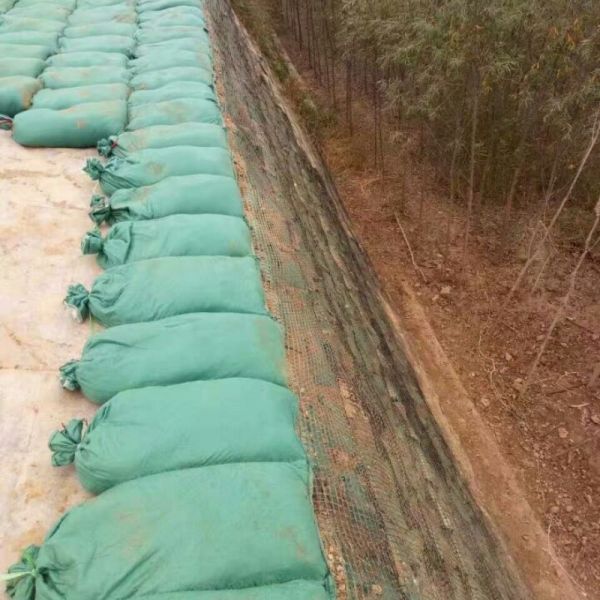

Geotextile bag are widely used in water conservancy, transportation, construction, energy, industry and other fields and slope protection, flood control, emergency rescue, water canal, waste treatment, construction of port, river, river, sea, lake Slope protection, reservoir, dam flushing prevention, anti-cleaning brush, hillside greening and hillside reinforcement and other projects

Geotextile bag Technical Datum
Mechanical Properties
Grammage ASTMD5261 g/m2 ≥650
Tensile Strength MD ASTMD4595 kN/m ≥90
2% Tensile Strength MD ASTMD4595 kN/m ≥15
5% Tensile Strength MD ASTMD4595 kN/m ≥37
Tensile Strength CD ASTMD4595 kN/m ≥90
2% Tensile Strength CD ASTMD4595 kN/m ≥23
5% Tensile Strength CD ASTMD4595 kN/m ≥50
Break Elongation MD/CD ASTMD4595 % ≤15/ 12
CBR Bursting Strength ASTMD6241 kN ≥8.5
Dynamic drop-cone fracture diameter EN918 mm ≤11
Seaming Strength CD ASTMD4595 kN/m ≥160
Durable performance
Anti-wear ASTMD4886 % ≥80
Anti-UV(500H) ASTMD4355 % ≥90
Hydraulic Performance
Equivalent opening size O90 ASTMD4751 mm ≤0.425
Seepage coefficient Q50 ASTMD4491 L/m2/s

≥25
