HDPE Plastic Drainage Ditch Geocomposite Drainage Material For Retaining Wall And Railway Drainage
HDPE Plastic Drainage Ditch Geocomposite Drainage Material For Retaining Wall And Railway Drainage
HDPE Plastic Drainage Ditch Geocomposite Drainage Material For Retaining Wall And Railway Drainage
HDPE Plastic Drainage Ditch Geocomposite Drainage Material For Retaining Wall And Railway Drainage
HDPE Plastic Drainage Ditch Geocomposite Drainage Material For Retaining Wall And Railway Drainage
HDPE Plastic Drainage Ditch Geocomposite Drainage Material For Retaining Wall And Railway Drainage
Specifications
Filter Material :
Nonwoven Geotextile
Installation :
Buried Drainage System
Material :
HDPE Resin
Packaging Details :
Woven fabric packaging
Application :
Tunnel Highway Railway
Brand Name :
YPEP
MOQ :
1000pcs
Product Name :
Plastic Drainage Ditch
Drainage Capacity :
High Flow
Payment Terms :
T/T
Place of Origin :
China
Shape :
Circular Rectangular
Delivery Time :
5 DAYS
Core Type :
Three Dimensional Mesh
Description
Product Introduction

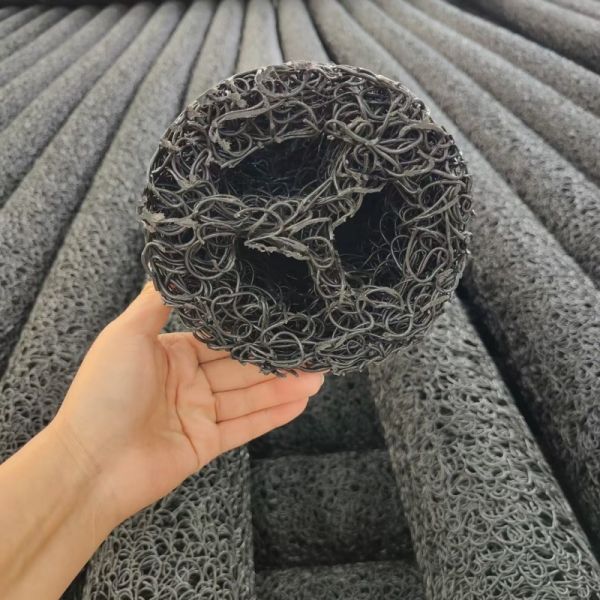

Plastic Drainage Ditch is an advanced drainage material specially designed for underground water management in civil engineering and infrastructure projects. The product uses modified HDPE resin as the primary raw material and adopts thermal extrusion technology to form a stable three-dimensional drainage structure.

The plastic core is wrapped with permeable geotextile filter fabric, which prevents sediment intrusion while ensuring efficient water discharge. Compared with traditional gravel drainage trenches, Plastic Drainage Ditch offers higher drainage efficiency, lower labor costs and faster construction speed.

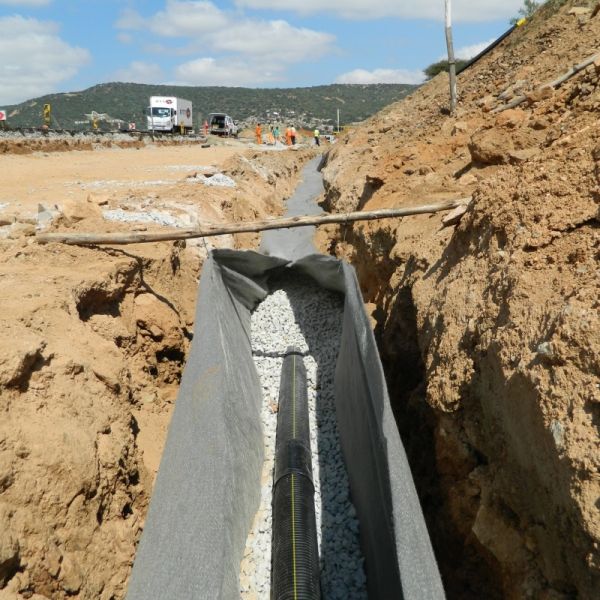

This product is especially suitable for retaining wall drainage, tunnel engineering, railway foundations, highways, airport runways and landfill projects. The lightweight and flexible structure allows easy installation even in soft soil areas.

The drainage ditch can effectively reduce hydrostatic pressure inside the soil structure, helping improve engineering stability and extending the service life of the project.

Product Technical Data
Specification Shape Weight g/m Porosity % Hollow Dimension Compression Resistance
MF7030 Rectangle 350 ≥82 40*10 Strong
MF1235 Rectangle 600 ≥82 40*20*2 Strong
MF1550 Rectangle 750 ≥85 40*20*2 High
MY60 Circular 400 ≥82 Φ25 Strong
MY100 Circular 1000 ≥84 Φ55 High
MY150 Circular 1800 ≥85 Φ80 Excellent
Drainage Performance Table
Test Item Value
Water Permeability Excellent
Soil Filtration Stable
Corrosion Resistance Strong
Chemical Resistance Excellent
UV Stability Good
Flexibility High
Compression Recovery Strong
Service Life More Than 50 Years
HDPE Plastic Drainage Ditch Geocomposite Drainage Material For Retaining Wall And Railway Drainage HDPE Plastic Drainage Ditch Geocomposite Drainage Material For Retaining Wall And Railway Drainage
Why Customers Choose Us
  • Professional geosynthetics manufacturer
  • Complete export experience
  • Custom production available
  • Stable product quality
  • Strict technical standards
  • Fast delivery schedule
  • Large production capacity
  • Technical guidance support
FAQ
Can Plastic Drainage Ditch be installed in soft soil

Yes. The flexible structure performs well in soft ground and uneven settlement conditions.

What is the advantage compared with stone drainage

It is lighter, easier to install, more efficient and requires less labor.

Is the product environmentally friendly

Yes. HDPE materials are durable and suitable for long-term underground use.

Can the size be customized

Yes. Different widths, diameters and filter fabrics can be customized.

What projects commonly use this product

Roads, tunnels, retaining walls, landfills, sports fields and municipal drainage systems commonly use Plastic Drainage Ditch.
