Flexible Plastic Drainage Ditch High Compression Resistance Drainage System For Tunnel And Landfill Engineering
Flexible Plastic Drainage Ditch High Compression Resistance Drainage System For Tunnel And Landfill Engineering
Flexible Plastic Drainage Ditch High Compression Resistance Drainage System For Tunnel And Landfill Engineering
Flexible Plastic Drainage Ditch High Compression Resistance Drainage System For Tunnel And Landfill Engineering
Flexible Plastic Drainage Ditch High Compression Resistance Drainage System For Tunnel And Landfill Engineering
Flexible Plastic Drainage Ditch High Compression Resistance Drainage System For Tunnel And Landfill Engineering
Specifications
Delivery Time :
5 DAYS
MOQ :
1000pcs
Payment Terms :
T/T
Filter Fabric :
Needle Punched Nonwoven Geotextile
Packaging Details :
Woven fabric packaging
Material :
HDPE Modified Resin
Brand Name :
YPEP
Product Name :
Plastic Drainage Ditch
Installation Area :
Underground Drainage System
Place of Origin :
China
Alternative Name :
Plastic Blind Ditch
Drainage Type :
Horizontal And Vertical Drainage
Service Life :
Long Term Underground Use
Structure :
Three Dimensional Network Core
Description
Product Introduction

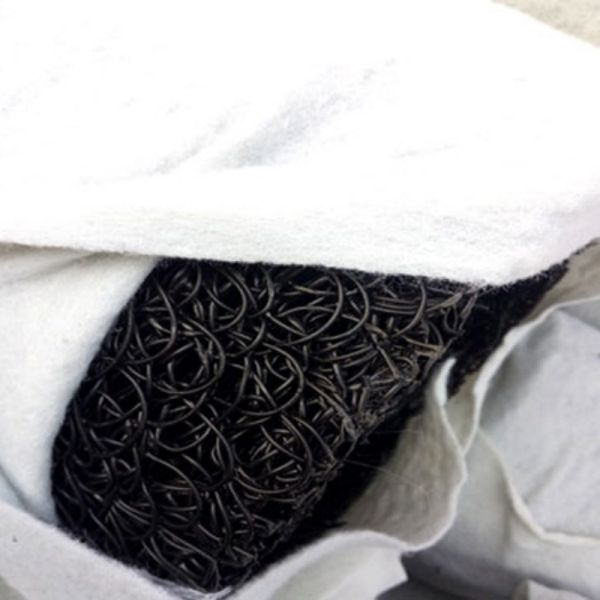

Plastic Drainage Ditch is a highly efficient subsurface drainage material engineered for modern geotechnical and civil engineering projects. The product consists of a thermoplastic three-dimensional core wrapped with permeable geotextile fabric. The drainage core forms interconnected channels that rapidly collect and discharge underground water while preventing clogging caused by soil particles.

Unlike traditional gravel blind drains, Plastic Drainage Ditch combines filtration, drainage and protection into one integrated product. The lightweight structure makes transportation and installation more efficient, especially in large-scale construction projects such as highways, railways, tunnels and landfills.

The internal mesh core is produced using hot-melt extrusion technology and forms a durable spatial network with excellent compression resistance. Even under continuous soil pressure, the drainage channel remains stable and maintains long-term water flow performance.

The product is available in circular and rectangular forms, allowing engineers to select the proper configuration according to drainage capacity and project conditions.

Engineering Parameter Table
Type Dimension Weight g/m Hollow Space Porosity Water Collection
MF703070*30mm≥35040*10mm≥82%Excellent
MF1235120*35mm≥60040*20*2mm≥82%Excellent
MF1435140*35mm≥65040*20*2mm≥82%Strong
MY60Φ60mm≥400Φ25mm≥82%Stable
MY80Φ80mm≥750Φ45mm≥82%Strong
MY200Φ200mm≥2900Φ120mm≥85%High Capacity
Compression Resistance Table
Model 5% Flat Rate 10% Flat Rate 15% Flat Rate 20% Flat Rate
MY60≥80≥160≥200≥250
MY80≥85≥170≥220≥280
MY100≥80≥140≥180≥220
MY150≥40≥75≥100≥125
MY200≥50≥70≥90≥120

Flexible Plastic Drainage Ditch High Compression Resistance Drainage System For Tunnel And Landfill EngineeringFlexible Plastic Drainage Ditch High Compression Resistance Drainage System For Tunnel And Landfill Engineering

Why Choose Our Plastic Drainage Ditch
  • We provide professional drainage solutions for international infrastructure projects.
  • Factory direct manufacturing
  • Strict QC inspection procedures
  • Customized dimensions available
  • Stable drainage performance
  • Support for OEM branding
  • Fast export packaging service
  • Experienced overseas project support
  • Competitive pricing for bulk orders
FAQ
Is Plastic Drainage Ditch resistant to soil pressure

Yes. The three-dimensional network core provides excellent compression resistance and maintains stable drainage channels.

Can the product be used in tunnel engineering

Yes. It is widely used for tunnel lining drainage and groundwater discharge systems.

Does the geotextile layer prevent clogging

Yes. The outer geotextile effectively filters soil particles while allowing water penetration.

What shapes are available

Rectangular and circular structures are commonly available depending on project requirements.

Is customized packaging supported

Yes. We can provide customized rolls, labels and export packaging for distributors and contractors.
