Blister Cartoning Machine Automatic Carton Packing Machine
Blister Cartoning Machine Automatic Carton Packing Machine
Blister Cartoning Machine Automatic Carton Packing Machine
Blister Cartoning Machine Automatic Carton Packing Machine
Blister Cartoning Machine Automatic Carton Packing Machine
Blister Cartoning Machine Automatic Carton Packing Machine
Blister Cartoning Machine Automatic Carton Packing Machine
Blister Cartoning Machine Automatic Carton Packing Machine
Blister Cartoning Machine Automatic Carton Packing Machine
Blister Cartoning Machine Automatic Carton Packing Machine
Blister Cartoning Machine Automatic Carton Packing Machine
Blister Cartoning Machine Automatic Carton Packing Machine
Blister Cartoning Machine Automatic Carton Packing Machine
Blister Cartoning Machine Automatic Carton Packing Machine
Blister Cartoning Machine Automatic Carton Packing Machine
Blister Cartoning Machine Automatic Carton Packing Machine
Specifications
Model Number :
WZTS-130
Packaging Detail :
Normal Export Wooden Case
Payment Terms :
T/T
Packaging Material :
Paper
Machine Weight :
1400kg
Price :
Negotiable
Driven Type :
Electric
Supply Ability :
It depends.
Application :
Food, Beverage, Commodity, Medical, Chemical,
Applicable Industries :
Manufacturing Plant, Food & Beverage Factory
MOQ :
1 SET
Delivery Time :
It depends.
Power Supply :
220V/380V, 50Hz/60Hz
Function :
High Efficiency
Place of Origin :
China
Orgin :
Zhejiang,China
Packaging Details :
Seaworthy wooden cases
Working Noise :
<75dB
Certification :
CE
Brand Name :
TRUSTAR/HIJ
Features :
Automatic carton forming, opening, filling, sealing, and batch number printing
Output :
Max.80 boxes/min
Automatic Grade :
Automatic
Description

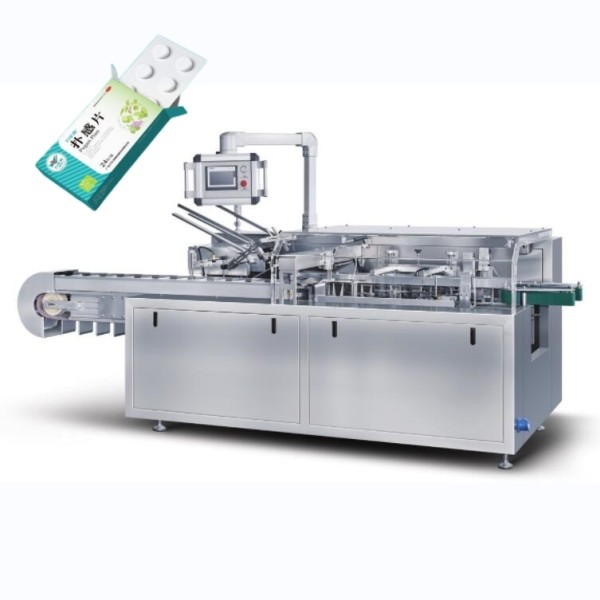

Automatic Blister Cartoning Machine
Horizontal automatic cartoning machine designed for high-efficiency packaging of cosmetic tubes, bottles, jars, and pharmaceutical blister packaging with integrated electrical, pneumatic, and mechanical systems.
Product Specifications
AttributeValue
ApplicationFood, Beverage, Commodity, Medical, Chemical
Packaging MaterialPaper
Driven TypeElectric
Applicable IndustriesManufacturing Plant, Food & Beverage Factory
Machine Weight1400kg
Power Supply220V/380V, 50Hz/60Hz
OutputMax. 80 boxes/min
Automatic GradeAutomatic
Blister Cartoning Machine Automatic Carton Packing Machine
Key Applications
Ideal for pharmaceutical, food, cosmetics, and auto parts industries. Efficiently packages blisters, bottles, jars, sachets, bags, plastic tubes, aluminum tubes, and other products into cartons.
Advanced Features
  • PLC control system with international brand components
  • User-friendly HMI touch screen interface
  • Automatic overload protection and fault detection
  • Quality control with automatic rejection of incomplete cartons
  • Real-time error display and production counting
  • Batch number printing capability
  • Mechanical or hot melt glue sealing options
Technical Parameters
ParameterSpecification
Cartoning Speed65 cartons/min (synchronized with tube filling machine)
Carton Requirements250-350g/㎡ (varies by carton size)
Dimension Range (L*W*H)(100-185)mm * (30-70)mm * (25-45)mm
Leaflet Requirements60-70 g/㎡
Unfolded Size Range (L*W)(80-250)mm * (90-170)mm
Folding Range1-4 folds
Compressed Air≥0.6mpa working pressure, 120-160L/min consumption
Power Supply380V 50HZ
Main Motor Power1.5kw
Machine Dimensions (L*W*H)3100mm * 1100mm * 1550mm
Net WeightApprox. 1400kg
Blister Cartoning Machine Automatic Carton Packing Machine
Blister Cartoning Machine Automatic Carton Packing Machine

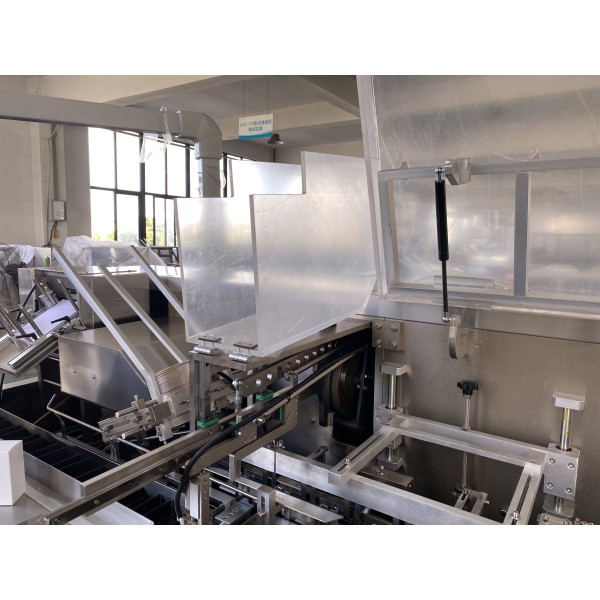

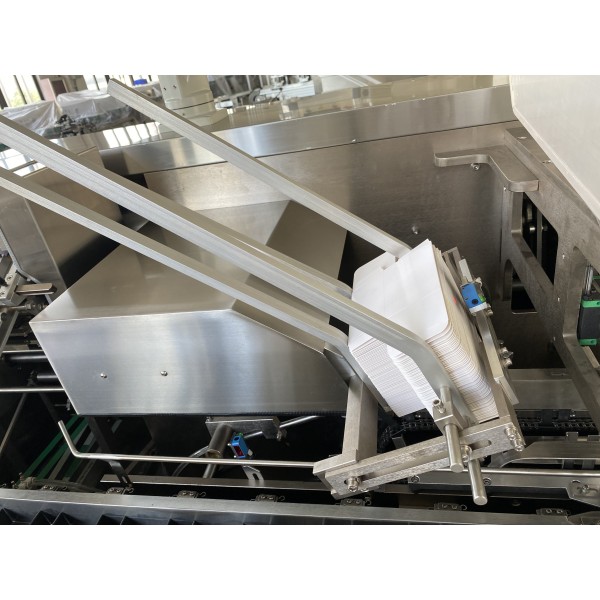

Detailed Machine Photos
Blister Cartoning Machine Automatic Carton Packing Machine
Blister Cartoning Machine Automatic Carton Packing Machine
Blister Cartoning Machine Automatic Carton Packing Machine
Blister Cartoning Machine Automatic Carton Packing Machine
Blister Cartoning Machine Automatic Carton Packing Machine
Frequently Asked Questions
What's the delivery time?
Approximately 30 working days.
How many containers are required for this machine?
We recommend shipping by LCL (Less than Container Load).
Are you a manufacturer?
Yes, we have specialized in packaging machinery manufacturing for over 17 years.
What are your payment terms?
Standard terms are 40% T/T deposit with balance paid before shipping.
What are your advantages?
  • 17 years of machinery manufacturing experience
  • Global customer base
  • CE certified products
  • Responsive customer service
  • Comprehensive after-sales support and spare parts service
