Specifications
Model Number :
WZTS-130
Packaging Detail :
Normal Export Wooden Case
Payment Terms :
T/T
Packaging Material :
Paper
Machine Weight :
1400kg
Price :
Negotiable
Driven Type :
Electric
Supply Ability :
It depends.
Application :
Food, Beverage, Commodity, Medical, Chemical,
Applicable Industries :
Manufacturing Plant, Food & Beverage Factory
MOQ :
1 SET
Delivery Time :
It depends.
Power Supply :
220V/380V, 50Hz/60Hz
Working Noise :
<75dB
Function :
High Efficiency
Place of Origin :
China
Orgin :
Zhejiang,China
Packaging Details :
Seaworthy wooden cases
Certification :
CE
Brand Name :
TRUSTAR/HIJ
Features :
Automatic carton forming, opening, filling, sealing, and batch number printing
Output :
Max.80 boxes/min
Automatic Grade :
Automatic
Description
Automatic Cartoner Paper Folding Box Machine
Horizontal automatic cartoning machine designed for cosmetic tubes, bottles, jars, and pharmaceutical blister packaging with high-efficiency operation.
Product Specifications
Attribute Value
Application Food, Beverage, Commodity, Medical, Chemical
Packaging Material Paper
Driven Type Electric
Applicable Industries Manufacturing Plant, Food & Beverage Factory
Machine Weight 1400kg
Power Supply 220V/380V, 50Hz/60Hz
Output Max. 80 boxes/min
Automatic Grade Automatic

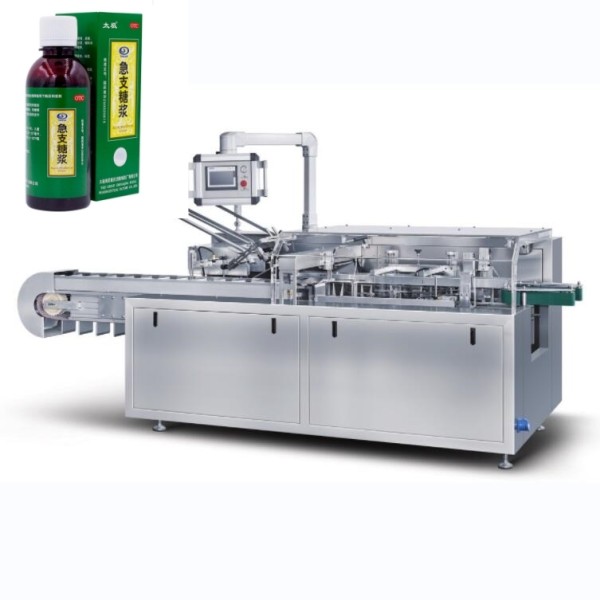

Machine Overview
Automatic Cartoner Paper Folding Box Automatic Cartoning Machine for Cosmetic Tubes Bottles Jars
This horizontal automatic cartoning machine integrates electrical, pneumatic, and mechanical systems for exceptional production efficiency and stability during high-speed operation.
Key Applications
Ideal for pharmaceutical, food, cosmetics, and auto parts industries. Efficiently packages blisters, bottles, jars, sachets, bags, plastic tubes, aluminum tubes, and other products into cartons.
Advanced Features
  • PLC control system with international brand components
  • User-friendly HMI touch screen interface
  • Automatic overload protection and fault detection
  • Quality control with automatic rejection of incomplete cartons
  • Real-time error display and production counting
  • Batch number printing capability
  • Mechanical or hot melt glue sealing options
Technical Parameters
Parameter Specification
Cartoning Speed 65 cartons/min (synchronized with tube filling machine)
Carton Requirements 250-350g/㎡ (varies by carton size)
Dimension Range (L*W*H) (100-185)mm * (30-70)mm * (25-45)mm
Leaflet Requirements 60-70 g/㎡
Unfolded Size Range (L*W) (80-250)mm * (90-170)mm
Folding Range 1-4 folds
Compressed Air ≥0.6mpa working pressure, 120-160L/min consumption
Power Supply 380V 50HZ
Main Motor Power 1.5kw
Machine Dimensions (L*W*H) 3100mm * 1100mm * 1550mm
Net Weight Approx. 1400kg
Automatic Cartoner Paper Folding Box Automatic Cartoning Machine for Cosmetic Tubes Bottles Jars Automatic Cartoner Paper Folding Box Automatic Cartoning Machine for Cosmetic Tubes Bottles Jars

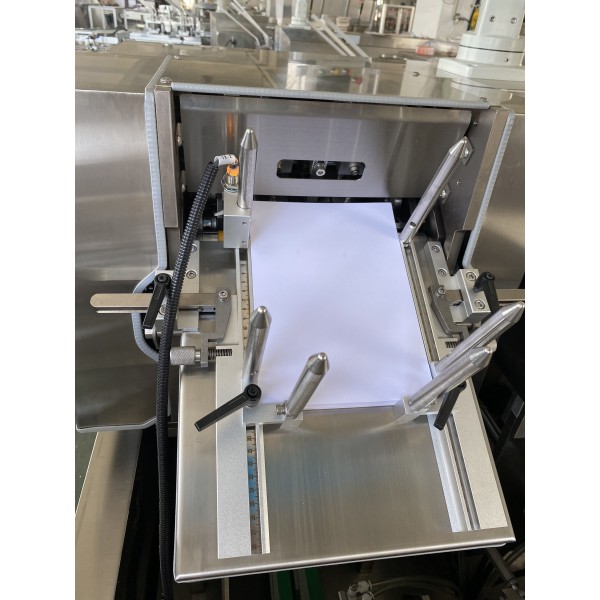

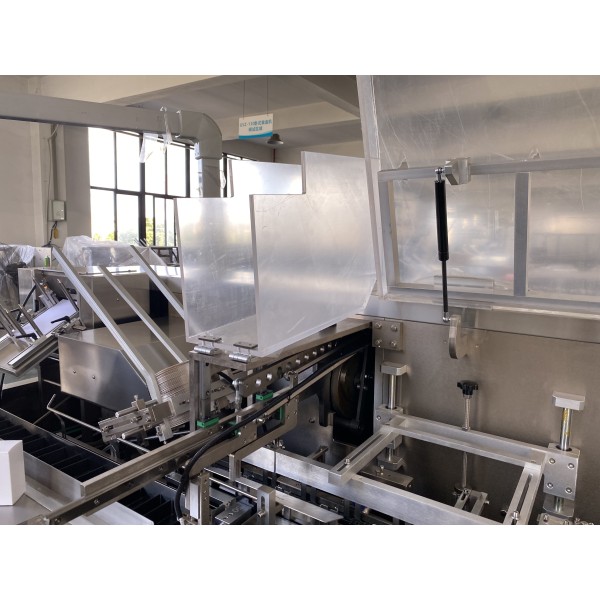

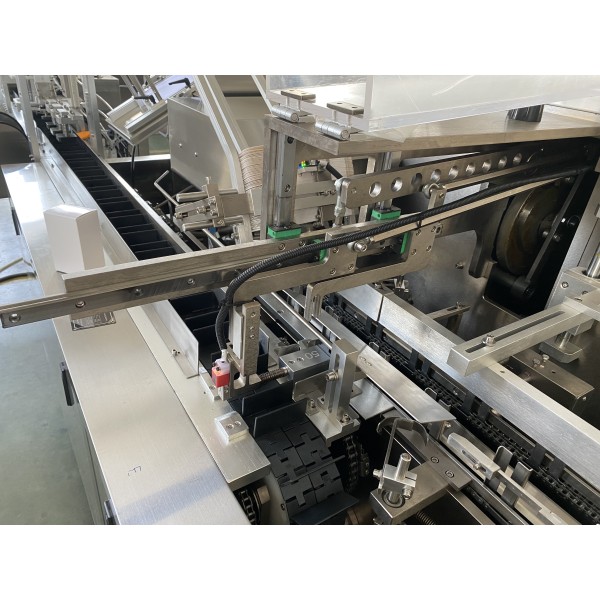

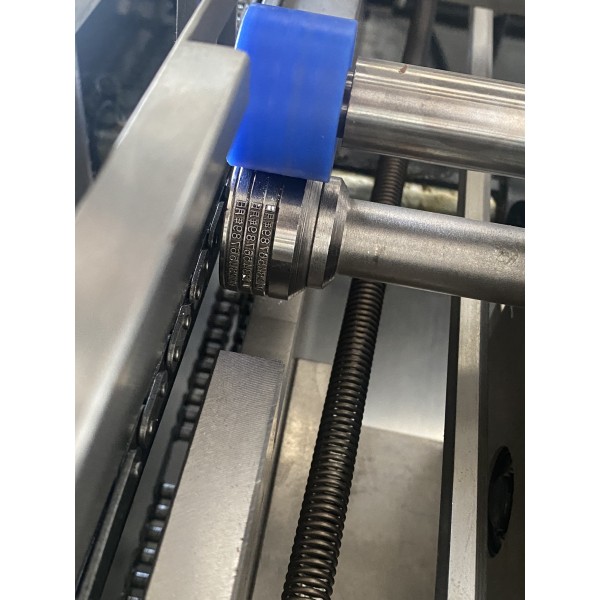

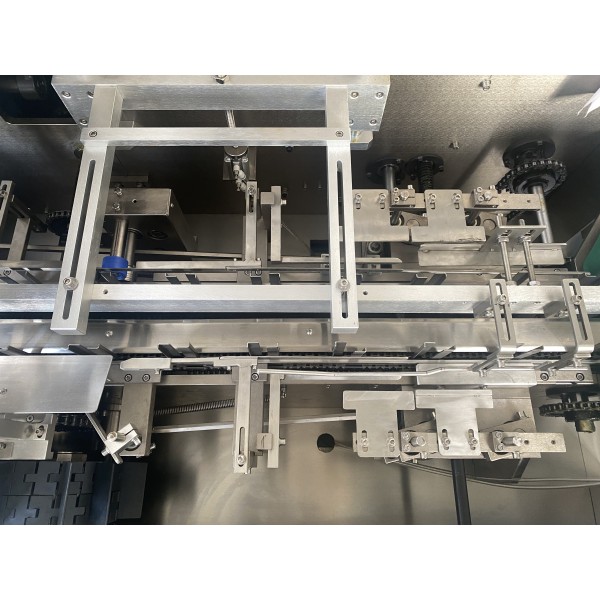

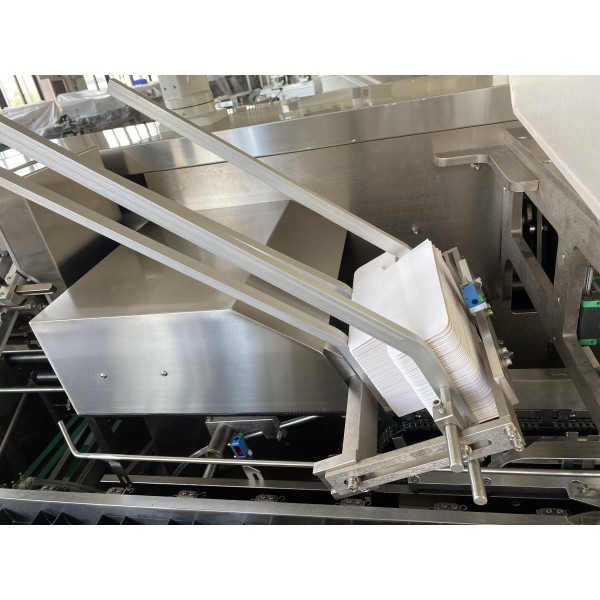

Detailed Machine Photos
Automatic Cartoner Paper Folding Box Automatic Cartoning Machine for Cosmetic Tubes Bottles Jars Automatic Cartoner Paper Folding Box Automatic Cartoning Machine for Cosmetic Tubes Bottles Jars Automatic Cartoner Paper Folding Box Automatic Cartoning Machine for Cosmetic Tubes Bottles Jars Automatic Cartoner Paper Folding Box Automatic Cartoning Machine for Cosmetic Tubes Bottles Jars Automatic Cartoner Paper Folding Box Automatic Cartoning Machine for Cosmetic Tubes Bottles Jars
Frequently Asked Questions
What's the delivery time?
Approximately 30 working days.
How many containers are required for this machine?
We recommend shipping by LCL (Less than Container Load).
Are you a manufacturer?
Yes, we have specialized in packaging machinery manufacturing for over 17 years.
What are your payment terms?
Standard terms are 40% T/T deposit with balance paid before shipping.
What are your advantages?
  • 17 years of machinery manufacturing experience
  • Global customer base
  • CE certified products
  • Responsive customer service
  • Comprehensive after-sales support and spare parts service
