Specifications
Brand Name :
Masing Motor
Model Number :
MS-BL2838
Certification :
16949,RohS,CE,ISO
Place of Origin :
China
MOQ :
1000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000000piece/per month
Delivery Time :
3-5 work weeks
Packaging Details :
Carton box
Product Name :
24v Dc Brushless Motor 10000 Rpm
Shaft type :
Flat ,D-cut or Round ect
Motor size :
φ28mm*L38mm
Bearing type :
Oil bearing or ball bearing
Motor Type :
Brushless Motor
Application :
Smart home, robots, office supplies, power tools, medical equipment, precision instruments, automotive electronics,etc.
Structure :
Built-in drive
Direction of motor :
CW&CCW
Rated Voltage :
6volt -30volt
Function :
Driving effect
Description

24v Dc Brushless Motor 10000 Rpm Title:

28mm 24v Dc Brushless Motor 10000 Rpm For Spin Coater, Vending Machine, Pump BL2838

12volt Brushless Dc Motor Description:

  • Rated Voltage Range:DC 6V-24V

  • Rated speed :1000rpm -10000rpm

  • The motor speed is proportional to the motor voltage

  • Torque :10g.cm-200g.cm

  • The torque of the motor is nronortional to the speed of the motor

  • Motor type :Brushless dc motor

  • Motor default direction:CW&CCW

  • Motor size :φ28mm*L38mm ,diamter 28mm Length 38mm brushless motor

  • Motor shaft :φ2.3mm or others

  • Motor type :Round ,Flat ,D-cut,Threaded shaft ect

  • Bearing type:Oil bearing or ball bearing

  • Motor voltage speed torque eccentric wheel size and material can be customized according to customerrequirements.

  • Customizable: The motor is customizable to meet specific user needs, allowing for adjustments to be made to suit various applications, as requested by the user.

  • Working temperature:-40~+60°c

  • Structure selection:Built-in driver or external driver

  • Please refer to the rated voltage used by our motor,the voltage exceeding the range of use of our voltagemay cause the machine to burn.

  • Applications :Smart home, robots, office supplies, power tools, medical equipment,precision instruments, automotive electronics,etc.

    Toys,Massager ,Robot,Robot Vacuum Cleaner,Car flip screen,Intelligent Trash Can ,Power Tools, Home Application, Personal Care,Car, Electric Bicycle, FAN,, Cosmetic instrument, SMART HOME, Medical Imaging Equipment,

  • We can provide samples for your test.

Key Attributes:

Rated Speed(RPM)
1000rpm-10000rpm
Continuous Current(A)
10mA-500mA
Efficiency
IE3
Warranty
3Months-1Year
Place of Origin
Guangdong, China
Brand Name
Masing Motor
Model Number
MS-BL2838
Use
Smart home, robots, office supplies, power tools, medical equipment,precision instruments, automotive electronics,etc.
Shaft diameter
φ2.3mm
Torque
Customized
Construction
Permanent Magnet
Commutation
BLDC
Protect Feature
Totally Enclosed
Bearing type
Oil bearing or ball bearing
Feature
High Efficiency
Keywords
12volt BLDC Brushless Motor
Motor Diameter
φ28mm
Weight
90g
Noise
≤55DB
MOQ
1000Pcs
Voltage
DC 6volt-24volt
Color
Customer's Request
Motor type
12V brushless motor

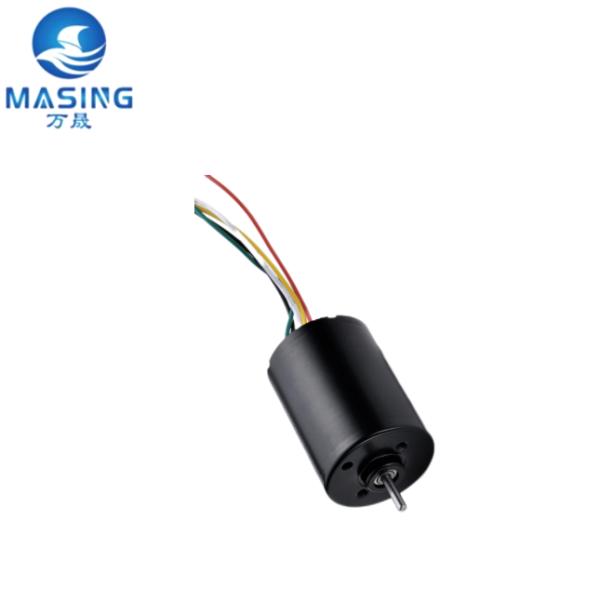

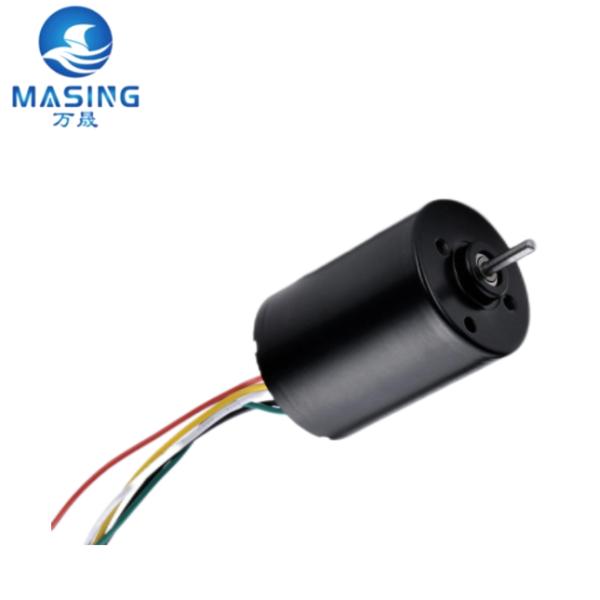

24v Dc Brushless Motor 10000 Rpm Product Photo:

28mm 24v Dc Brushless Motor 10000 Rpm For Spin Coater, Vending Machine, Pump BL283828mm 24v Dc Brushless Motor 10000 Rpm For Spin Coater, Vending Machine, Pump BL2838

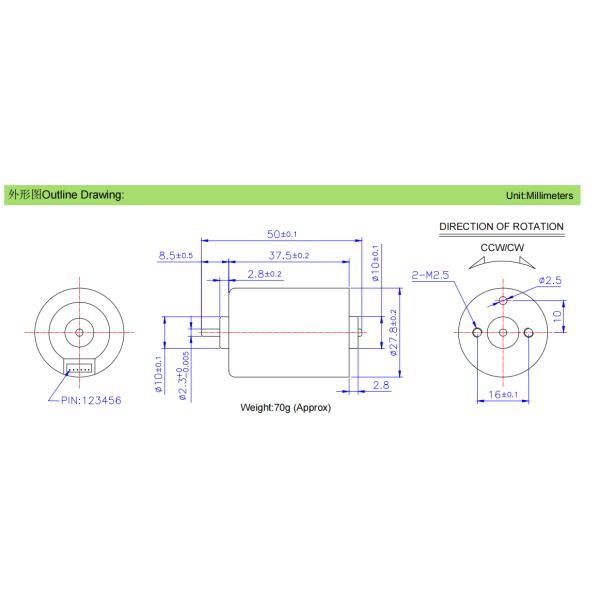

24v Dc Brushless Motor 10000 Rpm Product Spec:

24v Dc Brushless Motor 10000 Rpm ​Typical Applications

● Smart home, robots, office supplies, power tools, medical equipment,precision instruments, automotive electronics,Toys,Massager ,Robot Vacuum Cleaner,Car flip screen,Intelligent Trash Can ,Power Tools, Home Application, Personal Care,Car, Electric Bicycle, FAN,, Cosmetic instrument, SMART HOME, Medical Imaging Equipment,

Voltage,rated torque,speed,curent,power and shaft size can be customizedasrequrement.

28mm 24v Dc Brushless Motor 10000 Rpm For Spin Coater, Vending Machine, Pump BL2838

28mm 24v Dc Brushless Motor 10000 Rpm For Spin Coater, Vending Machine, Pump BL2838

Motor Data:

Motor Model

 Voltage No Load At Maximum Efficiency Stall
Operating Range Rated Current Speed Current Speed

Torque

 Power

Efficiency

 Current

Torque
A rpm A rpm g-cm W % A g-cm
BL2838*** 9~14V 12V 0.04 3550 0.18 2900 50 1.5 71.5 0.8 275
BL2838*** 19~26V 24V 0.10 6400 0.31 4850 104 5.1 67.5 1.0 434

Packaging and delivery:

Packaging Details
Strong Carton 100pcs/box, or as you wish.
Port
Shenzhen/Guangzhou/Shanghai
Selling Units:
Single item
Single package size:
37X27X24cm
Single gross weight:
70g

Supply Ability:

Supply Ability
100000 Piece/Pieces per Month

Lead time:

Quantity (pieces) 1 - 100 101 - 1000 > 5000
Lead time (days) 10 15 To be negotiated

Samples:

Maximum order quantity: 1piece
Sample price:

$15/piece

Certifications:

28mm 24v Dc Brushless Motor 10000 Rpm For Spin Coater, Vending Machine, Pump BL2838

Factory Show:

28mm 24v Dc Brushless Motor 10000 Rpm For Spin Coater, Vending Machine, Pump BL2838

28mm 24v Dc Brushless Motor 10000 Rpm For Spin Coater, Vending Machine, Pump BL2838

Product Classification:

28mm 24v Dc Brushless Motor 10000 Rpm For Spin Coater, Vending Machine, Pump BL2838

28mm 24v Dc Brushless Motor 10000 Rpm For Spin Coater, Vending Machine, Pump BL2838

Applications:

Toys,Massager ,Robot,Robot Vacuum Cleaner,Car flip screen,Intelligent Trash Can ,Power Tools,Driverless,

Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,

5G communication,Smart home

28mm 24v Dc Brushless Motor 10000 Rpm For Spin Coater, Vending Machine, Pump BL2838

28mm 24v Dc Brushless Motor 10000 Rpm For Spin Coater, Vending Machine, Pump BL2838

FAQ

Q1:Are you BLDC MOTOR manufacturer for OEM&ODM?
A1:Yes,CDM IS BLDC MOTOR manufacturer.We provide OEM&ODM

Q2: Do you manufacture products yourself ?
A2: Yes,we manufacture products by ourself.we have our own R&D team and industral
park,we control all the design and producing procedures ourselves,so just send us inquiry,and we will do allthe rest things for you.
Q3: Do you own patents ?
A3:Yes,we own patents on all our products,so don't worry,you won't infringe any patents if you sell our products
Q4: Do you accept private label?What's the MOQ?
A4: :Yes,we accept private label,MOQ is depends on which model,some MOQ is 100pcs,some is 5000pcs.
Q5: What testing certificates do you have?
A5:We have CE,ROHS,ISO9001,ISO14000,IATF16949 certificates,we will also help to make any other testings if you need.
