28mm BLDC Vacuum Cleaner Motor 5V-20V High Power External Rotor Brushless Electric Motor

• Motor Type: BLDC motor/Brushless motor
• Voltage Range: DC 5V-26V or customized
• Rated Speed: 2000-11000 RPM

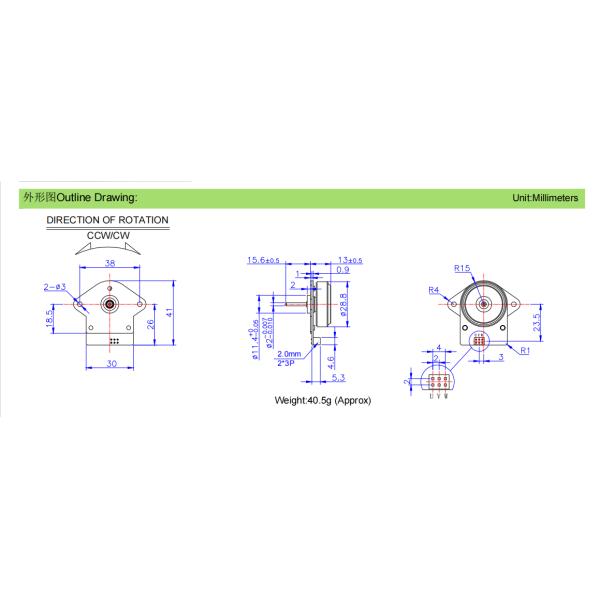

• Motor Size: φ28mm × L13mm
• Direction: CW & CCW Available
• Shaft Diameter: φ2.0mm or customized
• Structure: Built-in drive or external drive
• Bearing Type: Oil bearing or ball bearing
• Life Expectancy: 3000H (Oil Bearing) or 5000H (Ball Bearing)
• Working Temperature: -40°C to +60°C
• Rated Power: 0.1W-10W
• Weight: 40.5g
• Noise: ≤55 DB

Smart home, robots, office supplies, power tools, medical equipment, precision instruments, automotive electronics, toys, fans, home appliances, cosmetic instruments, medical imaging equipment, electric curtains.

• Packaging: Strong Carton 250pcs/box, or customized
• Port: Shenzhen/Guangzhou/Shanghai
• Package Size: 37×27×24cm
• Gross Weight: 40.5g (Approx)
• Supply Ability: 100,000 pieces per month

We currently produce Brushed DC Motors, Brushed DC Gear Motors, Planetary DC Gear Motors, Brushless DC Motors, Stepper motors, etc. You can check specifications on our website or email us for recommendations based on your requirements.

Please provide motor pictures, drawings, or detailed specifications including voltage, speed, torque, motor size, working mode, required lifetime, and noise level. We will recommend suitable motors accordingly.

Yes, we can customize voltage, speed, torque, shaft size/shape, and add wires/cables, connectors, capacitors, or EMC components as needed.

Yes, we provide individual motor design services, which may require mold and design charges.

Yes, after confirming motor specifications, we will provide a proforma invoice. Once payment is received, we will proceed with sample production.

Yes, both OEM and ODM services are welcome.
