Specifications
Brand Name :
Masing Motor
Model Number :
MSBL3657
Certification :
RohS,CE,ISO
Place of Origin :
China
MOQ :
1000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000000piece/per month
Delivery Time :
3-5 work weeks
Packaging Details :
Carton box
Product Name :
Brushless DC Motor BLDC 3657
Shaft Size :
D-cut or Round or Double flat shaft ect
Motor size :
Dia36mm*57mm
Bearing :
Ball bearing or Oil bearing
Product Type :
Brushless DC Motor 12V
Forward and reverse functions :
CW/CCW
Structure :
Built-in drive
Signal output function :
FG Sigal Pulse
Pulse width speed regulation funtion :
PWM Control
Motor life :
about 5000Hours
Description
12V/24V High Performance Brushless DC Motor with Integrated Speed Controller

BL3657/BL3650 high-performance brushless DC motor operating at up to 35,000 RPM with integrated driver for precise speed control and reliable operation.

Key Features
  • Forward and reverse functions (CW/CCW rotation)
  • PWM speed control for precise regulation
  • FG signal output for monitoring
  • Built-in protection: Locked rotor and overcurrent protection
  • Motor life: ~5000 hours
  • Compatible with gears, encoders, and brakes
  • Working temperature: -40°C to +60°C
  • Noise level: ≤55dB
Technical Specifications
Model Number MSBL-3657/BL-3650
Voltage Range 6V - 30V DC
Speed Range 2000 - 10000 RPM
Continuous Current 0.16 - 0.19A
Torque 135 - 185 gf.cm
Shaft Diameter 5mm
Dimensions 36mm diameter × 57mm length
Weight 55g
Efficiency IE3
Construction Permanent Magnet
Protection Totally Enclosed

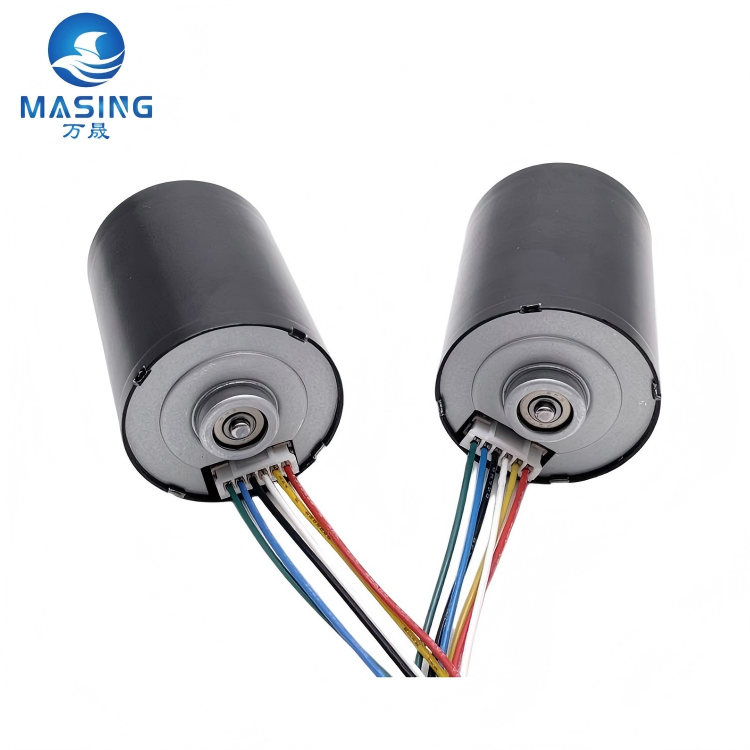

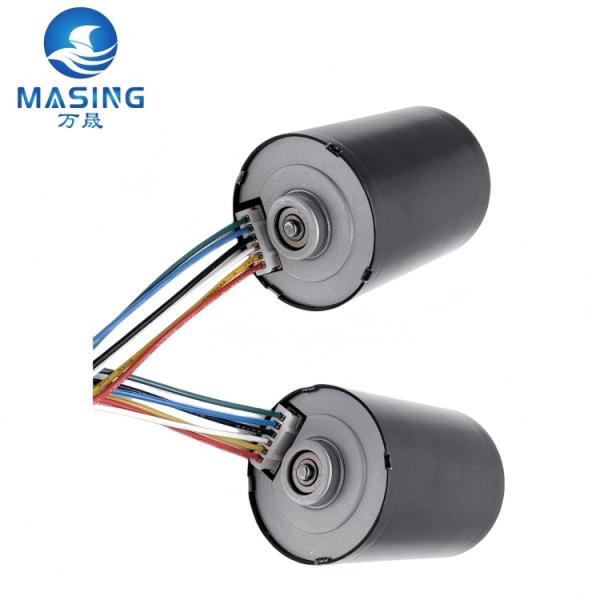

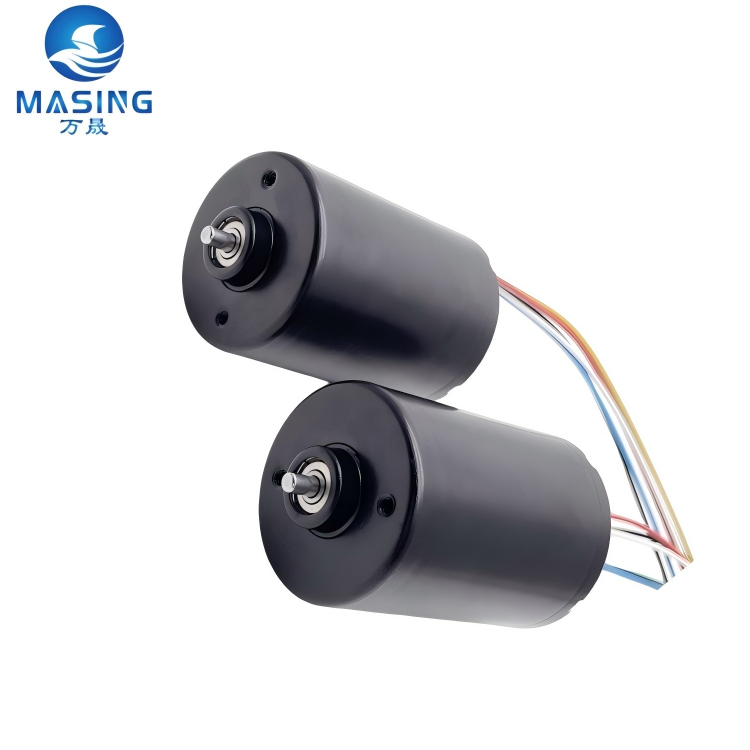

Product Images
12volt 24volt High Performance Brushless Dc Motor With Integrated Speed Controller 20000 Rpm Micro Brushless Dc Motor For Automotive Flip Display Motor 12volt 24volt High Performance Brushless Dc Motor With Integrated Speed Controller 20000 Rpm Micro Brushless Dc Motor For Automotive Flip Display Motor
Applications
  • Toys and Robotics
  • Massagers and Personal Care Devices
  • Robot Vacuum Cleaners
  • Car Flip Screens and Automotive Systems
  • Intelligent Trash Cans
  • Power Tools
  • Smart Home Devices
  • Medical Imaging Equipment
  • Cosmetic Instruments
  • Electric Bicycles and Fans
Customization Available

Motor voltage, speed, torque, eccentric wheel size, and materials can be customized according to customer requirements. Structure selection available: Built-in driver or external driver.

Technical Diagram
12volt 24volt High Performance Brushless Dc Motor With Integrated Speed Controller 20000 Rpm Micro Brushless Dc Motor For Automotive Flip Display Motor
Ordering Information
Quantity Lead Time
1 - 100 pieces 10 days
101 - 1000 pieces 15 days
Over 5000 pieces To be negotiated
Sample Information

Maximum sample order: 1 piece
Sample price: $15/piece

Packaging

Strong carton packaging: 250pcs/box, or customized as required

Supply Capacity

100,000 pieces per month

Important: Please refer to the rated voltage used by our motor. Voltage exceeding the specified range may cause motor damage.

Certifications & Quality
12volt 24volt High Performance Brushless Dc Motor With Integrated Speed Controller 20000 Rpm Micro Brushless Dc Motor For Automotive Flip Display Motor

We hold CE, FCC, ISO certifications and can apply for additional certifications as required.

Manufacturing Capabilities
12volt 24volt High Performance Brushless Dc Motor With Integrated Speed Controller 20000 Rpm Micro Brushless Dc Motor For Automotive Flip Display Motor 12volt 24volt High Performance Brushless Dc Motor With Integrated Speed Controller 20000 Rpm Micro Brushless Dc Motor For Automotive Flip Display Motor 12volt 24volt High Performance Brushless Dc Motor With Integrated Speed Controller 20000 Rpm Micro Brushless Dc Motor For Automotive Flip Display Motor
Frequently Asked Questions
How to select a suitable motor?
If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
Do you have a customized service for your standard motors?
Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
Do you have an individual design service for motors?
Yes, we would like to design motors individually for our customers, but it may need some mould charge and design charge.
Can I have samples for testing first?
Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.
How do you make sure motor quality?
We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for the production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
What's your lead time?
Generally speaking, our regular standard product will need 25-30 days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders.
