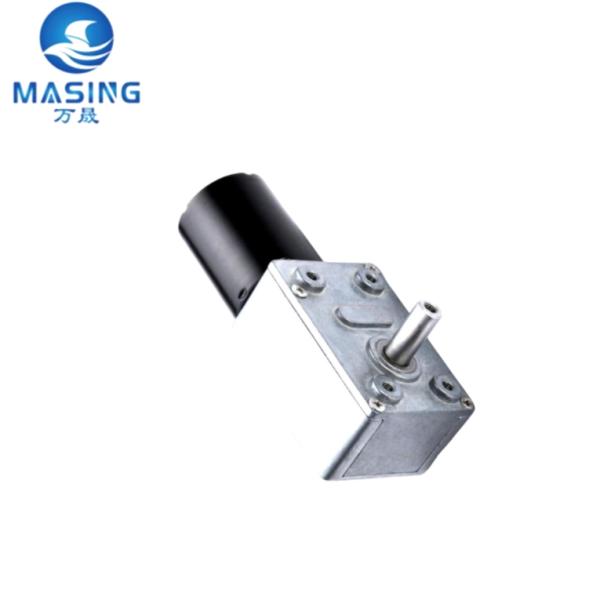

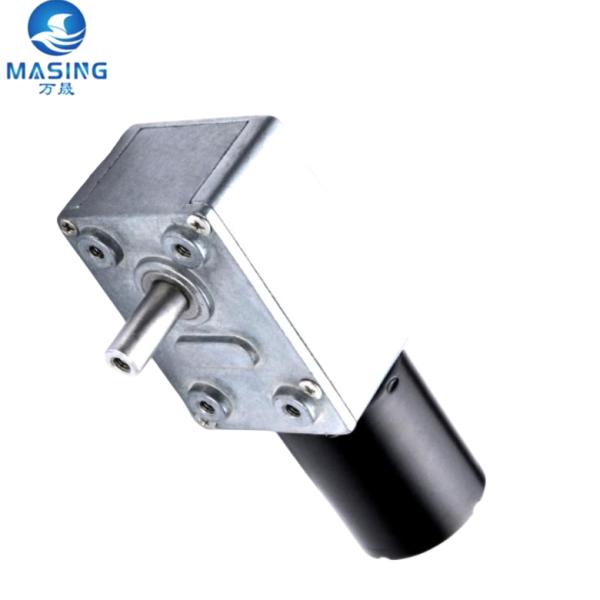

12V 24V Worm Gear BLDC Electric Brushless DC Motor With 32*46 Gearbox Self-Lock For Home Appliance Cooking Machine
12V 24V Worm Gear BLDC Electric Brushless DC Motor With 32*46 Gearbox Self-Lock For Home Appliance Cooking Machine
12V 24V Worm Gear BLDC Electric Brushless DC Motor With 32*46 Gearbox Self-Lock For Home Appliance Cooking Machine
12V 24V Worm Gear BLDC Electric Brushless DC Motor With 32*46 Gearbox Self-Lock For Home Appliance Cooking Machine
12V 24V Worm Gear BLDC Electric Brushless DC Motor With 32*46 Gearbox Self-Lock For Home Appliance Cooking Machine
12V 24V Worm Gear BLDC Electric Brushless DC Motor With 32*46 Gearbox Self-Lock For Home Appliance Cooking Machine
12V 24V Worm Gear BLDC Electric Brushless DC Motor With 32*46 Gearbox Self-Lock For Home Appliance Cooking Machine
12V 24V Worm Gear BLDC Electric Brushless DC Motor With 32*46 Gearbox Self-Lock For Home Appliance Cooking Machine
Specifications
Brand Name :
Masing Motor
Model Number :
MS-GM3246Z370
Certification :
RohS,CE,ISO,16949
Place of Origin :
China
MOQ :
1000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100000piece/per month
Delivery Time :
3-5 work weeks
Packaging Details :
Carton Box
Product name :
24V Worm Gear BLDC Electric Brushless DC Motor
Gearbox Shaft :
Round,D-cut ,M6,M5
Motor type :
RF-370
Rated Voltage :
DC3V-24V
Brush type :
Metal brush /Carton brush
Direction of motor :
CW & CCW
Protect Feature :
Drip-proof
Gearbox diameter :
32mm*46mm
Rated Torque :
0.5kgf.cm~30kgf.cm
Efficiency :
IE 3
Description
12V 24V Worm Gear BLDC Electric Brushless DC Motor With 32×46 Gearbox Self-Lock

This high-performance brushless DC motor features a worm gearbox with self-locking capability, designed specifically for home appliances and cooking machines. The motor delivers reliable power with customizable specifications to meet various application requirements.

Product Specifications
  • Rated Voltage: DC 3.0V-24V
  • Rated Speed: 2RPM-500RPM
  • Motor Direction: CW & CCW
  • Working Temperature: -40°C to +60°C
  • Motor Type: Brushless or Brushed
  • Motor Model: RF-370
  • Motor Size: Diameter 24.4mm, Length 30.8mm
  • Motor Power: 1W-100W High Power
  • Gearbox Diameter: φ32mm
  • Gearbox Type: Planetary Gear Box
  • Gears Material: Plastic, Copper, Steel, Powder Metallurgy or Customized
Technical Attributes
Rated Speed 3RPM-500RPM
Continuous Current 20mA-500mA
Efficiency IE3
Warranty 3 Months-1 Year
Brand Name Masing Motor
Model Number MS-GM3246Z370
Type Micro Worm Gear Motor
Rated Torque 0.1kgf.cm-30kgf.cm
Construction Permanent Magnet
Commutation Brush / Brushless
Gearbox Size 32mm×46mm
Weight 0.2KG
Noise ≤55DB
MOQ 1000Pcs
Applications

Auto shutter, binding machine, automatic TV rack, money counter, spot light, tissue machine, office equipment, household appliances, automatic actuator, medical devices, smart home, electric bicycles, boats, cars, fans, and various home appliances.

Product Images
12V 24V Worm Gear BLDC Electric Brushless DC Motor With 32*46 Gearbox Self-Lock For Home Appliance Cooking Machine 12V 24V Worm Gear BLDC Electric Brushless DC Motor With 32*46 Gearbox Self-Lock For Home Appliance Cooking Machine 12V 24V Worm Gear BLDC Electric Brushless DC Motor With 32*46 Gearbox Self-Lock For Home Appliance Cooking Machine
Technical Data
12V 24V Worm Gear BLDC Electric Brushless DC Motor With 32*46 Gearbox Self-Lock For Home Appliance Cooking Machine
Reduction Stage 3 4 5
Reduction Ratio 69K,100K,180K
255K,276K		 330K,552K
828K,950K		 1650K,1656K
2484K,5300K
Gearbox Length "L" (mm) 25.5 25.5 25.5
Gearbox Efficiency 73% 65% 59%
Motor Model Rated Voltage (V) No Load Current (mA) No Load Speed (rpm) Load Current (mA) Load Speed (rpm) Load Torque (gf.cm) Output (W) Stall Torque (gf.cm) Stall Current (mA)
3700065000 6 ≤45 5000 ≤240 4200 20 0.88 ≥110 ≥1100
3700126000 12 ≤42 6000 ≤150 5000 20 1.05 ≥120 ≥980
37001212000 12 ≤90 12000 ≤520 10300 28 2.96 ≥190 ≥2500
3700246000 24 ≤21 6000 ≤110 5100 21 1.12 ≥170 ≥440
3700249000 24 ≤43 9000 ≤210 7800 27 2.20 ≥210 ≥950
Packaging & Delivery
  • Packaging: Strong Carton 400pcs/box, or customized
  • Port: Shenzhen/Guangzhou/Shanghai
  • Selling Units: Single item
  • Package Size: 37×27×24cm
  • Gross Weight: 10.6kg
  • Supply Ability: 100,000 pieces per month
Quantity (pieces) 1 - 100 101 - 1000 > 1000
Lead Time (days) 10 20 To be negotiated
Samples & Certifications

Maximum sample order quantity: 1 piece | Sample price: $10/piece

12V 24V Worm Gear BLDC Electric Brushless DC Motor With 32*46 Gearbox Self-Lock For Home Appliance Cooking Machine
Company Advantages
  • Large-scale professional manufacturer with 5+ years experience
  • Integrated development, production, wholesale and service
  • Professional teams in research, engineering and sales
  • Strong technology development and manufacturing capabilities
  • Advanced equipment and testing facilities
Product Advantages
  • Wide variety of quality-guaranteed products
  • Advanced product testing equipment
  • Customizable according to client requirements
  • Independent research and development capabilities
  • Multiple certifications (CE, RoHS, ISO, Reach)
  • Patent certificates available
Factory & Product Classification
12V 24V Worm Gear BLDC Electric Brushless DC Motor With 32*46 Gearbox Self-Lock For Home Appliance Cooking Machine 12V 24V Worm Gear BLDC Electric Brushless DC Motor With 32*46 Gearbox Self-Lock For Home Appliance Cooking Machine 12V 24V Worm Gear BLDC Electric Brushless DC Motor With 32*46 Gearbox Self-Lock For Home Appliance Cooking Machine 12V 24V Worm Gear BLDC Electric Brushless DC Motor With 32*46 Gearbox Self-Lock For Home Appliance Cooking Machine
Application Areas

Small home appliances, models, power tools, communication equipment, medical devices, health care equipment, toys, fitness equipment, driverless technology, artificial intelligence, intelligent transportation, health care, smart city, automotive supplies, security monitoring, 5G communication, and smart home applications.

Industry Applications
Medical Equipment Sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer
Business Machines Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen
Electric Powered Equipment Electric toothbrush, Electric tool, Adult products, Electric toy car, Electric curtain
Smart Home Intelligent window opener, Vacuum cleaner, Smart coffee machine, Hair dryer, Fascia gun, Fan, Air cleaner, Hair removal device, Door lock, Intelligent door lock
Food and Beverage Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers
Robotics Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot
12V 24V Worm Gear BLDC Electric Brushless DC Motor With 32*46 Gearbox Self-Lock For Home Appliance Cooking Machine 12V 24V Worm Gear BLDC Electric Brushless DC Motor With 32*46 Gearbox Self-Lock For Home Appliance Cooking Machine
Frequently Asked Questions
Q1: How to select a suitable motor?
A1: If you have motor pictures, drawings, or detailed specifications like voltage, speed, torque, motor size, working mode, required lifetime, and noise level, please contact us. We can recommend suitable motors based on your requirements.
Q2: Do you have a customized service for your standard motors?
A2: Yes, we can customize voltage, speed, torque, and shaft size/shape. We can also add wires/cables, connectors, capacitors, or EMC components as needed.
Q3: Do you have an individual design service for motors?
A3: Yes, we provide individual motor design services. This may require mold charges and design fees depending on the project requirements.
Q4: Can I have samples for testing first?
A4: Yes, after confirming the required motor specifications, we will provide a quote and proforma invoice for samples. Once payment is received, we will proceed with sample production.
Q5: How do you ensure motor quality?
A5: We have comprehensive inspection procedures including incoming material inspection against signed samples and drawings, tour inspection during production processes, and final inspection before shipping to ensure product quality.
