BL2430 24mm Brushless Dc Motor 12v 24v 6000rpm Dc Motors Brushless With Built-In Driver For Medical Apparatus
BL2430 24mm Brushless Dc Motor 12v 24v 6000rpm Dc Motors Brushless With Built-In Driver For Medical Apparatus
BL2430 24mm Brushless Dc Motor 12v 24v 6000rpm Dc Motors Brushless With Built-In Driver For Medical Apparatus
BL2430 24mm Brushless Dc Motor 12v 24v 6000rpm Dc Motors Brushless With Built-In Driver For Medical Apparatus
BL2430 24mm Brushless Dc Motor 12v 24v 6000rpm Dc Motors Brushless With Built-In Driver For Medical Apparatus
BL2430 24mm Brushless Dc Motor 12v 24v 6000rpm Dc Motors Brushless With Built-In Driver For Medical Apparatus
BL2430 24mm Brushless Dc Motor 12v 24v 6000rpm Dc Motors Brushless With Built-In Driver For Medical Apparatus
BL2430 24mm Brushless Dc Motor 12v 24v 6000rpm Dc Motors Brushless With Built-In Driver For Medical Apparatus
Specifications
Brand Name :
Masing Motor
Model Number :
MS-BL2430
Certification :
16949,RohS,CE,ISO
Place of Origin :
China
MOQ :
1000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000000piece/per month
Delivery Time :
3-5 work weeks
Packaging Details :
Carton box
Product Name :
Mini BLDC Motor
Shaft tpye :
Round,Flat ,D-cut ect
Motor size :
φ24.4mm*30.8mm
Motor type :
Brushless Motor
Direction of motor :
CW&CCW
Signal :
Signal Function Available
Structure :
Built-in driver or external driver
PWM :
PWM Countrol(Standard)
Life Expectancy :
800H-10000H
Power :
0.2W-3W(Internal Drive)
Description

24mm Brushless Dc Motor 12v Title:

BL2430 24mm Brushless Dc Motor 12v 24v 6000rpm Dc Motors Brushless With Built-In Driver For Medical Apparatus

24mm Brushless Dc Motor 12v Description:

  • Rated Voltage range:DC 6v-30V

  • Rated Speed: 1000RPM-10000RPM

  • The motor speed is proportional to the motor voltage

  • Rated Torque :0.5gf.cm-200gf.cm

  • The torque of the motor is nronortional to the speed of the motor

  • Motor Type :Brushless DC Motor

  • Motor Shaft diameter :φ2.0mm

  • Motor Size: φ24.4*30.8mm,diamter 24.4mm ,30.8mm Length micro brushless motor

  • Suitable to small diameter, low noise and big torque application

  • Motor default direction:CW &CCW available

  • Structure selection:Built-in driver or external driver

  • Connection Mode:A
  • Signal :Signal Function Available
    PWM Countrol(Standard)
    Locked Rotor Protection
    Power:3W(Internal Drive)
    Life Expectancy:1000H-10000H(Oil Bearing)

  • Can be match with wheel, One shaft one wheel or one motor, one wheel

  • Working temperature:-40~+60°c

  • Widely used in :Smart home, robots, office supplies, power tools, medical equipment,

    precision instruments, automotive electronics,Power Tools, Home Application, Personal Care,Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME, Medical Imaging Equipment,Toys,Massager ,Robot Vacuum Cleaner

  • We can provide samples for your test. 24mm Brushless Dc Motor 12v Key Attributes:

Rated Speed(RPM)
1000rpm-20000rpm
Continuous Current(A)
10mA-300mA or Customized
Efficiency
IE2
Warranty
3Months-1Year
Place of Origin
Guangdong, China
Brand Name
Masing Motor
Model Number
MS-BL2430
Use

Smart home, robots, office supplies, power tools,Cosmetic instrument, Smart Home, Medical Imaging Equipment,Toys,Massager ,Robot Vacuum Cleaner

Motor Type
Brushless Motor
Connection Mode
A
Construction
Permanent Magnet
Commutation
Brushless
Protect Feature
Totally Enclosed
Product Name
BL2430 Brushless DC Motor
Direction of motor
CW&CCW
Keywords
12v Brushless Micro Dc Motor
Motor Diameter
φ24.4mm
Weight
25g
Noise
≤55DB
MOQ
1000Pcs
Rated Voltage
DC 6v-30v
Color
Customer's Request
Life Expectancy
1000H-10000H(Oil Bearing)

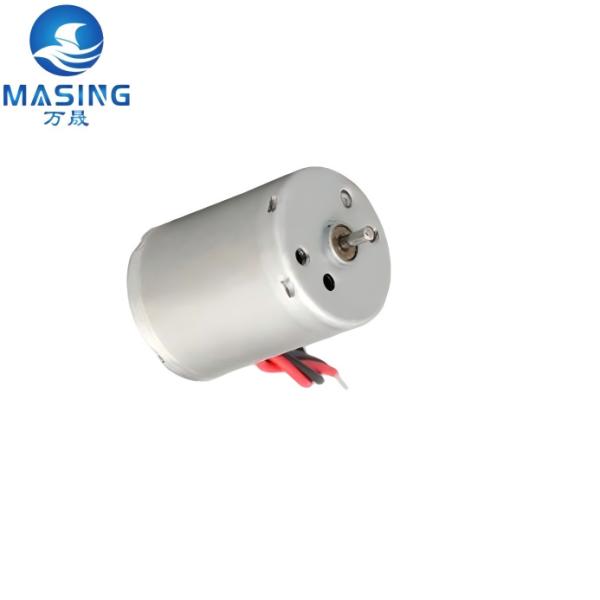

24mm Brushless Dc Motor 12v Product Photo:

BL2430 24mm Brushless Dc Motor 12v 24v 6000rpm Dc Motors Brushless With Built-In Driver For Medical ApparatusBL2430 24mm Brushless Dc Motor 12v 24v 6000rpm Dc Motors Brushless With Built-In Driver For Medical Apparatus

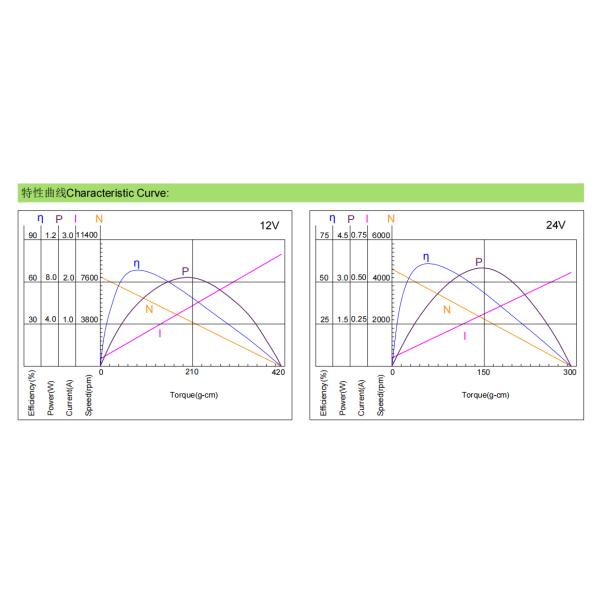

24mm Brushless Dc Motor 12v Product Spec:

12V High Performance DC Brushless Motor Typical Applications

Smart home, robots, office supplies, power tools,precision instruments, automotive electronics,Personal Care,Car,

Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, Medical Imaging Equipment,Toys,Massager ,Robot Vacuum Cleaner

Voltage,rated torque,speed,curent,power and shaft size can be customizedasrequrement.

BL2430 24mm Brushless Dc Motor 12v 24v 6000rpm Dc Motors Brushless With Built-In Driver For Medical Apparatus

Motor Data:

Motor Model		 Votage No Load At Maximum Efficiency Stall

Operating
Range
Rated
Current
Speed
Current
Speed
Torque
Power
Efficiency
Current
Torque
A rpm A rpm g-cm W % A g-cm
BL2430*** 9~14V 12V 0.17 8000 0.67 6380 83.1 5.4 67.7 2.65 411
BL2430*** 19~26V 24V 0.05 4600 0.18 3550 67.2 2.4 60.0 0.58 295

BL2430 24mm Brushless Dc Motor 12v 24v 6000rpm Dc Motors Brushless With Built-In Driver For Medical Apparatus

Packaging and delivery:

Packaging Details
Strong Carton 250pcs/box, or as you wish.
Port
Shenzhen/Guangzhou/Shanghai
Selling Units:
Single item
Single package size:
37X27X24cm
Single gross weight:
8.0kg

Supply Ability:

Supply Ability
100000 Piece/Pieces per Month

Lead time:

Quantity (pieces) 1 - 100 101 - 1000 > 5000
Lead time (days) 10 15 To be negotiated

Samples:

Maximum order quantity: 1piece
Sample price:

$8/piece

Certifications:

BL2430 24mm Brushless Dc Motor 12v 24v 6000rpm Dc Motors Brushless With Built-In Driver For Medical Apparatus

Factory Show:

BL2430 24mm Brushless Dc Motor 12v 24v 6000rpm Dc Motors Brushless With Built-In Driver For Medical Apparatus

BL2430 24mm Brushless Dc Motor 12v 24v 6000rpm Dc Motors Brushless With Built-In Driver For Medical Apparatus

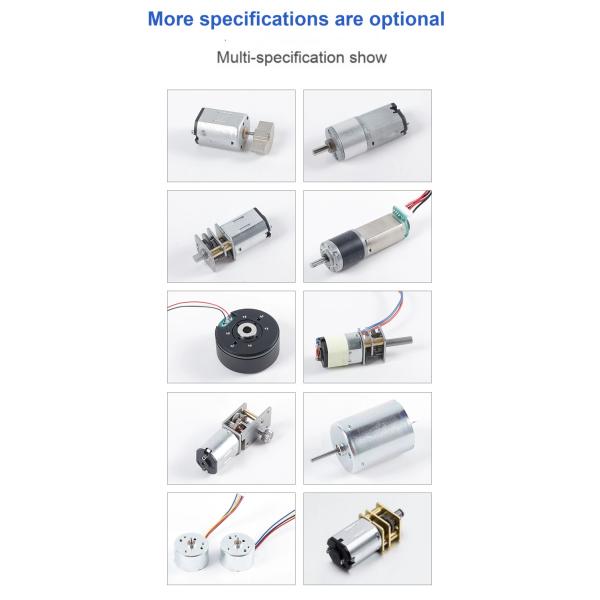

Product Classification:

BL2430 24mm Brushless Dc Motor 12v 24v 6000rpm Dc Motors Brushless With Built-In Driver For Medical Apparatus

BL2430 24mm Brushless Dc Motor 12v 24v 6000rpm Dc Motors Brushless With Built-In Driver For Medical Apparatus

Applications:

Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,

5G communication,Smart home

BL2430 24mm Brushless Dc Motor 12v 24v 6000rpm Dc Motors Brushless With Built-In Driver For Medical Apparatus

FAQ

Q1: What's the price?
A1: We're a professional manufacturer So the exact price is based on clients' specifications,such as the speed,voltage etc.

Q2:What's the MOQ?
A2:We try to meet every client's requests and don't want to disappoint our clients.So the MOQ is flexible if the product is not complicated to produce and we are not in a busy season.Kindly chat with our saler to confirm it.

Q3:Can you send some samples before the order?

A3:Yes of course,we must send the sample to confirm the quality with you first.UPS,TNT,FEDEX or DHL are all available.

Q4:Can you make our logo on the products?

A4: Certainly,logo is easy as most of our products are customizable.So logo in usually logo is necessary.It can be labeled on the motors.

Q5: How to select a suitable motor?
A5: If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
