24mm Brushless DC Motor 6000rpm with Built-In Driver for Medical Apparatus and Smart Home
24mm Brushless DC Motor 6000rpm with Built-In Driver for Medical Apparatus and Smart Home
24mm Brushless DC Motor 6000rpm with Built-In Driver for Medical Apparatus and Smart Home
24mm Brushless DC Motor 6000rpm with Built-In Driver for Medical Apparatus and Smart Home
24mm Brushless DC Motor 6000rpm with Built-In Driver for Medical Apparatus and Smart Home
24mm Brushless DC Motor 6000rpm with Built-In Driver for Medical Apparatus and Smart Home
24mm Brushless DC Motor 6000rpm with Built-In Driver for Medical Apparatus and Smart Home
24mm Brushless DC Motor 6000rpm with Built-In Driver for Medical Apparatus and Smart Home
Specifications
Brand Name :
Masing Motor
Model Number :
MS-BL2430
Certification :
16949,RohS,CE,ISO
Place of Origin :
China
MOQ :
1000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000000piece/per month
Delivery Time :
3-5 work weeks
Packaging Details :
Carton box
Product Name :
Mini BLDC Motor
Shaft tpye :
Round,Flat ,D-cut ect
Motor size :
φ24.4mm*30.8mm
Motor type :
Brushless Motor
Direction of motor :
CW&CCW
Signal :
Signal Function Available
Structure :
Built-in driver or external driver
PWM :
PWM Countrol(Standard)
Life Expectancy :
800H-10000H
Power :
0.2W-3W(Internal Drive)
Description
BL2430 24mm Brushless DC Motor
High-performance 12V/24V brushless DC motor with built-in driver, designed for medical apparatus and precision applications. Operating at 6000RPM with customizable voltage range from 6V to 30V.
Technical Specifications
  • Rated Voltage: DC 6V-30V
  • Rated Speed: 1000RPM-10000RPM (speed proportional to voltage)
  • Rated Torque: 0.5gf.cm-200gf.cm
  • Motor Type: Brushless DC Motor
  • Shaft Diameter: φ2.0mm
  • Motor Size: φ24.4*30.8mm
  • Power: 3W (Internal Drive)
  • Weight: 25g
  • Noise Level: ≤55DB
  • Working Temperature: -40°C to +60°C
  • Life Expectancy: 1000H-10000H (Oil Bearing)
Motor Features
  • Built-in driver or external driver options available
  • PWM Control (Standard)
  • Locked Rotor Protection
  • Rotation Direction: CW & CCW available
  • Signal Function Available
  • Connection Mode: A
  • Compact design suitable for small diameter applications
  • Low noise operation with high torque output
  • Compatible with wheel attachments
Performance Data
Motor Model Voltage Range No Load Current No Load Speed Max Efficiency Current Max Efficiency Speed Max Efficiency Torque Power Efficiency
BL2430 9-14V 0.17A 8000rpm 0.67A 6380rpm 83.1 g-cm 5.4W 67.7%
BL2430 19-26V 0.05A 4600rpm 0.18A 3550rpm 67.2 g-cm 2.4W 60.0%
Applications
Smart home devices, robotics, office equipment, power tools, medical equipment, precision instruments, automotive electronics, personal care devices, electric bicycles, fans, home appliances, cosmetic instruments, medical imaging equipment, toys, massagers, and robot vacuum cleaners.

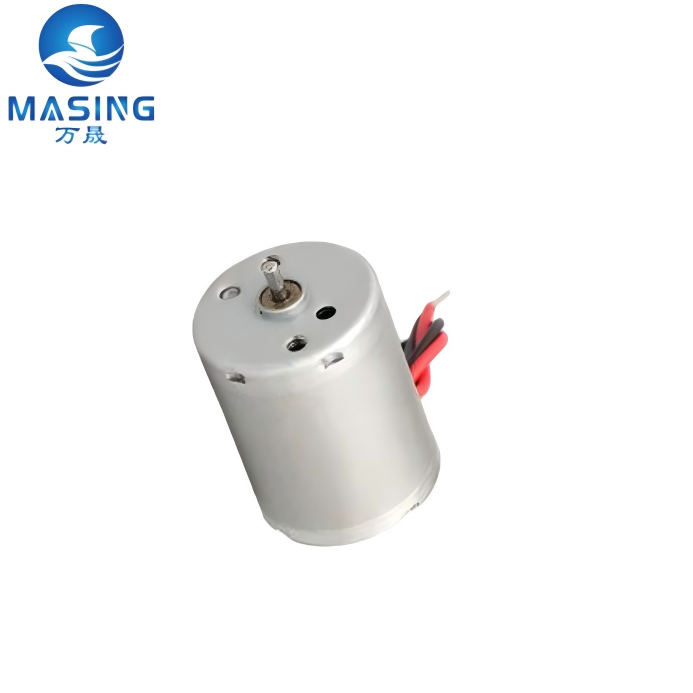

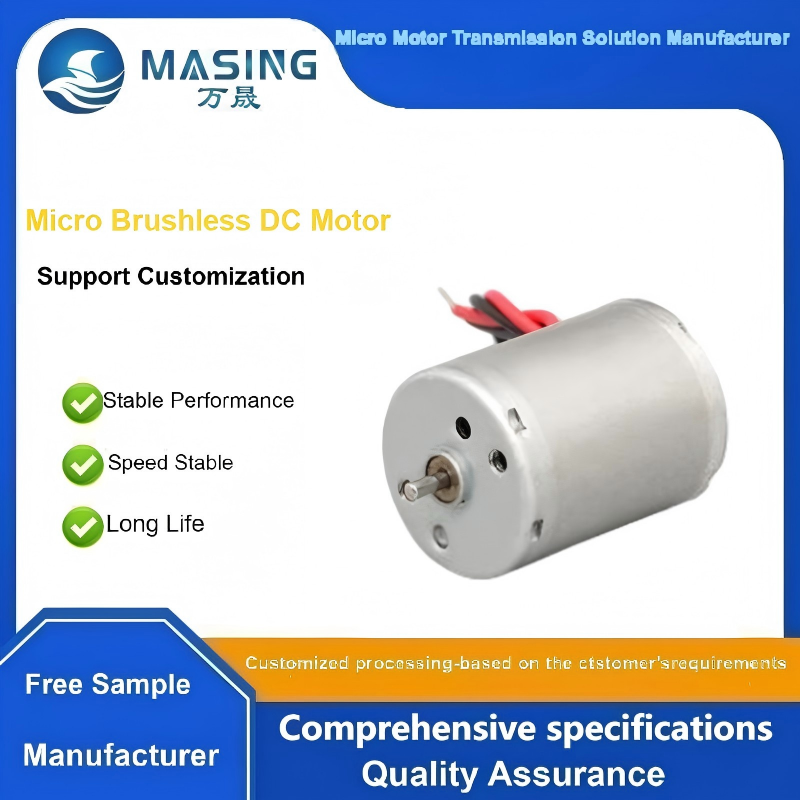

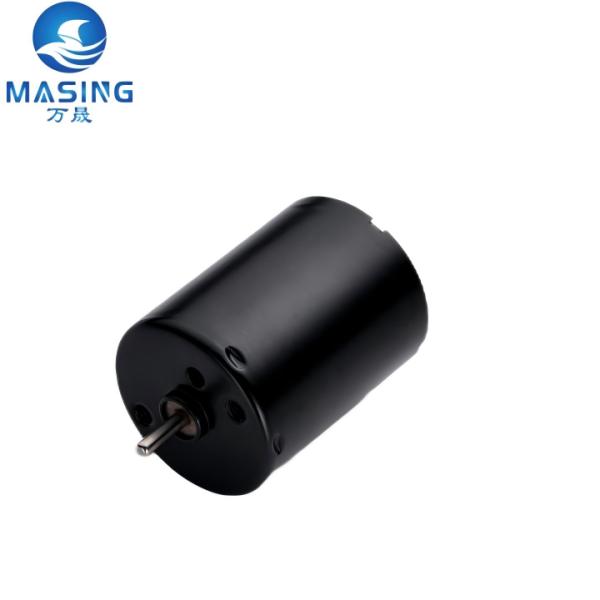

Product Images
24mm Brushless DC Motor 6000rpm with Built-In Driver for Medical Apparatus and Smart Home 24mm Brushless DC Motor 6000rpm with Built-In Driver for Medical Apparatus and Smart Home 24mm Brushless DC Motor 6000rpm with Built-In Driver for Medical Apparatus and Smart Home 24mm Brushless DC Motor 6000rpm with Built-In Driver for Medical Apparatus and Smart Home
Packaging & Delivery
Packaging: Strong Carton 250pcs/box, or customized packaging available
Ports: Shenzhen, Guangzhou, Shanghai
Unit: Single item
Package Size: 37*27*24cm
Gross Weight: 8.0kg
Supply Information
Supply Ability: 100,000 pieces per month
Minimum Order Quantity: 1000 pieces (flexible for simple products)
Lead Time
Quantity (pieces) Lead Time (days)
1 - 100 10
101 - 1000 15
> 5000 To be negotiated
Samples
Maximum Order Quantity: 1 piece
Sample Price: $8 per piece
Samples available via UPS, TNT, FEDEX, or DHL
Frequently Asked Questions
Q1: What's the price?
A1: As a professional manufacturer, our pricing is based on client specifications including speed, voltage, and other requirements.
Q2: What's the MOQ?
A2: Minimum order quantity is flexible for products that are not complex to produce. Please contact our sales team to confirm specific requirements.
Q3: Can you send samples before ordering?
A3: Yes, we provide samples for quality confirmation. Shipping available via UPS, TNT, FEDEX, or DHL.
Q4: Can you add our logo to the products?
A4: Yes, logo customization is available for most of our customizable products.
Q5: How to select a suitable motor?
A5: Please provide motor pictures, drawings, or detailed specifications including voltage, speed, torque, size, working mode, required lifetime, and noise level. We will recommend the most suitable motor for your application.
Additional Information
Brand: Masing Motor
Model Number: MS-BL2430
Place of Origin: Guangdong, China
Warranty: 3 Months to 1 Year
Efficiency: IE2
Color: Customizable per customer request
