Marine Rubber Airbags Heavy Duty Strength Anti Aging Material Reliable Support

Description

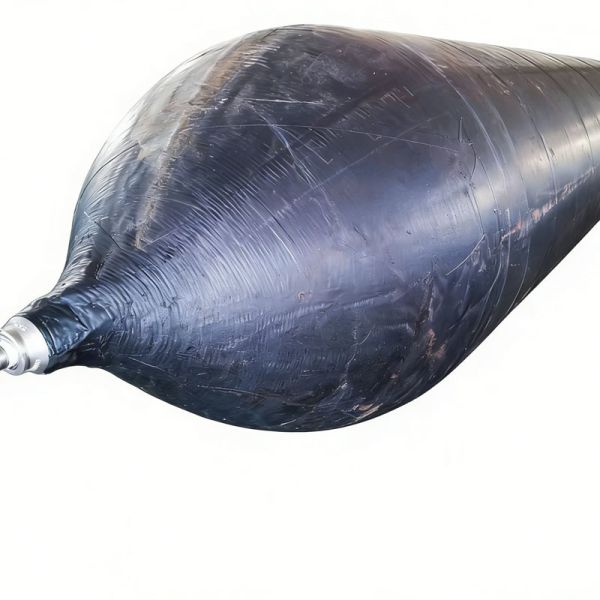

Airbag launching is a flexible and high-efficiency ship-to-water transfer technology that uses pneumatic marine airbags as the primary supporting and rolling medium beneath a vessel’s hull. Instead of relying on reinforced slipways or steel-track systems, airbags provide distributed load support through controlled internal pressure, allowing vessels to be launched safely even in environments with limited infrastructure. Their multi-layer structure provides strength in both axial and circumferential directions, enabling predictable deformation as the ship transitions from land to water.

The method works by placing a series of cylindrical airbags under the hull after it is elevated using synchronized hydraulic jacks. Once the airbags are pressurized and aligned, the hull begins to move forward, rolling over the airbags while ground resistance gradually decreases until buoyancy takes over.

A representative case involved the launching of a 9,600-ton multi-purpose cargo vessel at a Southeast Asian shipyard with restricted workspace and a shallow foreshore. Traditional slipway construction would have required extensive civil engineering reinforcement, significantly increasing cost and delaying the delivery schedule. Engineers conducted simulations to evaluate airbag-based launching as an alternative.

A total of 28 airbags, each 1.8 m by 18 m, were positioned under the hull at optimized intervals. Before launching, the team performed load-distribution analysis and monitored pressure equalization to ensure that each airbag carried balanced force. During the launch, displacement sensors and pressure gauges provided real-time data on hull movement, ensuring that the vessel maintained correct alignment and acceleration.

As the ship rolled forward, airbags at the stern deformed in a controlled manner, absorbing energy and stabilizing the hull. The transition from land support to buoyant support occurred smoothly, and the vessel entered the water without lateral deviation or impact damage. The entire launching process took less than three hours, and final inspection confirmed that the hull coating and structural components remained intact.

This successful launch reduced the shipyard’s cost by approximately 38% compared with slipway alternatives. The project demonstrated that airbag launching can accommodate mid-size commercial vessels without major infrastructure investment, expanding the shipyard’s operational range and enabling flexible production scheduling.

Specifications

Features

Multi Layer Reinforcement Structure

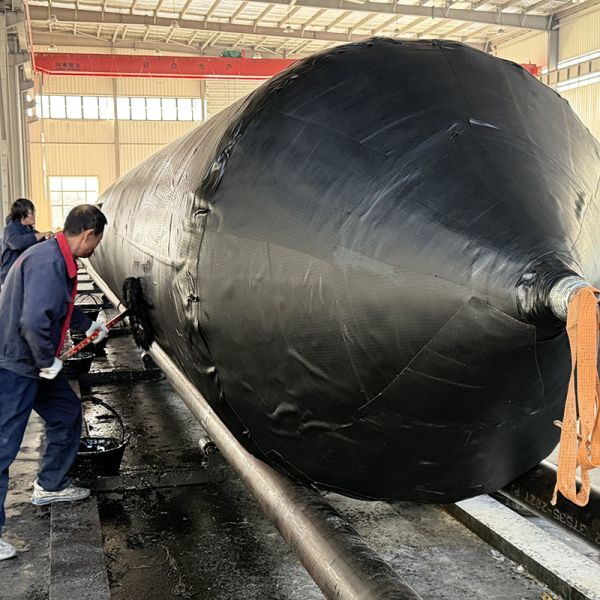

The airbags are constructed with multiple layers of tire-cord fabric arranged in alternating orientations. This creates a high-tensile strength skeleton capable of resisting longitudinal stretching and circumferential compression. The balanced structure ensures uniform stress distribution under heavy hull loads.

Stable Internal Pressure Performance
Specially engineered rubber compounds and high-integrity valves allow the airbags to maintain consistent pressure across long operational periods. Controlled pressure retention ensures predictable rolling dynamics and eliminates localized deformation that could compromise hull stability.

Wear Resistant Outer Rubber
The exterior layer is formulated to resist abrasion from concrete slipways, compacted soil, and steel plates. This improved wear resistance extends service life and reduces operational downtime, even with frequent launching cycles.

Flexible Axial Deformation
The airbags’ cylindrical body is designed to deform smoothly along the axial direction, enabling stable rolling motion over uneven surfaces. This flexibility minimizes energy loss and contributes to accurate control of vessel acceleration and direction.

Applications

Launching of Heavy Commercial Ships
Ideal for cargo vessels, offshore support ships, and large industrial barges requiring distributed load handling and smooth transfer to buoyant support.

Hull Elevation During Construction
Shipyards use airbags to raise vessels for keel alignment, block integration, and hull inspection when drydock availability is limited.

Movement of Heavy Industrial Structures
Airbags provide uniform support and rolling ability for relocating caissons, steel modules, bridge sections, and coastal engineering components.
