BB1916C-4P Custom Anti Rust Marine Bus Bar 300V AC 48V DC Terminal Block Boat Yacht Auto
BB1916C-4P Custom Anti Rust Marine Bus Bar 300V AC 48V DC Terminal Block Boat Yacht Auto
BB1916C-4P Custom Anti Rust Marine Bus Bar 300V AC 48V DC Terminal Block Boat Yacht Auto
BB1916C-4P Custom Anti Rust Marine Bus Bar 300V AC 48V DC Terminal Block Boat Yacht Auto
BB1916C-4P Custom Anti Rust Marine Bus Bar 300V AC 48V DC Terminal Block Boat Yacht Auto
BB1916C-4P Custom Anti Rust Marine Bus Bar 300V AC 48V DC Terminal Block Boat Yacht Auto
BB1916C-4P Custom Anti Rust Marine Bus Bar 300V AC 48V DC Terminal Block Boat Yacht Auto
BB1916C-4P Custom Anti Rust Marine Bus Bar 300V AC 48V DC Terminal Block Boat Yacht Auto
BB1916C-4P Custom Anti Rust Marine Bus Bar 300V AC 48V DC Terminal Block Boat Yacht Auto
BB1916C-4P Custom Anti Rust Marine Bus Bar 300V AC 48V DC Terminal Block Boat Yacht Auto
Specifications
Payment Terms :
T/T,Western Union
Packaging Details :
Carton
Application :
Distribution Line
Price :
Negotiable
Max Voltage :
300V AC/48V DC
Supply Ability :
500 Pieces per Week
Connection Method :
Push-in Connection
MOQ :
1 Piece
Continuous Rating :
130A AC/150A DC
Place of Origin :
China
Color :
Black & red
Certification :
CE, RoHS
Model Number :
BB1916C-4P
Product Name :
Marine Bus Bar
Delivery Time :
5-8 days
Brand Name :
NEKEKE
Description

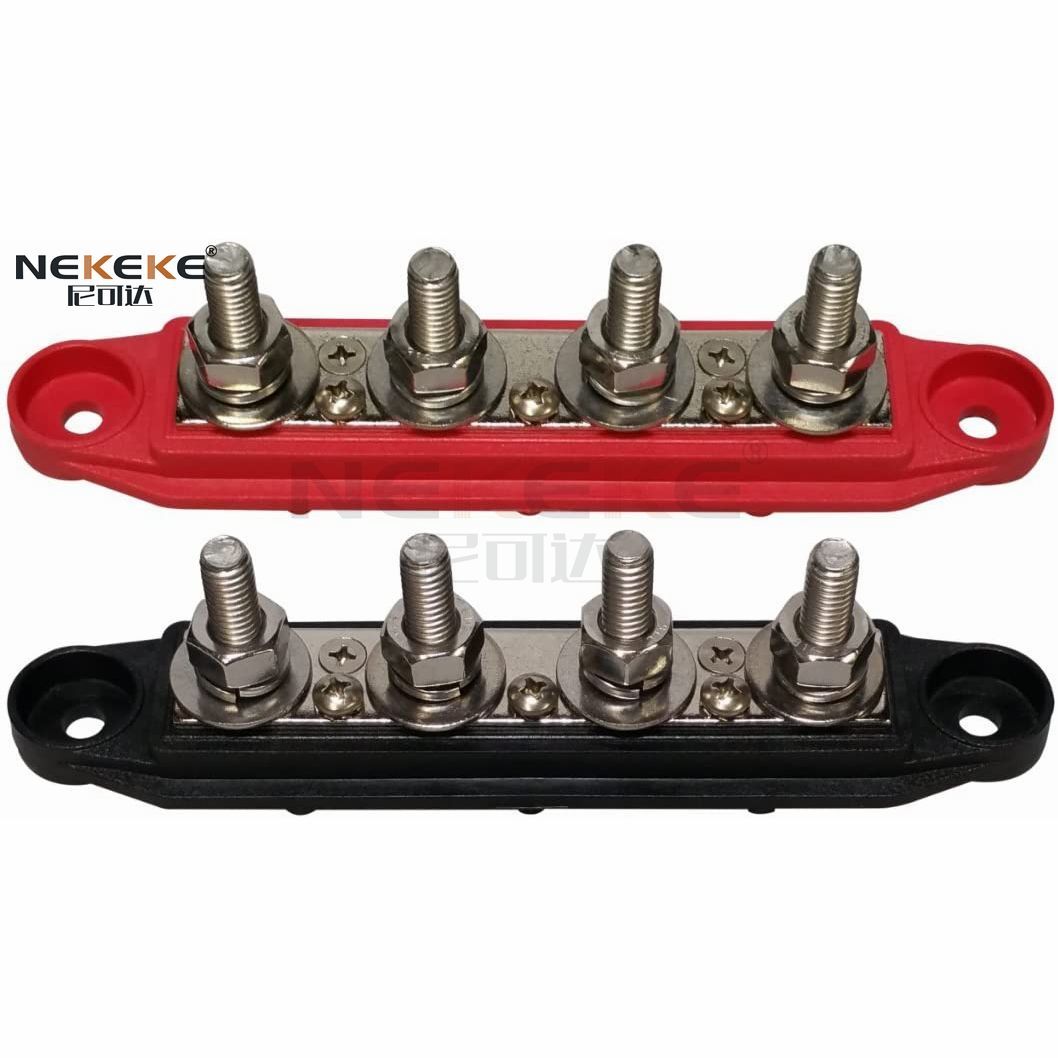

The NEKEKE BB1916C-4P marine bus bar is a compact power distribution terminal block built for reliable current splitting in boats, yachts, caravans, and automobiles. Its nickel-plated copper contact plate delivers low resistance and strong anti-rust performance, while the nylon and polycarbonate housing with stainless steel fasteners keeps every connection stable, safe, and easy to maintain in damp or corrosive environments.

Key Benefits
  • Nickel-plated copper plate ensures low contact resistance and efficient current flow
  • Anti-rust construction extends service life in marine and outdoor installations
  • Enlarged contact surface reduces energy loss and controls temperature rise

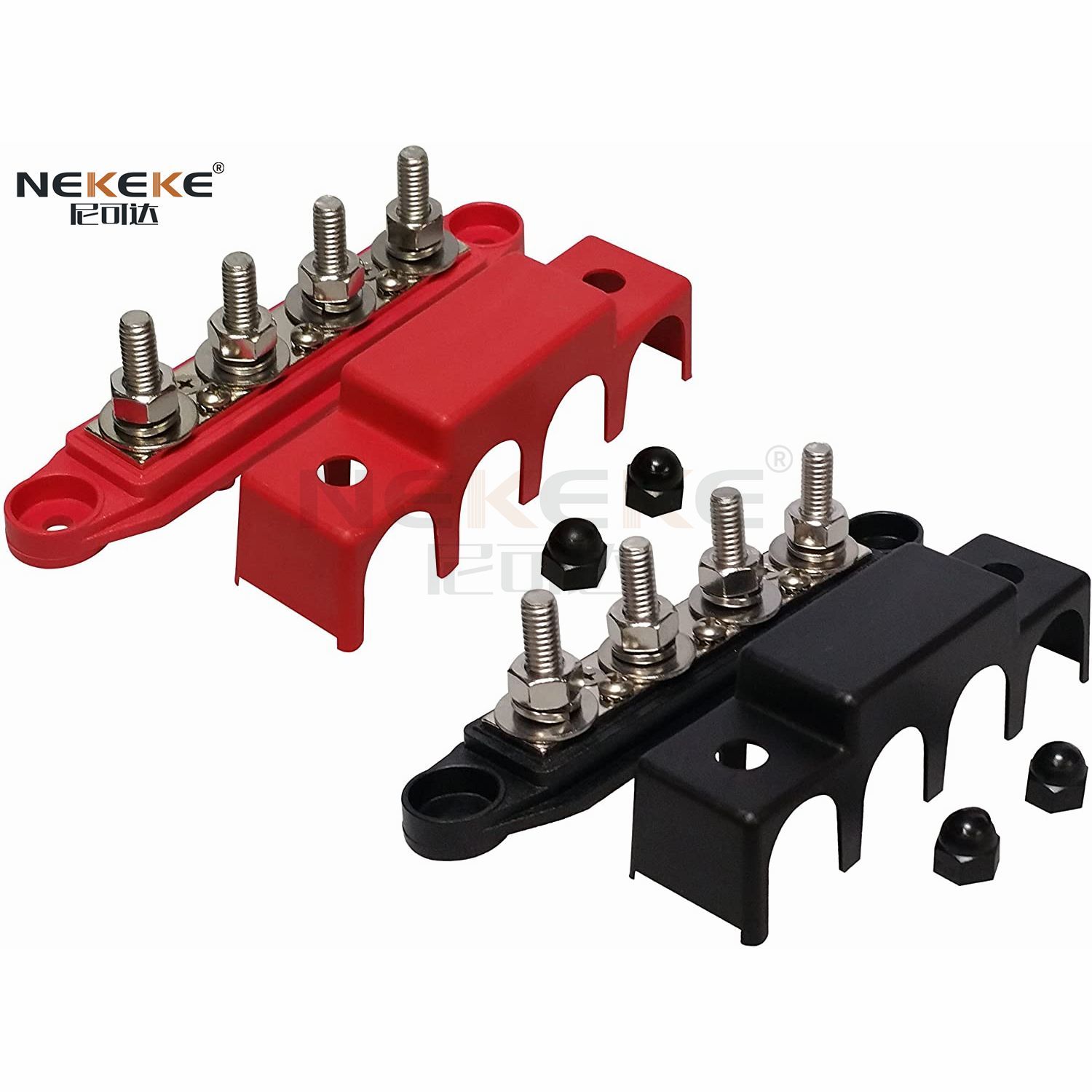

  • Protective cover shields terminals from dust, rain, and accidental short circuits
  • Push-in connection design simplifies wiring and speeds up installation
  • Stainless steel screws and studs resist corrosion under harsh conditions

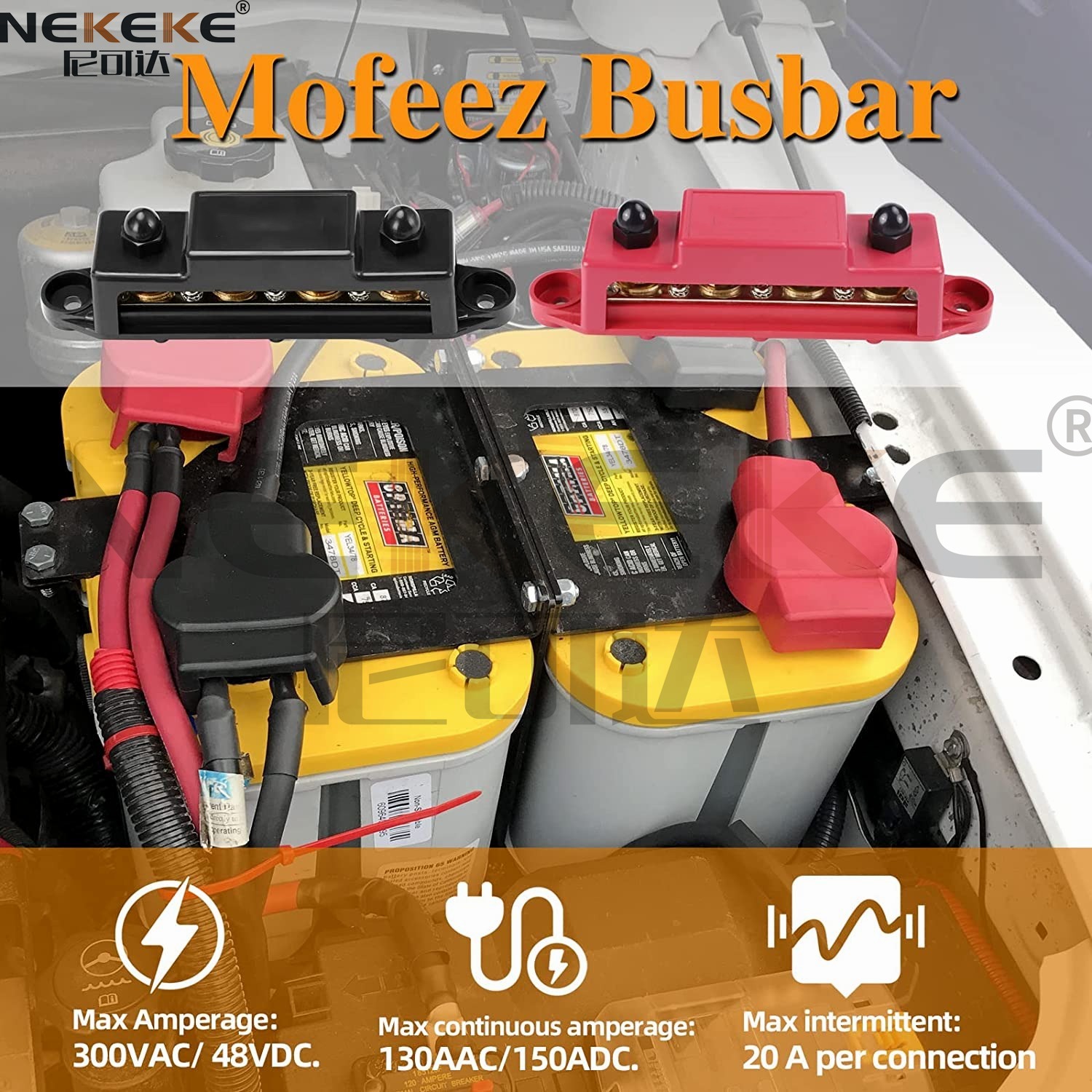

  • Rated 130A AC / 150A DC for dependable power distribution
  • Works with 300V AC / 48V DC systems in boats, RVs, and vehicles
Technical Parameters
Product Name Marine Bus Bar
Model Number BB1916C-4P
Brand Name NEKEKE
Max Voltage 300V AC/48V DC
Continuous Rating 130A AC/150A DC
Studs and Screws Stainless Steel
Screws Size 8 x M4
Studs Size 2 x M6
Application Distribution Line
Color Black & red
Connection Method Push-in Connection
BB1916C-4P Custom Anti Rust Marine Bus Bar 300V AC 48V DC Terminal Block Boat Yacht Auto BB1916C-4P Custom Anti Rust Marine Bus Bar 300V AC 48V DC Terminal Block Boat Yacht Auto BB1916C-4P Custom Anti Rust Marine Bus Bar 300V AC 48V DC Terminal Block Boat Yacht Auto BB1916C-4P Custom Anti Rust Marine Bus Bar 300V AC 48V DC Terminal Block Boat Yacht Auto BB1916C-4P Custom Anti Rust Marine Bus Bar 300V AC 48V DC Terminal Block Boat Yacht Auto
Typical Applications

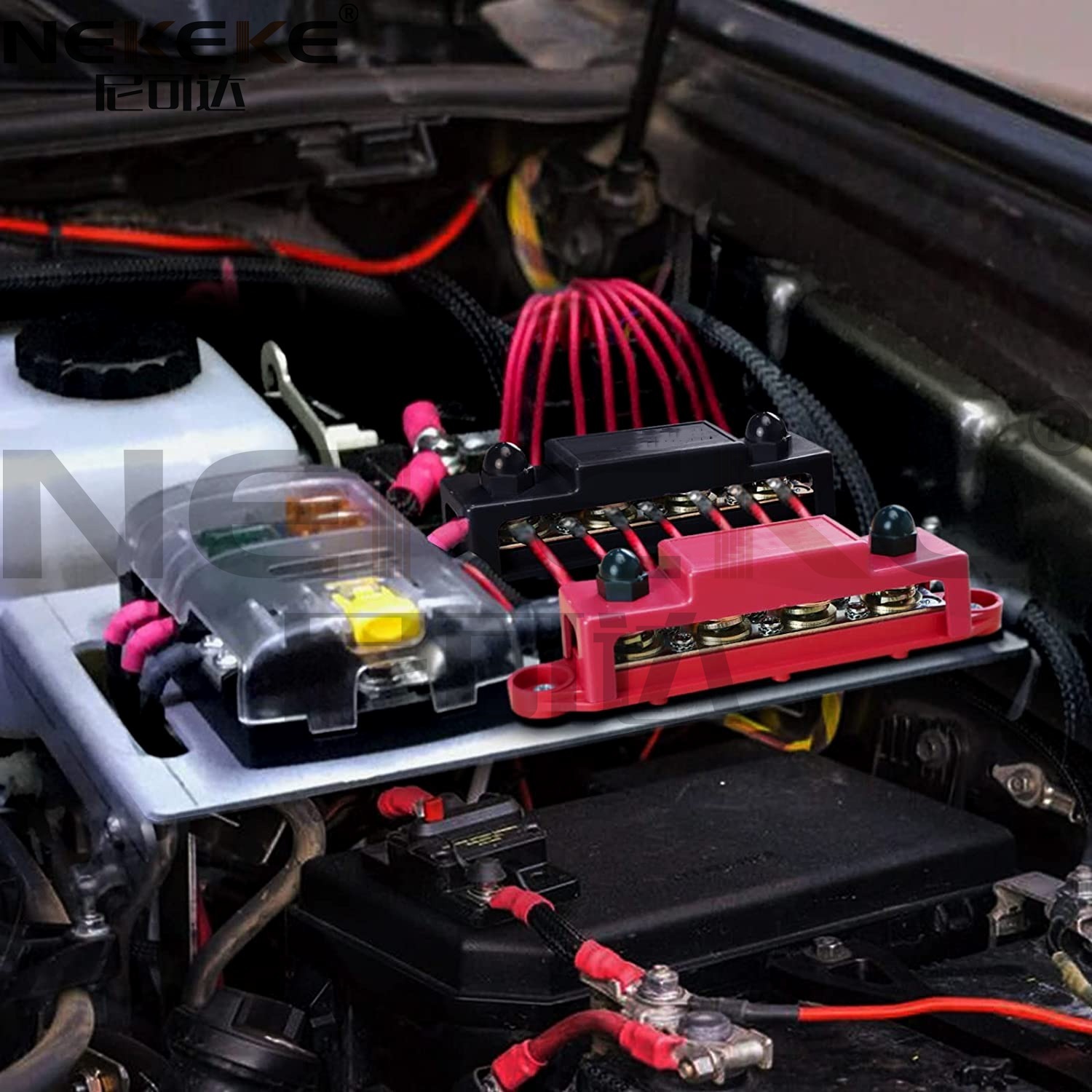

  • Boat and yacht electrical systems for battery and load distribution
  • Marine equipment power splitting and terminal connection
  • Caravan and RV 12V/24V auxiliary power networks
  • Automobile aftermarket wiring and terminal block installation
Quality and Service
  • Strict incoming material inspection and batch quality control
  • Custom sizes, colors, and terminal configurations available on request
  • Secure export packaging for safe worldwide delivery
  • Responsive technical support for wiring and installation questions
  • Sample orders welcome for evaluation before bulk purchase
Frequently Asked Questions
What is the maximum rating of the BB1916C-4P?
It is rated for 300V AC / 48V DC with a continuous current of 130A AC / 150A DC, suitable for most boat and vehicle power distribution needs.
What materials is the bus bar made of?

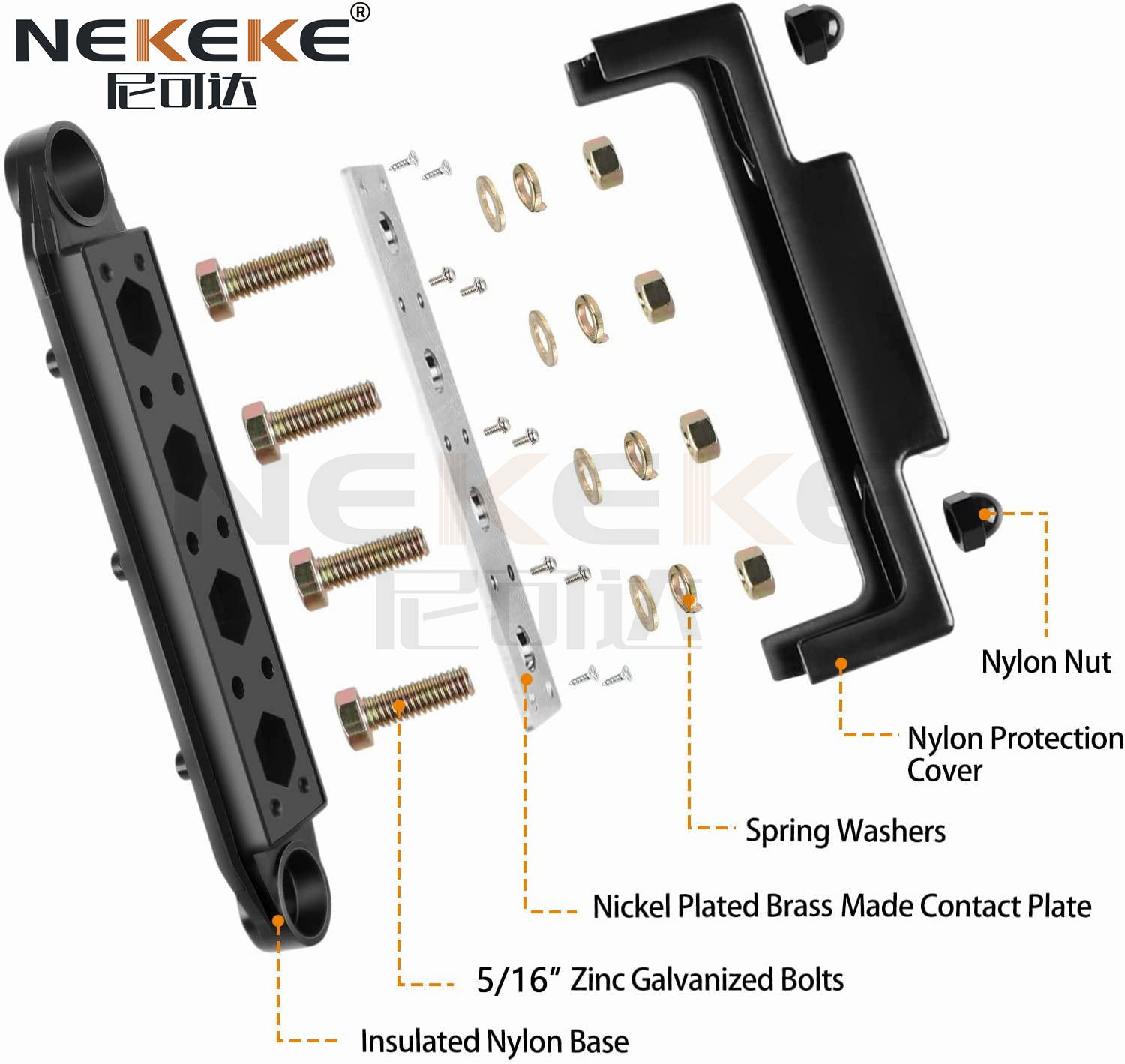

The contact plate is nickel-plated copper for low resistance, while the housing combines nylon and PC with stainless steel screws and studs for corrosion resistance.
Is it suitable for marine environments?
Yes, the anti-rust design and protective cover make it ideal for boats and yachts exposed to moisture, salt spray, and humidity.
What terminal sizes are available?
This model is equipped with 8 x M4 screws and 2 x M6 studs, offering flexible connection options for different cable sizes.
Do you offer customized bus bars?
Yes, we can customize dimensions, ratings, colors, and terminal layouts according to your drawings or samples, including mold development if needed.
