BB1928C-3P Waterproof Marine Bus Bar Terminal Block with 300V AC/48V DC Rating and Flame Retardant PA66 Base
BB1928C-3P Waterproof Marine Bus Bar Terminal Block with 300V AC/48V DC Rating and Flame Retardant PA66 Base
BB1928C-3P Waterproof Marine Bus Bar Terminal Block with 300V AC/48V DC Rating and Flame Retardant PA66 Base
BB1928C-3P Waterproof Marine Bus Bar Terminal Block with 300V AC/48V DC Rating and Flame Retardant PA66 Base
BB1928C-3P Waterproof Marine Bus Bar Terminal Block with 300V AC/48V DC Rating and Flame Retardant PA66 Base
BB1928C-3P Waterproof Marine Bus Bar Terminal Block with 300V AC/48V DC Rating and Flame Retardant PA66 Base
BB1928C-3P Waterproof Marine Bus Bar Terminal Block with 300V AC/48V DC Rating and Flame Retardant PA66 Base
BB1928C-3P Waterproof Marine Bus Bar Terminal Block with 300V AC/48V DC Rating and Flame Retardant PA66 Base
BB1928C-3P Waterproof Marine Bus Bar Terminal Block with 300V AC/48V DC Rating and Flame Retardant PA66 Base
BB1928C-3P Waterproof Marine Bus Bar Terminal Block with 300V AC/48V DC Rating and Flame Retardant PA66 Base
Specifications
Model Number :
BB1928C-3P
Continuous Rating :
130A AC / 150A DC
Price :
Negotiable
Cover Material :
Polycarbonate (PC)
Place of Origin :
China
Delivery Time :
5-8 days
Waterproof :
Yes
Brand Name :
NEKEKE
Packaging Details :
Carton
Color :
Black & Red
Payment Terms :
T/T,Western Union
Studs and Screws :
Stainless Steel
Application :
Boat, Yacht, RV, Marine Equipment
Connection Method :
Push-in Connection
MOQ :
1 pcs
Max Voltage :
300V AC / 48V DC
Base Material :
PA66 (Flame Retardant)
Certification :
CE, RoHS
Description
BB1928C-3P Marine Bus Bar 300V AC/48V DC Terminal Block Power Distribution with Waterproof PC Cover
Product Overview

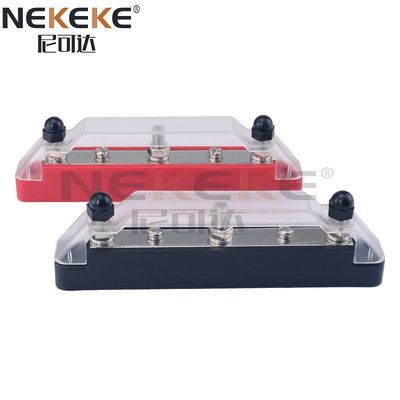

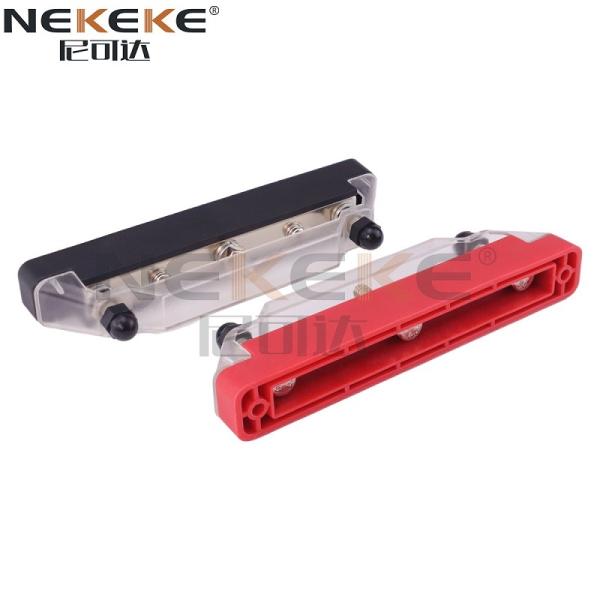

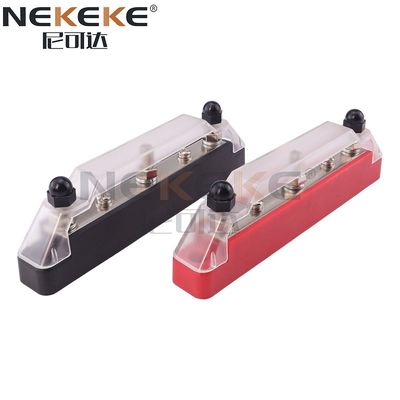

Model BB1928C-3P is a heavy-duty marine-grade power distribution bus bar engineered for reliable electrical management in boats, yachts, RVs, and other 12V-48V DC systems. Built with a flame-retardant PA66 base and a transparent polycarbonate protective cover, it keeps every terminal clean, insulated, and safe from moisture and dust even in harsh offshore environments.
Key Features
  • Corrosion-resistant construction: Nickel-plated copper contact plates resist rust and oxidation, ensuring stable conductivity and low energy loss over years of service.
  • Dustproof & splash-proof cover: The clear PC cap shields terminals from rain, salt spray, and accidental short circuits caused by loose tools or cables.
  • Tool-friendly wiring: Push-in connection design with stainless steel studs and screws allows fast, secure cable termination without special tools.
  • Heat-dissipation optimized: Enlarged contact surface lowers contact resistance and keeps temperature rise under control at continuous loads up to 150A DC.
BB1928C-3P Waterproof Marine Bus Bar Terminal Block with 300V AC/48V DC Rating and Flame Retardant PA66 Base

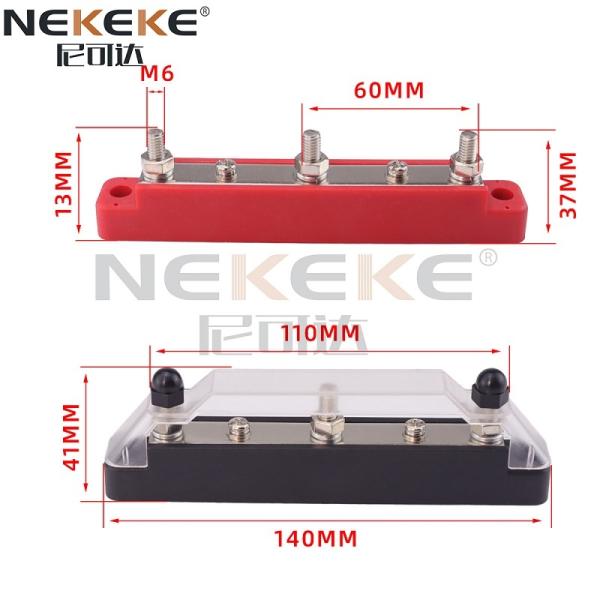

Technical Specifications
Parameter Value
Product Name Marine Bus Bar (3-Position)
Model Number BB1928C-3P
Base Material PA66 (Flame Retardant)
Cover Material Polycarbonate (PC)
Max Voltage 300V AC / 48V DC
Continuous Rating 130A AC / 150A DC
Studs & Screws Stainless Steel
Screws Size 8 x M4
Studs Size 2 x M6
Waterproof Yes (Covered Terminals)
Connection Method Push-in Connection
Color Black & Red
BB1928C-3P Waterproof Marine Bus Bar Terminal Block with 300V AC/48V DC Rating and Flame Retardant PA66 Base
Applications
Ideal for power distribution and circuit separation in automobiles, boats, yachts, marine equipment, caravans, and RVs. Whether you are rewiring a fishing boat console, upgrading a yacht battery bank, or organizing a caravan 12V distribution panel, the BB1928C-3P provides a neat, safe, and expandable solution.
OEM & Customization Service
We support OEM/ODM orders: custom terminal layouts, stud/screw sizes, color options, logo marking, and private-label packaging are all available. Our engineering team can also develop molds and fixtures based on your samples or drawings. With a weekly supply capacity of 500 pcs and delivery within 5-8 days, we are ready to support both trial orders and volume programs.
BB1928C-3P Waterproof Marine Bus Bar Terminal Block with 300V AC/48V DC Rating and Flame Retardant PA66 Base
Frequently Asked Questions
Q1: What is the minimum order quantity?
A: The MOQ is 1 piece, which makes it easy to test the product before placing a bulk order.
Q2: How do you pack the bus bars?
A: Each unit is protected in sturdy cartons; custom branded packaging is available with your authorization letter.
Q3: Which payment methods do you accept?
A: We accept T/T and Western Union. Photos of goods and packing are shared before final payment.
Q4: What delivery terms can you offer?
A: EXW, FOB, CFR, CIF, and DDU are all available based on your shipping requirements.
Q5: Can you produce according to my samples?
A: Yes. We manufacture per your samples or technical drawings and can create necessary molds and fixtures.
