Offshore Hydraulic Telescopic Boom Crane 12m/Min
Offshore Hydraulic Telescopic Boom Crane 12m/Min
Specifications
Brand Name :
OUCO
Model Number :
OUCO-0.85T31M-TB
Certification :
CCS/ABS/BV/ISO9001
Place of Origin :
Jinagsu. China
MOQ :
1 set
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
25 sets per year
Delivery Time :
60 working days
Packaging Details :
Shipping Container/Wood Crate/nude
SWL :
SEE LOAD CHART
Max.working radius :
25m
Min.working radius :
3.5m
Hoisting height :
30m
Hoisting speed :
0-12m/min
Slewing angle :
360°
Power :
45kw
Speed :
1480r/min
Description

0.85T31M telescopic boom crane hydraulic offshore base crane

Product description

OUCO 0.85T31M straight arm marine crane: within the 0.85T load range, 31M lifting points can be used.
Hydraulic cranes use stable hydraulic components. The crane adopts full hydraulic drive, stable operation, adjustable speed level, 360-degree rotation, compact structure, combined electro-hydraulic control and manual control, and is easy to operate and use.
The design of the crane and all associated components/equipment must comply with the requirements of the major classification societies.
On request.
The crane must be welded or bolted to the deck of the boat for installation testing and adjustment. Welders have also obtained international welding certificates.

Main Features and advantages

The advantages of telescopic cranes are light weight, simple design and easy maintenance.
Such offshore cranes are particularly widely used on oil service vessels and offshore oil platforms.
Designed for harsh working environments. Compatible with the design of OUCO marine telescopic cranes.
We can also make various customizations according to customer requirements.

Technical Specification

SWL see load chart
Working Radius 3.5~25m
Hoisting Speed 0-12m/min
Hoisting Height 30m
Slewing Speed ~0.7r/min
Slewing Angle 360°
Luffing Time ~70s
Luffing angle 0-75°
Design Temperature -10° - +45 °
Tirm ≤2°
Heel ≤5°
Power 45KW
Oil flow 100L/min

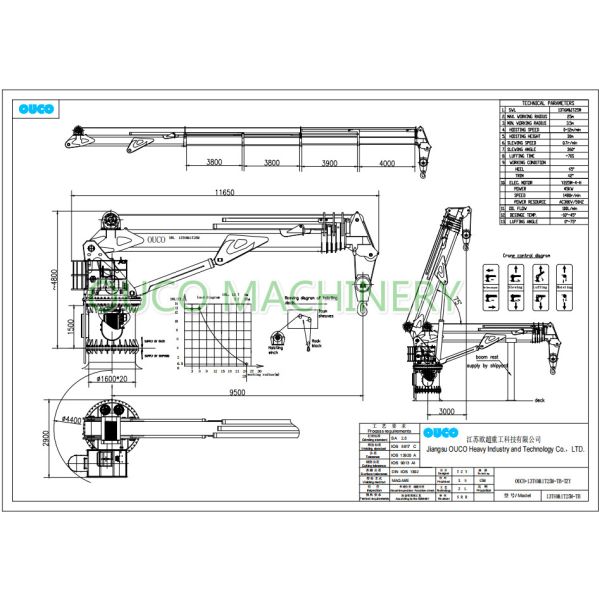

General Arrangement

Offshore Hydraulic Telescopic Boom Crane 12m/Min

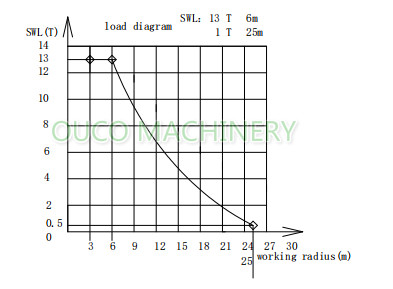

Load chart

Offshore Hydraulic Telescopic Boom Crane 12m/Min

Product Picture

Offshore Hydraulic Telescopic Boom Crane 12m/Min

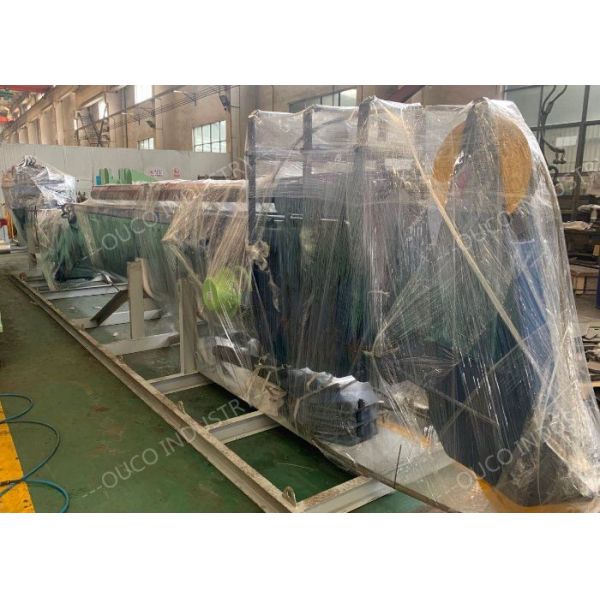

Packing&Shipping

Offshore Hydraulic Telescopic Boom Crane 12m/Min

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Packing
container
Delivery
Standard product : 1month
Customized product: 2 months
Certified products: 3-4 months

For more details, please feel free to contact me us.

Offshore Hydraulic Telescopic Boom Crane 12m/Min
