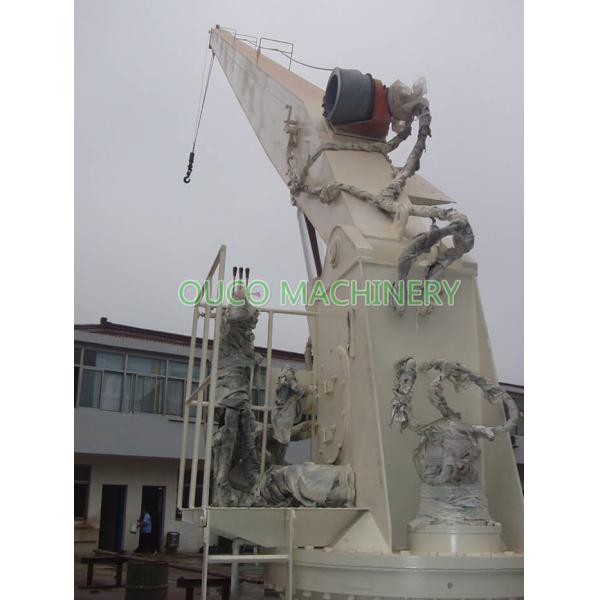

Hydraulic Pedestal Crane 6T@10M Offshore Stiff Boom Crane for Cargo Lifting

Product description

The stiff boom cranes can be delivered within a broad range of certifications and numerous optional features. Stiff boom cranes, the boom type is fixed, are typically used in dock, on fixed installations and in harbor conditions with its stability. The hydraulic davit crane is the perfect solution for standard, ordinary lifting & Small size Offshore Hydraulic telescopic and folding arm marine cranes with for sale ABS Certification handling needs. OUCO Marine/Offshore Stiff boom cranes are with low cost, easy operation and high efficiency on different working conditions.

SB series crane is designed as an electro-hydraulic driven stiff box type boom/jib crane, with integrated electro-hydraulic power unit, delivered as a complete unit ready for installation to vessels. The crane is equipped with hydraulic operated winch, hydraulic operated luffing and hydraulic operated slewing system.

Main Features and advantages

1. Easy maintenance at all situation;
2. Self contained unit with integrated hydraulic power pack.
3. Fail-safe brakes on all movements.
4. The variable speed hoist will automatically adjust to the highest possible speed for the appropriate load.
5. Base on many year's design and fabrication experience of crane and other similar equipment.
6. Suitable for all kinds of ships and low power consumption and high efficiency.

Technical Specification

General Arrangement

Customer Bulid

OUCO factory specializes in crane field for over 10 years. OUCO can design and manufacture any type cranes based on your requirements.

Standard equipment

# 360 C* continuous rotation.

# -10 C*----+45 C* working temperature.

# certified A36 & S690 steel structure.

# pedestal ready for mounting or weld to vessel main structure .

# stainless steel grease nipples.

# precise step less speed control.

# simultaneous operations of 2 or more function.

# emergency for hydraulic stop device.

# visual and audible warning alarm

Optional equipment
# lower temperature package up to -40 C*.
# certification for personal lifting.
# wireless romote control
# operator cabin with AC and heating.
# ATEX package and certification.
# man riding winch.
# centralized grease system.
# multiple setting of load limiting system.
# automatic overload protection system .
# warning and working lights.
# load indicator system.
# other upon request.

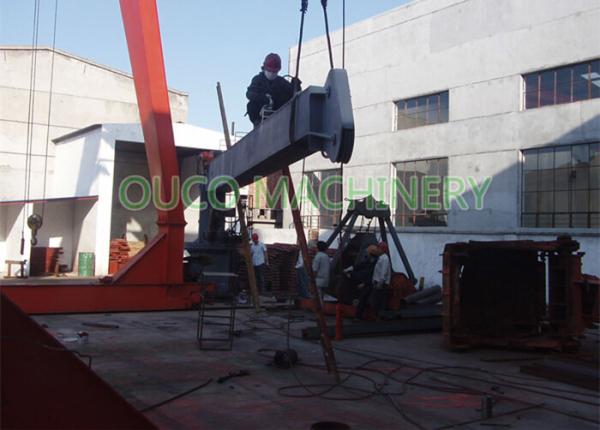

Detailed Images

FAQ

Q: What’s working radius of your crane?
A: From 1m to 100m, we can design and make according to your requirement.

Q: Which crane type should I choose?
A: We have foldable boom, knuckle boom, telescopic boom, stiff boom, etc.

Q: Can this crane be explosion proof?
A: Sure, we can equip any extra function based on your requirement.

Q: Does your crane have safety devices?
A: Of course, we have all cut off limits and alarms for safety reasons.

Q: How can I install the crane to my vessel?
A: We can send our service engineers to the vessel site for guiding or ship the crane in whole piece.
