Hydraulic Telescopic Knuckle Boom Marine Jib Crane
Hydraulic Telescopic Knuckle Boom Marine Jib Crane
Hydraulic Telescopic Knuckle Boom Marine Jib Crane
Hydraulic Telescopic Knuckle Boom Marine Jib Crane
Hydraulic Telescopic Knuckle Boom Marine Jib Crane
Hydraulic Telescopic Knuckle Boom Marine Jib Crane
Hydraulic Telescopic Knuckle Boom Marine Jib Crane
Hydraulic Telescopic Knuckle Boom Marine Jib Crane
Specifications
Brand Name :
OUCO
Model Number :
OUCO-3T10M&0.7T21M-KBT
Certification :
ABS/CCS/BV/ISO9001
Place of Origin :
Jiangsu. China
MOQ :
1 set
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
20 sets per year
Delivery Time :
60 working days
Packaging Details :
Shipping Container/Wood Crate/nude
Product name :
Hydraulic Knuckle Telescopic Boom Ship Deck Marine Jib Crane
SWL :
3T10M&0.7T21M
Working Radius :
3-21m
Hoisting Speed :
0-10m/min
Slewing Speed :
1r/min
Slewing Angle :
360°
Power resource :
AC380V/50HZ
Luffing time :
~70s
Description

Hydraulic Knuckle Telescopic Boom Ship Deck Marine Jib Crane

Product description

OUCO provide the 3T10M&0.7T21M folding crane, which have several lifting points, 3T10M ,0.7T21M .

Folding boom crane is a kind of special purpose crane to carry out transportation operations in the maritime environment. They are mainly used for the transportation of goods between ships, the supply of sea, the delivery and recycling of object during underwater operations.
Dute to special applicable condition and harsh operation environment, the knuckle boom crane is required to feature reliable performance, accute control, high security and durable structure.


advantage of OUCO foldable mini crane for sale
* Flexible and reliable action

* Easy to operate

* higher quality hydraulic system

* Suitable for operations at sea .

Technical Specification

SWL
3T10M&0.7T21M
Max.working radius
21M
Min.working radius
3M
Hoisting height
30M
Hoisting speed
10m/min(whole burden)
20m/min (light hook)
Slewing speed
1r/min
Slewing angle
360°
HPU 37 KW
Luffing angle 0- 75 °
Design temperature -10~+45 °
Working condition heel≤5° trim≤2°
Dead Weight
6.5t
Protect class IP 56

Brand OUCO
Spare parts 1 set ( If needed, more spare parts are available to be provided according to customers' requirements )
Warranty 1 year( If needed, warranty time is available to be extended according to customers' requirements )

Drawing

Hydraulic Telescopic Knuckle Boom Marine Jib Crane

Hydraulic Telescopic Knuckle Boom Marine Jib Crane

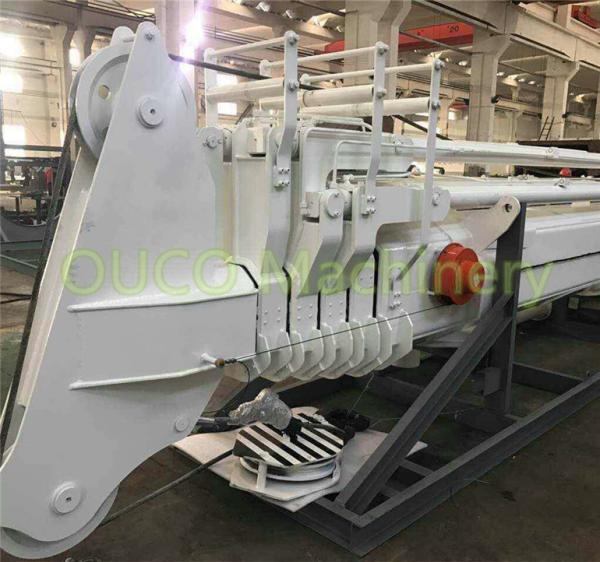

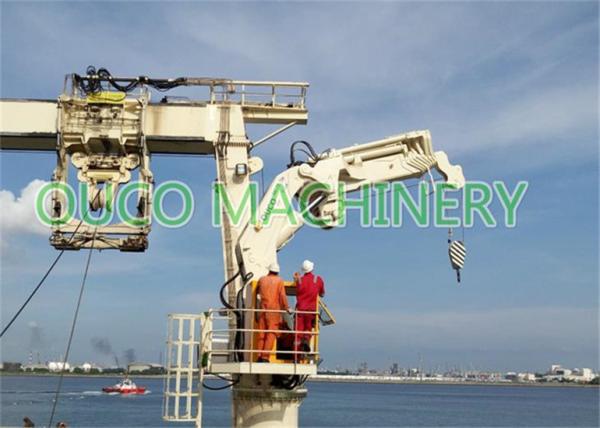

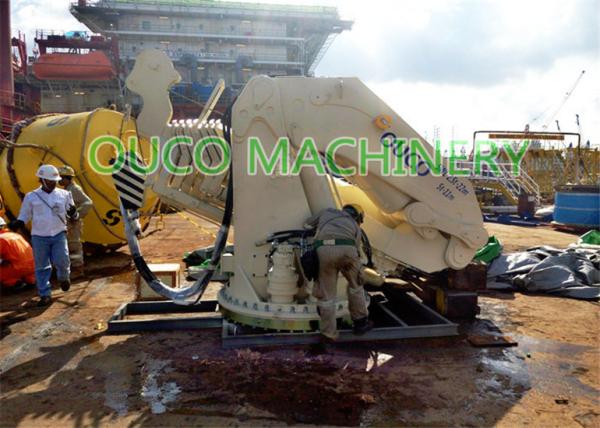

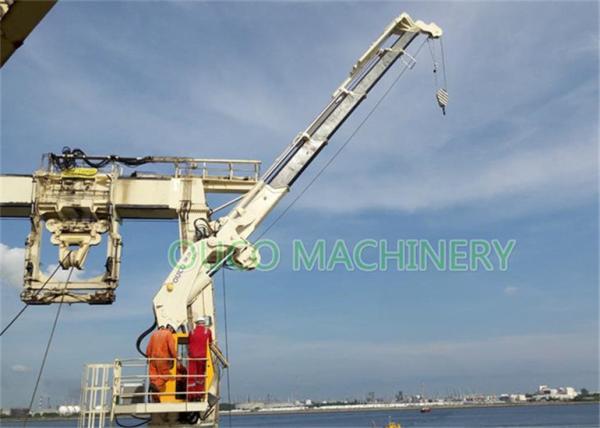

Detailed Images

Hydraulic Telescopic Knuckle Boom Marine Jib Crane

Hydraulic Telescopic Knuckle Boom Marine Jib Crane

Packing

Hydraulic Telescopic Knuckle Boom Marine Jib Crane

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Packing
container
Delivery
Standard product : 1month
Customized product: 2 months
Certified products: 3-4 months

FAQ

1.Q: What's the working radius of your crane?
A: From 1m to 100m, we can also design and manufacture cranes according to your requirements.

2. Q: Which crane type should I choose?
A: We have foldable boom, knuckle boom, telescopic boom, stiff boom, etc.

3. Q: Is this crane explosion-proof?
A: Sure, we can equip any extra function based on your requirement.

4. Q: Does your crane have safety devices?
A: Of course, we have all cut off limits and alarms for safety reasons.

5. Q: How can I install the crane to my vessel?
A: We can send our service engineers to the vessel site for guiding or ship the crane in whole pieces.

For more details, please feel free to contact us.
