Specifications
Brand Name :
OUCO
Model Number :
OUCO-5T13.5M-SB-00
Certification :
ABS/CCS/ISO9001/BV
Place of Origin :
Jiangsu. China
MOQ :
1 set
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
50 sets per year
Delivery Time :
60 working days
Packaging Details :
Shipping Container/Wood Crate/nude
SWL :
5T@13.5M
Working Radius :
3~13.5m
Hoisting Speed :
0~10m/min
Hoisting Height :
25m
Slewing Speed :
~0.8r/min
Slewing Angle :
360°
Luffing Time :
~ 45s
Extension Time :
~150s
Description

5T13.5M Straight Boom Pedestal Marine Deck Crane Lifting Cargo Crane

Product description

This kind of fixed/stiff boom crane is designed for general cargo handling and service onboard ships and offshore units. The cranes are available in various range and can be supplied according to customer requirements. The stiff boom cranes can be delivered within a broad range of certifications and numerous optional features. Stiff boom cranes, the boom type is fixed, are typically used in dock, on fixed installations and in harbor conditions with its stability. OUCO Marine/Offshore Stiff boom cranes are with low cost, easy operation and high efficiency on different working conditions.

Main Features and advantages

1. Easy maintenance at all situation;

2. Self contained unit with integrated hydraulic power pack.
3. Fail-safe brakes on all movements.
4. Fully enclosed and equipped operator cabin with air condition.
5. The variable speed hoist will automatically adjust to the highest possible speed for the appropriate load.
6. Base on many year's design and fabrication experience of crane and other similar equipment.
7. Suitable for all kinds of ships and low power consumption and high efficiency.

8. Welded and high strength box boom for easy maintenance.

9. With Many safety protection devices---hook up limiter and overload limiter, emergency stop button.

Technical Specification

SWL

5T@13.5M
Working Radius 3~13.5m
Hoisting Speed 0~10m/min
Hoisting Height 25m
Slewing Speed ~0.8r/min
Slewing Angle 360°
Luffing Time ~ 45s
Extension Time ~150s
Tirm ≤2°
Heel ≤5°
Motor Type Y160K-4-H
Motor Power 30KW
Motor Speed 1460r/min
Power source AC440V, 60Hz, 3P
Protect Class IP56
Insulate Class F
Working Type

S1

General Arrangement

marine pedestal stiff boom crane with low power consumption for cargo unloading

Customer Bulid

OUCO factory specializes in crane field for over 10 years. OUCO can design and manufacture any type cranes based on your requirements.

Brand OUCO
Spare parts 1 set ( If needed, more spare parts are available to be provided according to customers' requirements )
Warranty year( If needed, warranty time is available to be extended according to customers' requirements )

Standard equipment

# 360 C* continuous rotation.

# -10 C*----+45 C* working temperature.

# certified A36 & S690 steel structure.

# pedestal ready for mounting or weld to vessel main structure .

# stainless steel grease nipples.

# precise step less speed control.

# simultaneous operations of 2 or more function.

# emergency for hydraulic stop device.

# visual and audible warning alarm


Optional equipment
# lower temperature package up to -40 C*.
# certification for personal lifting.
# wireless romote control
# operator cabin with AC and heating.
# ATEX package and certification.
# man riding winch.
# centralized grease system.
# multiple setting of load limiting system.
# automatic overload protection system .
# warning and working lights.
# load indicator system.
# other upon request.

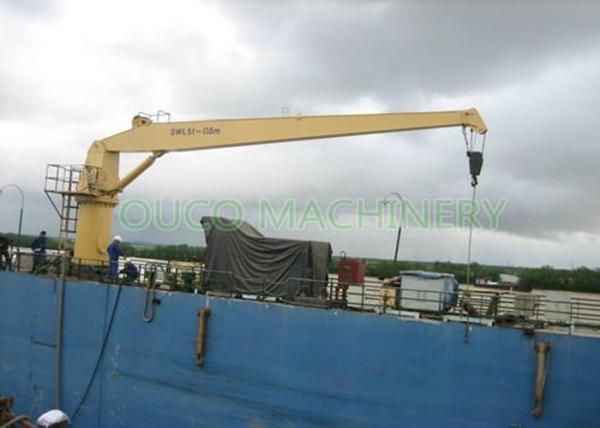

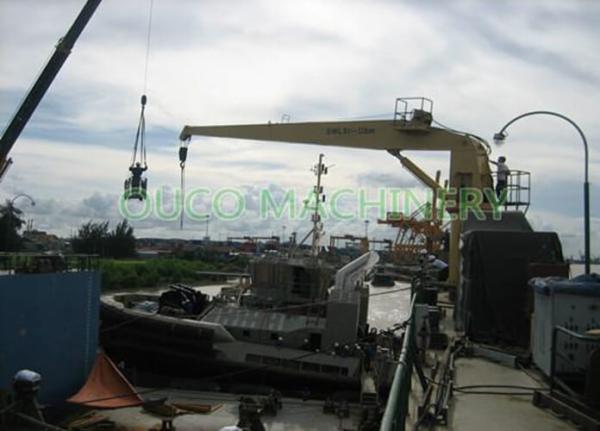

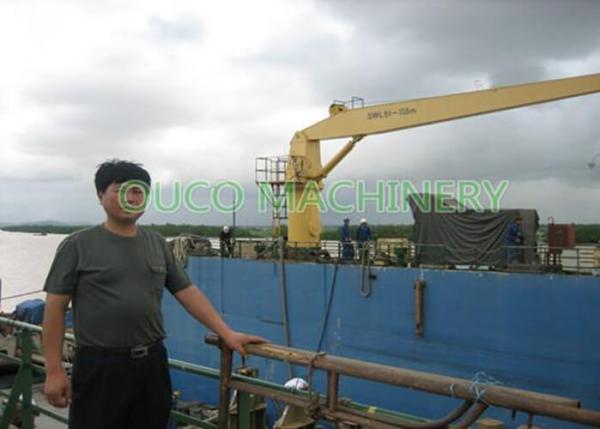

Detailed Images

marine pedestal stiff boom crane with low power consumption for cargo unloading

marine pedestal stiff boom crane with low power consumption for cargo unloading

marine pedestal stiff boom crane with low power consumption for cargo unloading

Packing&Shipping

marine pedestal stiff boom crane with low power consumption for cargo unloading

FAQ:

Q: What’s working radius of your crane?
A: From 1m to 100m, we can design and make according to your requirement.

Q: Which crane type should I choose?
A: We have foldable boom, knuckle boom, telescopic boom, stiff boom, etc.

Q: Can this crane be explosion proof?
A: Sure, we can equip any extra function based on your requirement.

Q: Does your crane have safety devices?
A: Of course, we have all cut off limits and alarms for safety reasons.

Q: How can I install the crane to my vessel?
A: We can send our service engineers to the vessel site for guiding or ship the crane in whole piece.
