360 Degree Slewing Ship Deck Crane Pedestal Straight Boom
360 Degree Slewing Ship Deck Crane Pedestal Straight Boom
Specifications
Brand Name :
OUCO
Model Number :
OUCO-6T18M-SB
Certification :
CCS/ABS/BV/ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
50 sets per year
Delivery Time :
30~60 days
Packaging Details :
Shipping Container/Wood Crate/nude
Quality :
High
Color :
Support customization
Condition :
New
Model :
OUCO-6T18M-SB
SWL :
6T18M
Function :
Lifting material
Application place :
Deck,Barge,Fish ship, Sea port etc
Test video :
Provided
Description

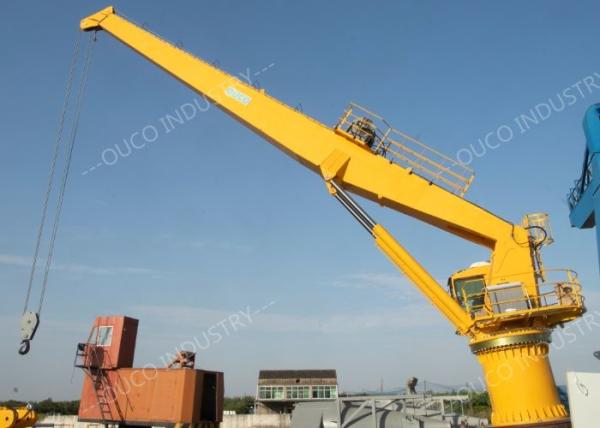

6T18M Ship Deck Crane 360° Slewing Pedestal Straight Boom

Product description

This crane is a hydraulic swivel and jib crane for lifting a variety of marine cargo, garbage and underwater equipment, as well as for other special purposes and water work.

It consists of an oil cylinder, an oil tank, a crane lifting mechanism, and a boom roughing mechanism. Lifting, rotating and luffing are driven by hydraulic systems.

Marine crane consists of stiff boom, base, rotating bearing, column, operating platform, winch, pulley, wire rope, hook, etc.

Advantages

* Flexible and reliable action

* Easy to operate and maintain

* Use a wide range of functions.

* Low price and easy replacement of parts.

* Short delivery time.

Technical specification

SWL 6T18M
Max.working radius 18M
Min.working radius 5.5m
Hoisting speed 0-12m/min
Hoisting height 30m
Slewing speed 0.7r/min
Slewing angle 360°
Luffing time ~70s
Heel ≤5°
Trim ≤2°
Motor Power 55KW
Speed 1480rpm
Power resourse AC 380V/50HZ/3P
Protect Class IP56
Oil flow 100L/Min
Luffing angle 0-75°

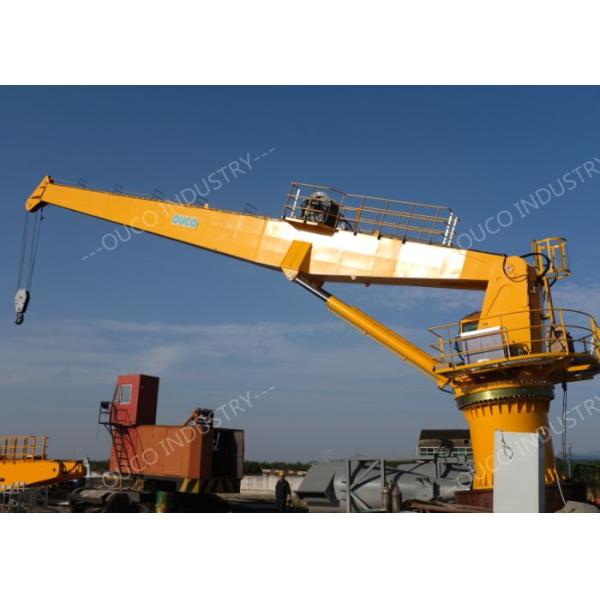

Design Drawing And Detailed Photos

360 Degree Slewing Ship Deck Crane Pedestal Straight Boom

360 Degree Slewing Ship Deck Crane Pedestal Straight Boom

360 Degree Slewing Ship Deck Crane Pedestal Straight Boom

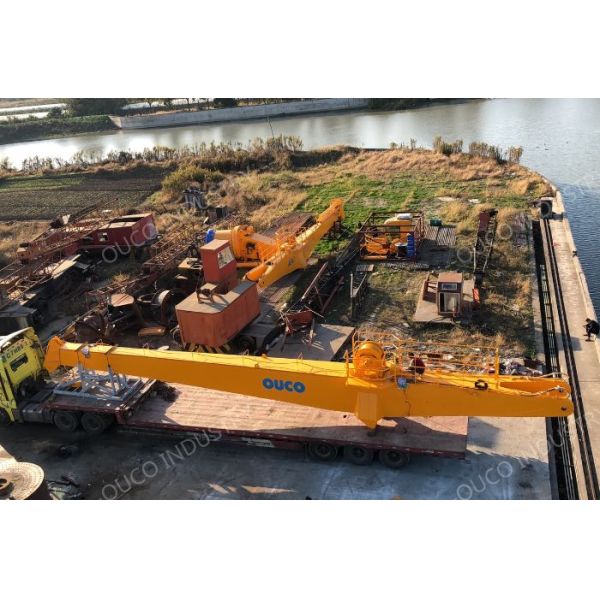

Packing

360 Degree Slewing Ship Deck Crane Pedestal Straight Boom

Packing
container
Delivery
Standard product : 1month
Customized product: 2 months
Certified products: 3-4 months

To better ensure the safety of your goods, professional, environmentally friendly, convenient and

efficient packaging services will be provided.

PLEASE FEEL FREE TO CONTACT US IF YOU ARE INTERESTED!

360 Degree Slewing Ship Deck Crane Pedestal Straight Boom
