Specifications
Brand Name :
OUCO
Model Number :
OUCO-5T6M-EC-00
Certification :
CCS
Place of Origin :
JIANGSU
MOQ :
1
Price :
negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
50 per year
Delivery Time :
40 days
Packaging Details :
Shipping Container/Wood Crate/nude
Product name :
Marine stiff boom crane
Function :
Lifting cargoes
Condition :
New
Color :
Customer Requirement
After sales service :
Engineers available overseas
Warranty :
12 months
Weight :
4.5t
Material :
Steel Structure
Description

Small Marine electrical stiff boom crane d crane deck nd advanced components

Product description:

Stiff boom cranes are most suitable for general cargo handling and for service on board ships and offshore units where there is ample deck space. These cranes are equipped with a winch for lifting and cannot be hydraulically extended and retracted, and they lack a knuckle function.

Thanks to their simple design, stiff booms offer a cheaper alternative to knuckle booms, both in final price and maintenance.

They are designed and manufactured in conformity with the current Marine Rules and they can be customized on request.


FAQ:

Q: What’s working radius of your crane?
A: From 1m to 100m, we can design and make according to your requirement.

Q: Which crane type should I choose?
A: We have foldable boom, knuckle boom, telescopic boom, stiff boom, etc.

Q: Can this crane be explosion proof?
A: Sure, we can equip any extra function based on your requirement.

Q: Does your crane have safety devices?
A: Of course, we have all cut off limits and alarms for safety reasons.

Q: How can I install the crane to my vessel?
A: We can send our service engineers to the vessel site for guiding or ship the crane in whole piece.

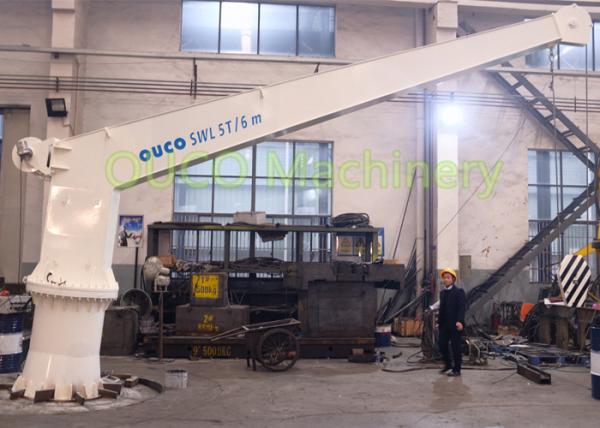

General Arrangement:
High Reliability Stiff Boom Crane , Marine Small Dock Crane Good Performance
Technial Specification:

SWL 5t@6m
Max Working Radius 6m
Min Working Radius 3m
Hoisting Speed 0~12m/min
Hoisting Height 12m
Slewing Speed ~0.6r/min
Slewing Angle 360°
Power Resource 415V, 50Hz
Tirm ≤2°
Heel ≤5°
Power 18.5KW
Protection Class IP56
Working Type S1

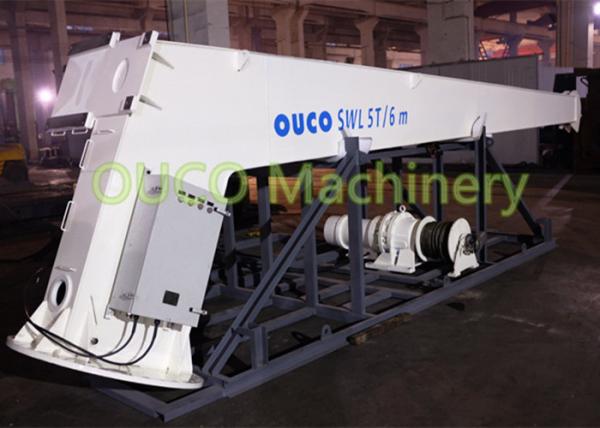

Production process at OUCO workshop:
High Reliability Stiff Boom Crane , Marine Small Dock Crane Good Performance

OUCO Exhibitions Worldwide:High Reliability Stiff Boom Crane , Marine Small Dock Crane Good Performance


Anything else? We will be pleased to answer all your questions and doubts.
