ABS Hull Marine Navigation Light Controller DC24V Signal Light Controller
ABS Hull Marine Navigation Light Controller DC24V Signal Light Controller
ABS Hull Marine Navigation Light Controller DC24V Signal Light Controller
ABS Hull Marine Navigation Light Controller DC24V Signal Light Controller
Specifications
Brand Name :
JV
Model Number :
JVL-109
Certification :
CCS
Place of Origin :
China
MOQ :
1Set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000Set/Month
Delivery Time :
20-30 days
Packaging Details :
Standard export package
Product name :
Navigation light, signal light controller
Power supply :
AC220V/DC24V
Environment Temperature: :
-10C ~ +55C
Relative Humidity: :
30%-90%
IP class :
IP20
Hull material :
ABS
Installation :
Flush type
Colour :
Black
Description

Marine Navigation Light / Signal Light Controller With CCS Cert Navigation Light Controller

Specific Usage:
Relative Humidity : ≤95% (40°C )
Air pressure: 86kPa~ 106 kPa
Bulb Rated Power: 5~65W
Bulb Voltage: DC24V or AC 220V (optional)
Normal Usage:
Environment Temperature: -10°C ~ +55°C
Relative Humidity: 30% ~ 90%
Air Pressure: 86kPa ~ 106 kPa
Spare Power: DC24V (18- 36V)
Main Power: AC220V ( 110V~ 240V) 50Hz
Controller Static Power Consumption: 220V 200mA

No Name Model Weight IP class
1 Navigation light controller (double) DK-2H 2.4kg IP20
2 Signaling and flashing light controller DK-XS 2.42kg IP20

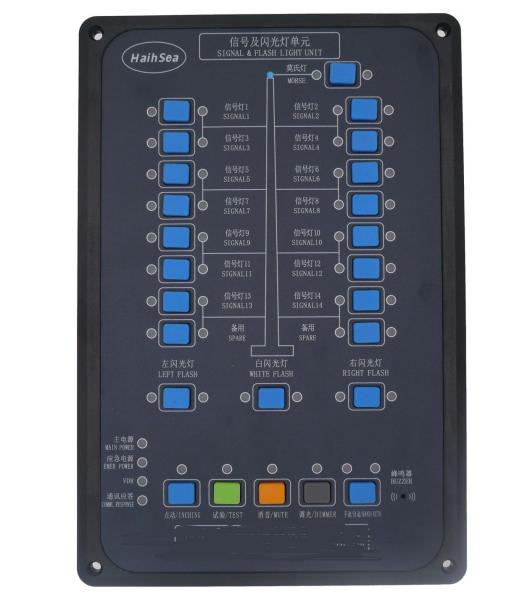

As the latest navigation light and signal light controller (DK series), this system can monitor and display the on/off status of 20 navigation lights, 16 signal lights, 1 morse light, and 3 flashing lights. Once the system is connected to the lights, the controller can open and close all the lights with one press. When any light is off, the LED indicator in the panel will flash and the buzzer starts to work. After pressing the mute key, the abnormal light will be on and the malfunction needs to be solved. If not solved, spare lights should be used. Besides, the controlling lights can be dimmer with different light intensities considering the different weather and time which is very humanizing.
