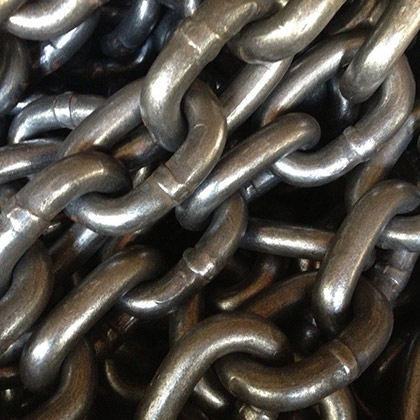

Diameter 20mm 40mm Steel Grade 2 Studless Anchor Chain
Diameter 20mm 40mm Steel Grade 2 Studless Anchor Chain
Diameter 20mm 40mm Steel Grade 2 Studless Anchor Chain
Diameter 20mm 40mm Steel Grade 2 Studless Anchor Chain
Specifications
Brand Name :
JV
Model Number :
JVL-2
Certification :
CCS,BV,LR,ABS,KR
Place of Origin :
China
MOQ :
100meters
Price :
$6.5/meter
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000meters/Month
Delivery Time :
25-45days
Packaging Details :
Standard export package
Material :
Steel
Color :
Black
Size :
Customized
Application :
Marine/Ship/Vessel
Product name :
China marine accessories
Diameter :
16-130mm
Packing :
Standard Exported Package
Warranty :
12 months
Description

Marine Boat Accessory Ship Steel Grade 2 U3 Anchor Chain 20mm 40mm Studless Anchor Chain

Features:


* Three materials for your reference: Carbon steel, stainless steel, Galvanized steel
* Can be customized according to customer needs
* 24-hour online service
* For more details, please feel free to contact Customer Service.

1. Marine ship yacht boat light:

Navigation signal light, Incandescent light, Fluorescent light, Searchlight, Explosion-proof light, etc.

2. Marine deck:

Winch, Windlass, Capstan (AC, DC, Vertical, Horizontal, Electric, Hydraulic, etc.)

3. Marine deck mooring:

Anchor, Anchor chain.

4. Marine life-saving:

A rescue boat, Life Jacket, Buoy, etc.

5. Customized products according to customers' request.

Advantage:

We produce AM1, AM2, AM3 anchor chains, mooring chains, and other various specifications link chain from dia 6mm-130mm.

We also can provide all kinds of marine supporting products such as anchors, anchor chains, decking fittings, nd vessel machinery.

I. Packaging

1.Wooden Case; 2.Iron Frame; 3. According to customers' request;
II. Shipping
By Express/ Air/ Sea/ Train.

Q1: Why we choose you?

11 professional engineers can provide overall solution services.

13 years specializing in marine deck equipment.

18 long-term cooperation supporting factories.

24 hours a day after-sale technical support.

Q2: What kind of payments do you accept?

T/T, L/C, Western Union, D/A, D/P, MoneyGram, Paypal, etc..

Q3: How about the Delivery Time?

We could finish the production within 30 days

Q4: What's the MOQ?

MOQ is 1 set.

Contact Debbie Liu for more details!

Weight of Anchor Chian Fittings
Chain
Diameter
mm		 Stud Link Chain kg/27.5m Common
Link		 Enlarged
Link		 End
Link		 Kenter
Shackle		 Joining
Shackle		 End
Shackle		 Swivel Swivel
Shackle
A.SW.S(a)		 Swivel
Shackle
A.SW.S(b)
14 128 0.26 0.39 0.32 0.6 0.67 1.5 1.05 — —
16 150 0.35 0.49 0.57 0.65 0.95 1.52 1.34 — —
17.5 197 0.5 0.66 0.67 0.88 1.34 2.05 1.73 — —
19 236 0.66 0.85 1.06 1.13 1.84 2.41 2.17 — —
20.5 268 0.8 1.02 1.06 1.36 2.2 3.25 2.2 — —
22 324 1.04 1.3 1.58 1.64 2.66 3.95 3.5 17.5 7.6
24 370 1.3 1.65 1.84 2.13 3.4 5.12 4.53 17.5 9.9

Mechanical Properties

Anchor Chain

Grade
Yield Point
(N/mm2,min)
Tensile Strength
(N/mm2,min)
Elongation
(%,min)
Reduction of Area
(N/mm2,min)
Impact Test (V-notch)
Test Temperature (°C)
Impact (J, min)
2
≥295
490~690
≥22
—
0
≥40
3
≥410
≥690
≥17
≥40
0
≥60
≥50(weld)

Diameter 20mm 40mm Steel Grade 2 Studless Anchor ChainDiameter 20mm 40mm Steel Grade 2 Studless Anchor ChainDiameter 20mm 40mm Steel Grade 2 Studless Anchor Chain
