Replacement Exhaust Gas T- RH163 Marine diesel Turbocharger Complete
Replacement Exhaust Gas T- RH163 Marine diesel Turbocharger Complete
Replacement Exhaust Gas T- RH163 Marine diesel Turbocharger Complete
Replacement Exhaust Gas T- RH163 Marine diesel Turbocharger Complete
Replacement Exhaust Gas T- RH163 Marine diesel Turbocharger Complete
Replacement Exhaust Gas T- RH163 Marine diesel Turbocharger Complete
Replacement Exhaust Gas T- RH163 Marine diesel Turbocharger Complete
Replacement Exhaust Gas T- RH163 Marine diesel Turbocharger Complete
Replacement Exhaust Gas T- RH163 Marine diesel Turbocharger Complete
Replacement Exhaust Gas T- RH163 Marine diesel Turbocharger Complete
Specifications
Brand Name :
Marine Turbo
Model Number :
T- RH163
Certification :
ISO; CCS
Place of Origin :
Jiangsu, China
MOQ :
1 pcs
Payment Terms :
T/T
Supply Ability :
50 pcs / month
Delivery Time :
3-4 working days
Packaging Details :
Carton box, wood case
Model :
T- RH163
Product Name :
Marine turbocharger, marine turbocharger complete, T/C complete, turbocharger assembly
Size :
Standard Size,As customer's request
New or Second-hand :
New turbocharger replacement
Engine type :
Diesel engine
Compressor Type :
Radial flow compressor
Application :
Marine diesel engine
Warranty :
12 Months for fixed parts, 6 months for rotary parts
Description

Replacement Exhaust Gas T- T- RH163 Marine Diesel Turbocharger Complete

T- T- RH163 marine turbocharger:

T- T- RH163 marine turbocharger belongs to T- T- RH series turbocharger (T- T- RH133, 143, 163, 183 and 203), which consists of mixed flow turbine and radial flow compressor.

  • T- T- RH163 marine turbocharger is developed to match high-speed diesel engine.
  • Inboard plain bearing is lubricated by the engine oil system.
  • A seal ring and heat shield are mounted on the turbine side to avoid the gas to the bearings.
  • A seal plate and seal ring located in compressor side in order to prevent the air and oil leaking.
  • A thrust bearing to prevent the shaft moving due to the thrust force.
  • The turbocharging efficiency is 60%-62%, and its compressor pressure ratio up to 3.6.
  • T- T- RH series turbochargers are broadly used in automotive, heavy truck, construction, marine and industrial engine.

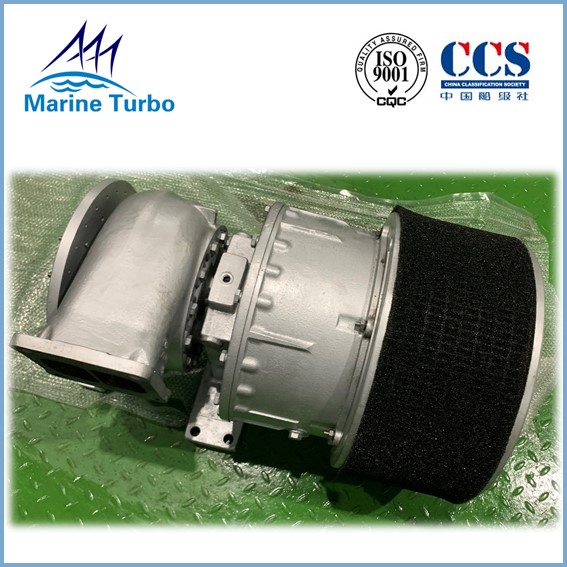

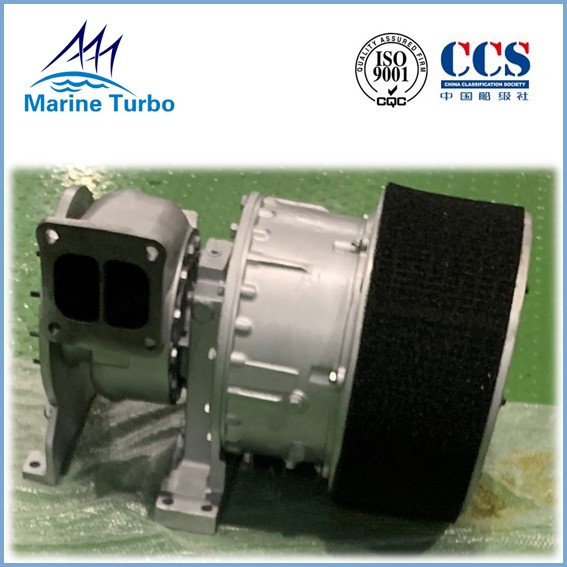

More picture of T- T- RH163 marine turbocharger:

Replacement Exhaust Gas T- RH163 Marine diesel Turbocharger Complete

Replacement Exhaust Gas T- RH163 Marine diesel Turbocharger Complete

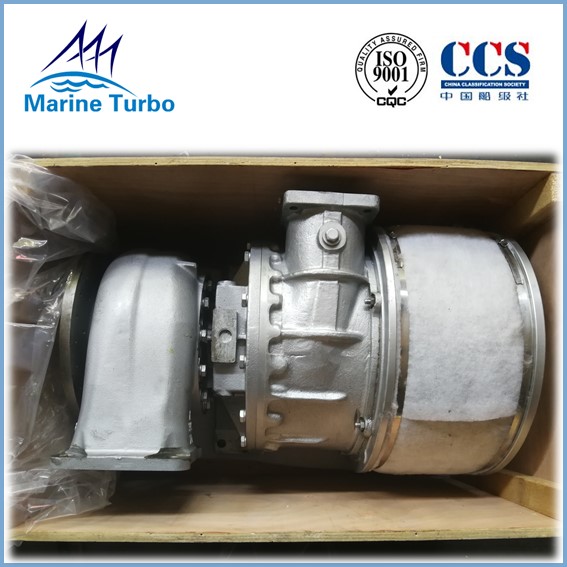

Packing picture:

Replacement Exhaust Gas T- RH163 Marine diesel Turbocharger Complete

T- T- RH163 turbocharger dimension and weight:

Complete TC Overall Dimension(mm) Weight
　 A B C D E (Kg)
T- T- RH163 981 537 362 426 533 159
Replacement Exhaust Gas T- RH163 Marine diesel Turbocharger Complete

Q&A:

Q1. How y days is the delivery time?

A: We usually have the semi-product in stock, so it usually need 3 working days for the processing and assembly of the turbocharger.

Q2. What is the nearest port?

A: The nearest port is Shanghai port.

Q3. Do you have the Warranty?

A. Yes, we have. The warranty is 12 months for fixed parts and 6 months for rotary parts.
