Specifications
weight (kg) :
1.5
machinery test report :
Not Available
Brand Name :
OEM/ODM
Applicable Industries :
CNC machining center
video outgoing-inspection :
Provided
Place of Origin :
Japan
Core Components :
Housing/Nut/Operating Rod:SUS303
Condition :
New
MOQ :
1 piece
Price :
$11.90-14.50 / piece
warranty :
1 Year
Machine Type :
Punching Machine, Milling Machine, lathe machine, Grinding Machine
Description
Products Description

Key Features

ZTS93 high precision sensor in CNC machines serves multiple purposes. The main function is to provide real-time feedback to the machine's control system, allowing it to monitor and adjust various parameters during the machining process.
Product Paramenters
Supply Voltage
DC12~24V
Stroke
8mm
Operating force
0.4N
Work point position [PT]
0.3~0.8mm
Differential [MD]
0.1mm or less
Repeat positioning accuracy
±0.01mm

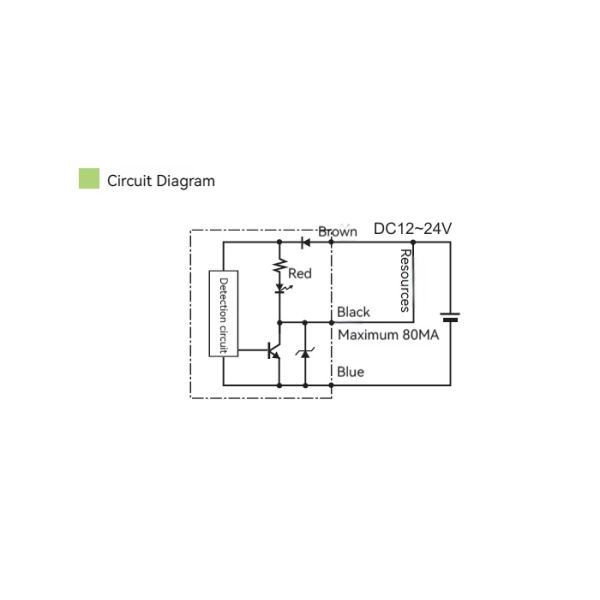

Output method
ZTS93.
ZTS93: NPN Normally open (ON for proximity)
ZTS93(B).
ZTS93(B): NPN normally closed (OFF at proximity)
Output current
80mA MAX
Current consumption
15mA MAX
Operating Frequency
Less than 60 times/minute
Withstanding Voltage
AC1000V
(1 minute, between the whole charging part and the case)
Insulation resistance
DC250V
(20MΩ or more, between the whole charging part and the case)
Operating Ambient Temperature
-20°C~+85°C (no condensation)
Working environment humidity
20~95%RH
Wire specification
Φ2.8x1m
ZTS93: Gray
ZTS93(B): Black
Material of operating rod
SUS303
Housing Material
Glass fiber reinforced resin (black)
Installation
M3 screw, tightening torque 0.3N-m
Indicator light
Red color
Protection class
IP65
Note) Do not apply more than 15N of force to the lever.
Details Images
High Precision 0.01mm ZTS93 Sensor IP65 CNC Machine Tool Contact Measuring Instrument Inductive Switch with Red Indicator Light
High Precision 0.01mm ZTS93 Sensor IP65 CNC Machine Tool Contact Measuring Instrument Inductive Switch with Red Indicator Light
High Precision 0.01mm ZTS93 Sensor IP65 CNC Machine Tool Contact Measuring Instrument Inductive Switch with Red Indicator Light
Product packaging
We usually use foam board with 3 cm thick to fill in all around the box inside to protect parts. We often use carton to pack the parts, but if it's too heavy, we'll use custom-wooden box to pack it. Package : carton or wooden box Lead time : 1-2 days All products can be shipped around the world via DHL, UPS, FedEx, TNT and more. The package is safe and green. If you have any special needs, please let me know.
High Precision 0.01mm ZTS93 Sensor IP65 CNC Machine Tool Contact Measuring Instrument Inductive Switch with Red Indicator Light
