High Precision Contactless Touch Switches DC5-24V 15mA MAX CNC Machine Inductive Proximity Sensor ZTSR10
High Precision Contactless Touch Switches DC5-24V 15mA MAX CNC Machine Inductive Proximity Sensor ZTSR10
High Precision Contactless Touch Switches DC5-24V 15mA MAX CNC Machine Inductive Proximity Sensor ZTSR10
High Precision Contactless Touch Switches DC5-24V 15mA MAX CNC Machine Inductive Proximity Sensor ZTSR10
High Precision Contactless Touch Switches DC5-24V 15mA MAX CNC Machine Inductive Proximity Sensor ZTSR10
High Precision Contactless Touch Switches DC5-24V 15mA MAX CNC Machine Inductive Proximity Sensor ZTSR10
High Precision Contactless Touch Switches DC5-24V 15mA MAX CNC Machine Inductive Proximity Sensor ZTSR10
High Precision Contactless Touch Switches DC5-24V 15mA MAX CNC Machine Inductive Proximity Sensor ZTSR10
Specifications
Brand Name :
OEM/ODM
Condition :
New
Core Components :
Housing/Operating lever: SUS303
Applicable Industries :
CNC machining center
Price :
$12-15 / piece
video outgoing-inspection :
Provided
Machine Type :
Punching Machine, Milling Machine, lathe machine, Grinding Machine
Marketing Type :
Ordinary Product
machinery test report :
Not Available
Place of Origin :
Guangdong, China
weight (kg) :
0.2
warranty :
1 Year
MOQ :
1 piece
Description
Products Description

Key Features

1) CNC router limit switch is small thing but important, your machine can not work without it, so you are suggested to have 2 pieces in stock in case of further replacement. 2) When you order the inductive proximity sensor for your cnc machine, please kindly clear the controller system details include brand and model.
Product Paramenters
Supply Voltage
DC5~24V
Stroke
0.7~1mm
Operating force
0.4N
Differential [MD]
0.1mm or less
Operating point position [PT]
10±0.2mm (from the bottom)
Static load resistance
80N (Use φ3 rod, near the center)
1000N（Use φ10 bar, near the center)
Repeat Positioning Accuracy
±0.01mm

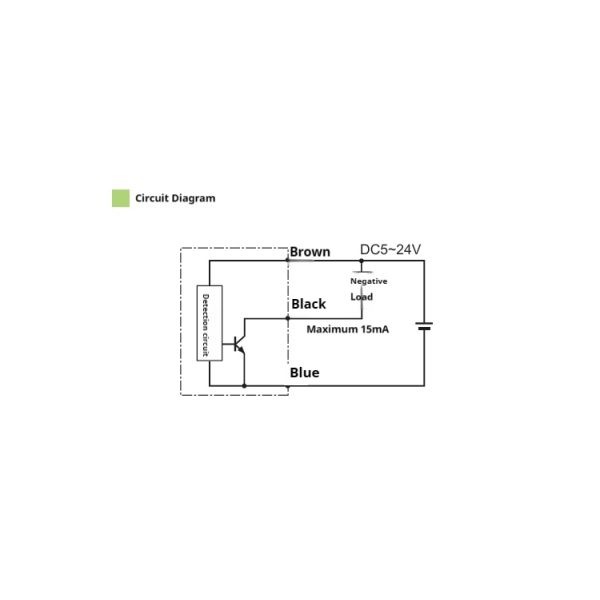

Output method
ZTSR10:
NPN normally open (ON at proximity)
ZTSR10(B):
NPN normally closed (OFF at proximity)
Output current
15mA MAX
Consumption current
12mA MAX
Operating Frequency
60 times/minute or less
Withstanding Voltage
AC1000V
(1 minute, between the whole charging part and the case)
Insulation resistance
DC250V
(20MΩ or more, between the whole charging part and the case)
Operating Ambient Temperature
-20°C~+85°C (no condensation)
Working environment humidity
20~95%RH
Wire specification
3 core wires, Φ0.9×1m
Material
Housing/Operating lever: SUS303
Protection Grade
IP67

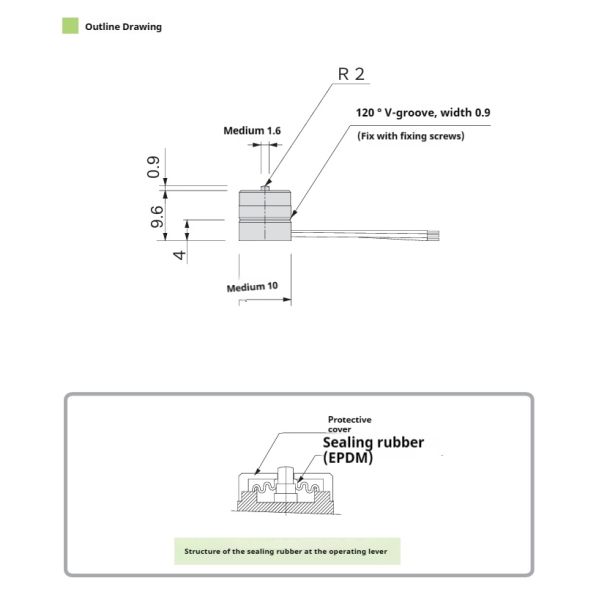

Note) Do not push the lever so that the apex of the lever is lower than the protective cover.
Details Images
High Precision Contactless Touch Switches DC5-24V 15mA MAX CNC Machine Inductive Proximity Sensor ZTSR10
High Precision Contactless Touch Switches DC5-24V 15mA MAX CNC Machine Inductive Proximity Sensor ZTSR10
High Precision Contactless Touch Switches DC5-24V 15mA MAX CNC Machine Inductive Proximity Sensor ZTSR10
Product packaging
We usually use foam board with 3 cm thick to fill in all around the box inside to protect parts. We often use carton to pack the parts, but if it's too heavy, we'll use custom-wooden box to pack it. Package : carton or wooden box Lead time : 1-2 days All products can be shipped around the world via DHL, UPS, FedEx, TNT and more. The package is safe and green. If you have any special needs, please let me know.
High Precision Contactless Touch Switches DC5-24V 15mA MAX CNC Machine Inductive Proximity Sensor ZTSR10
Company Profile
Founded in 2014, Shenzhen Muye Precision Control Electromechanical Co., Ltd. is a service-oriented enterprise integrating R&D, design and sales of CNC numerical control machine tools accessories, and the products currently put on the market mainly include CNC numerical control machine tools with automatic tool setting instrument, electronic handwheels, hand-cranked pulse generators, on-line measuring probes, band switches, spindle encoders, system panels, electronic handwheel accessories supporting programs, and the realization of automatic tool setting installation and debugging solutions. Commissioning solutions, etc. Our factory is located in Songgang, Bao'an District, Shenzhen City, covers an area of more than 3,000 square meters, with 20 professional and technical personnel, 15 sets of testing instruments, two production lines. The production capacity reaches 100,000 units per month. We have exclusive patent design and own brand, and have won many quality certificates. The products are widely used in Fanuc, , Mitsubishi, Fagor, Heidenhain, Bao Yuan, New Generation, HANUC, Guangzhou CNC GSK, open CNC, Kain Emperor KND, Nuoxin, Delta, a variety of PLCs, CNC CNC machining centers, engraving machines, engraving and milling machines, drilling and tapping machines, EDM, milling machines, lathes and so on. The company in line with the "customer first, integrity first" principle with a number of enterprises to establish long-term cooperative relations, warmly welcome friends from all over the world to visit and negotiate business.
High Precision Contactless Touch Switches DC5-24V 15mA MAX CNC Machine Inductive Proximity Sensor ZTSR10
High Precision Contactless Touch Switches DC5-24V 15mA MAX CNC Machine Inductive Proximity Sensor ZTSR10
High Precision Contactless Touch Switches DC5-24V 15mA MAX CNC Machine Inductive Proximity Sensor ZTSR10
Our Advantages
1. We specialize in the field of CNC machine tool accessories and have more than ten years of industry experience. 2. We have our own brand called Makinopc and exclusive patent design and quality certification. 3. We provide you with friendly English user manual or operation video for free. 4. We have 24 hours technical support by email or phone. 5. Warranty: 1 year free warranty, 2-3 years warranty at cost, and always provide free technical support. 6. We have no MOQ limit and accept OEM/ODM bulk orders.
FAQ
Q1. Can I have a sample order? A: Yes, we welcome sample order to test and check quality. Q2: How to choose the appropriate model or specifications? A:Based on your requirement and application, our professional engineers will offer you a detailed suggestions regarding models and specifications. Q3:Can I become your dealer? A:Of course, we need partners to create value together. Q4: Do you accept customized service? A:Yes, we can provide not only standard products, but also customized service and solutions. Q5: Do you have any MOQ (minimum order quality)limit? A: For standard product, usually 1pcs/item. For the OEM order, need to communicate product solutions. Q6.How long is the product shelf life? A: Our product watranty period is one year. Q7: How to proceed an order? A: After buyer confirm the product&price is ok and ready to buy, order will be please tell us your delivery address, phone number, sometimes need email. Then we can draft the order and it will have a paying link.Online trading is safe and convenient.
