ZTSM16 Sensor Contactless Contact Measurement SUS303 Limit Switch Sensor for CNC Machine Tools
ZTSM16 Sensor Contactless Contact Measurement SUS303 Limit Switch Sensor for CNC Machine Tools
ZTSM16 Sensor Contactless Contact Measurement SUS303 Limit Switch Sensor for CNC Machine Tools
ZTSM16 Sensor Contactless Contact Measurement SUS303 Limit Switch Sensor for CNC Machine Tools
ZTSM16 Sensor Contactless Contact Measurement SUS303 Limit Switch Sensor for CNC Machine Tools
ZTSM16 Sensor Contactless Contact Measurement SUS303 Limit Switch Sensor for CNC Machine Tools
ZTSM16 Sensor Contactless Contact Measurement SUS303 Limit Switch Sensor for CNC Machine Tools
ZTSM16 Sensor Contactless Contact Measurement SUS303 Limit Switch Sensor for CNC Machine Tools
ZTSM16 Sensor Contactless Contact Measurement SUS303 Limit Switch Sensor for CNC Machine Tools
ZTSM16 Sensor Contactless Contact Measurement SUS303 Limit Switch Sensor for CNC Machine Tools
Specifications
MOQ :
1 piece
warranty :
1 Year
Place of Origin :
Guangdong, China
Condition :
New
Machine Type :
Punching Machine, Milling Machine, lathe machine, Grinding Machine
machinery test report :
Not Available
Applicable Industries :
CNC machining center
video outgoing-inspection :
Provided
Price :
$12.90-15 / piece
weight (kg) :
0.5
Brand Name :
OEM/ODM
Marketing Type :
Ordinary Product
Core Components :
Housing/Nut/Operating Rod:SUS303
Description
Products Description

Key Features

ZTSM16 Sensor in CNC machines serves multiple purposes. Their main function is to provide real-time feedback to the machine's control system, allowing it to monitor and adjust various parameters during the machining process.
Product Paramenters
Supply Voltage
DC5~24V
Stroke
3.5mm
Operating force
F: 2N
W：3N
Waterproof
F：Waterproof in front of fixed plate
W：Waterproof on both sides
Work point position [PT]
1.2mm
Differential [MD]
0.1mm or less
Repeat Positioning Accuracy
± 0.04mm

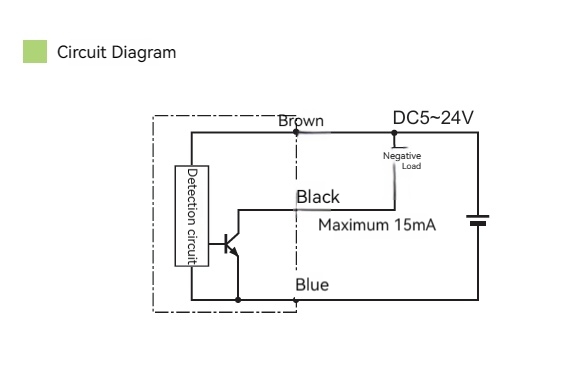

Output Method

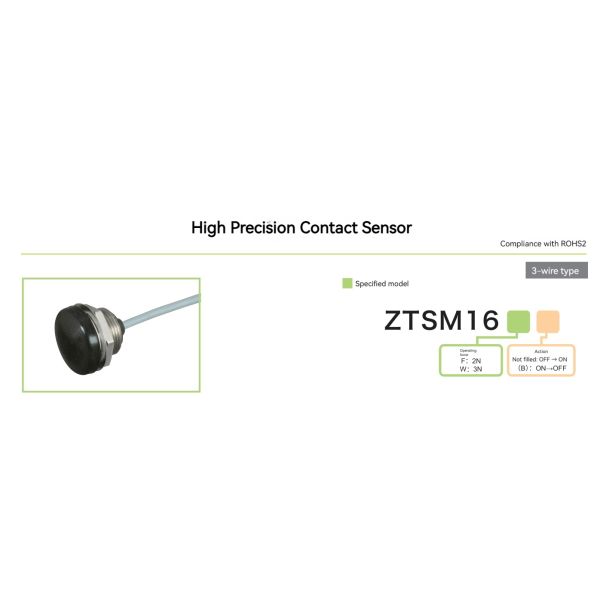

ZTSM16.
NPN Normally open (ON for proximity)
ZTSM16(B): NPN normally closed (OFF at proximity)
ZTSM16(B): NPN normally closed (OFF at proximity)
Output current
15mA MAX
Current consumption
12mA MAX
Operating Frequency
60 times/minute or less
Withstanding Voltage
AC1000V
(1 minute, between the whole charging part and the case)
Insulation resistance
DC250V
(20MΩ or more, between the whole charging part and the case)
Operating Ambient Temperature
-20°C~+85°C (no condensation)
Working environment humidity
20~95%RH
Wire specification
Φ2.8x1m
ZTSM16: Gray
ZTSM16(B): Black
Seal cover material
Sealing Plastic
Housing and Nut Material
SUS303

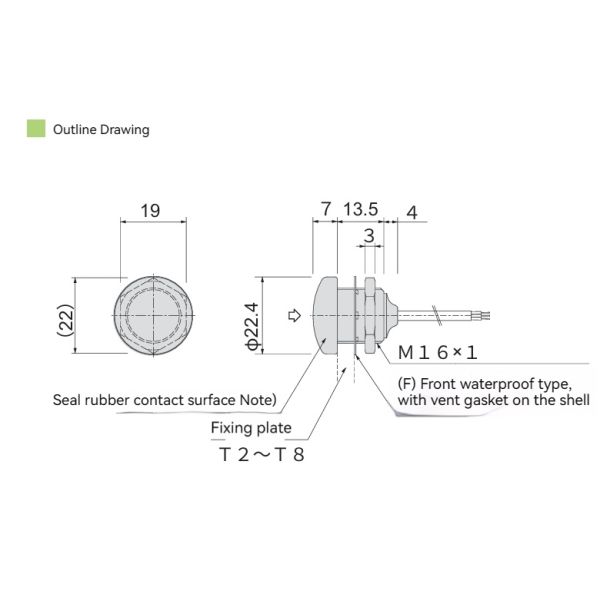

Mounting
M16 Nut, tightening torque 20N-m or less
Mounting hole processing size
Φ16 +0.5 / 0
Protection Grade
IP67
Note) When installing the product, make sure that the sealing rubber contact surface and the fixing plate are tightly fitted together. If there is a gap between the sealing rubber contact surface and the sensor body, the performance of the product will be affected.
