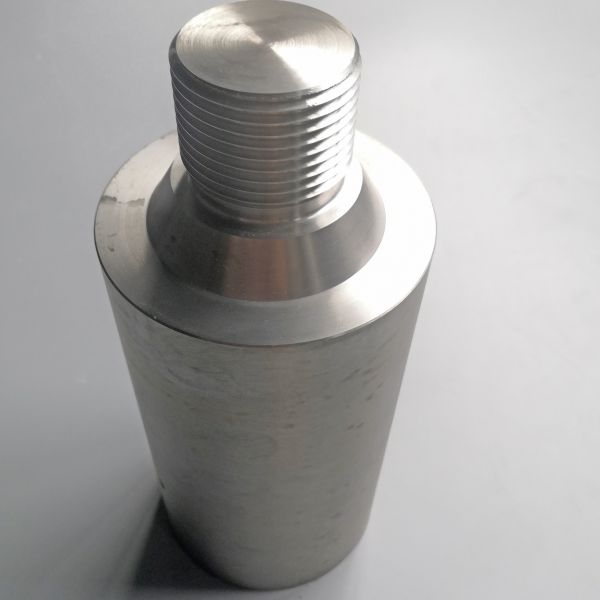

Glass Fiber Manufacturing Moly Electrodes 10.2g/Cm3 Creep Resistance
Glass Fiber Manufacturing Moly Electrodes 10.2g/Cm3 Creep Resistance
Glass Fiber Manufacturing Moly Electrodes 10.2g/Cm3 Creep Resistance
Glass Fiber Manufacturing Moly Electrodes 10.2g/Cm3 Creep Resistance
Glass Fiber Manufacturing Moly Electrodes 10.2g/Cm3 Creep Resistance
Glass Fiber Manufacturing Moly Electrodes 10.2g/Cm3 Creep Resistance
Glass Fiber Manufacturing Moly Electrodes 10.2g/Cm3 Creep Resistance
Glass Fiber Manufacturing Moly Electrodes 10.2g/Cm3 Creep Resistance
Specifications
Brand Name :
Achemetal
Model Number :
Customization
Certification :
ISO9001
Place of Origin :
Henan,China
MOQ :
1piece
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability :
5000 piece per month
Delivery Time :
within 30 days after order
Packaging Details :
Standard Wooden Package with foam filling，stainless fasten belt.
Material :
99.95% Pure Molybdenum
Purity :
99.95% Mo Min
Dimension :
customized on demand
Shape :
by drawing
Surface :
Grey/polishing /bright
Density :
10.2g/cm³
Melting point :
2610℃
Boiling point :
5560℃
Main market :
global
Express :
Express, sea freight,air freight
Port :
Tianjin, Qingdao, Shanghai
Description

Molybdenum Electrodes For Glass Fiber Manufacturing As Molybdenum Electrodes

Molybdenum glass melting electrodes

Molybdenum glass melting electrodes for electrically heated glass tanks must be able to withstand extreme thermal loads and aggressive glass melts. Molybdenum is the most suitable for these difficult conditions.

Thanks to a special forging process, the glass melting electrodes manufactured possess a particularly smooth surface. In addition, our forming processes result in a particularly coarse-grained, creep-resistant material structure coupled with optimum straightness. This ensures that glass melting electrodes do not deform, are less prone to wear, and last longer.

Advantage:

  1. High purity for bubble-free application(min 99.97%)
  2. Best electrical and thermal properties
  3. Excellent creep resistance
  4. Excellent corrosion resistance
  5. Customer specific solutions as well as standard products from stock
  6. Optimum protection against oxidation via coating

​

Specification

Name Molybdenum Electrode
Material

Pure Molybdenum: Mo≥99.95%

TZM molybdenum alloy: C:0.014%, Ti:0.65%, Zr: 0.071%

Molybdenum Lanthanum alloy: Mo≥99.27%, La=0.62%
Specifications Dia. (2-500) mm * L (10-2500) mm (Customized the length of the thread)
Certificate ISO9001: 2008
Melting Point 2610℃
Boiling Point 5560℃
Purity ≥99.95%
Density ≥10.2g/cm3
Surface black, alkaline cleaning, polished surface
Application

1) Used for Glass industry, electro-heat equipment of the glass fiber kiln, and electric boosting glass kiln electrode etc;

2) Use as part in rare earth industry, liquid-flow hole panel;

3) Use for vacuum furnace, atmosphere furnace.
Dimensions Diameter Diameter tolerance Length

Thread

Length

Polished

surface

Black/Alkaline

cleaning surface
<10 ±0.05 ±0.05 or ±0.2 2500 Customized
10-30 ±0.05 ±0.05 or ±0.2 2000
30-60 ±0.05 ±0.05 or ±0.2 1500
60-100 ±0.05 ±0.05 or ±0.2 1000
100-200 ±0.05 ±0.05 or ±0.2 600
>200 ±0.05 ±0.05 or ±0.2 According to your requirements

Glass Fiber Manufacturing Moly Electrodes 10.2g/Cm3 Creep Resistance
