Specifications
Brand Name :
Honeal
Model Number :
OS-300
Place of Origin :
China
MOQ :
1 set
Price :
USD 23800-26800 Per Set
Payment Terms :
T/T，,Western Union,MoneyGram
Supply Ability :
1000 sets/Year
Delivery Time :
30 work days
Packaging Details :
Export wooden box packaging
Dimension :
L870mm X W1230mm X H1550mm
Max carrier size :
Max:350(L)*300(W)(mm)
emperature setting range :
Max400 ℃
Position accuracy :
+ / - 0.05 mm
Solder pot capacity :
13 kgs /PCS
Preheat method :
Upper IR heating
Description

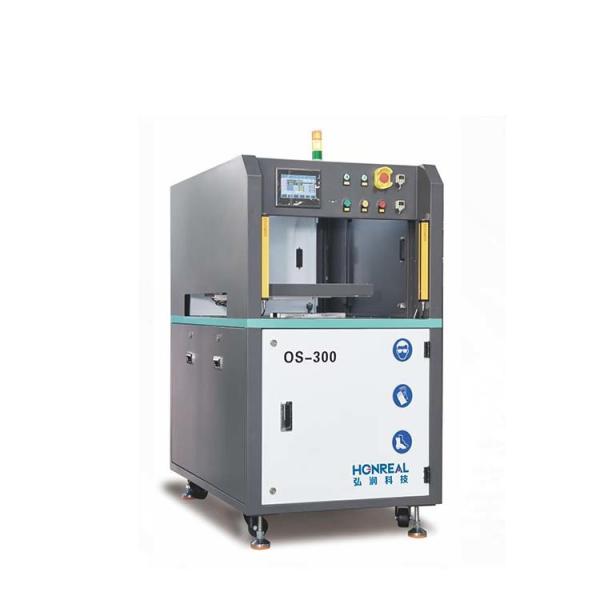

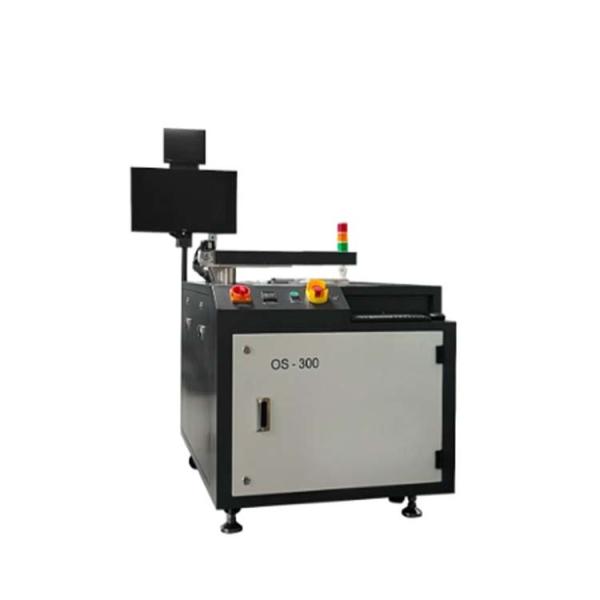

Mini Wave Selective Soldering Machine for Electronics Production Mini Selective Solder

Features:

1.The machine integrates flux spraying,and soldering.
2.The solder pot is fixed, and the PCB board moves to realize soldering;
3.Maximum PCB dimensions: 300 x 300mm.
4.Small in occupation space and low in energy consumption
5.Manual placement and removal of boards.
6.It is particularly suitable the products of NPI.


Technical parameter:

Machine type

OS-300



Machine parameters

Dimensions

L870mm X W1230mm X H1550mm









power supply

Single phase 220V 50HZ

Shipping parameters

Rail adjustable range

50-300MM







PCB board size

L350 X W300MM



transport height

900±30mm

sports platform

Pulley + slide rail



Movement accuracy

±0.25 mm

Tin furnace parameters

Crest drive

mechanical pump







Number of tin furnaces

single cylinder

Tin furnace capacity

13 kg / furnace

Nitrogen consumption

About 1.5 ~2 m3/h per tin cylinder

programmatically

Manually enter coordinates

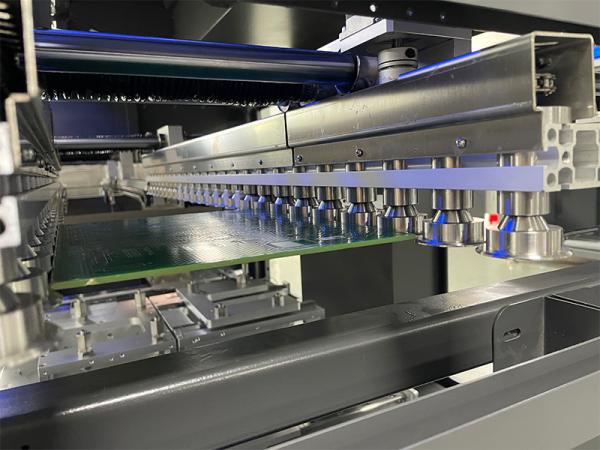

Details:


Mini Desktop Wave Selective Soldering Machine High Precision Automated Selective Soldering PCB Assembly Soldering


Mini Desktop Wave Selective Soldering Machine High Precision Automated Selective Soldering PCB Assembly Soldering
Certification
Mini Desktop Wave Selective Soldering Machine High Precision Automated Selective Soldering PCB Assembly Soldering
Packing

Mini Desktop Wave Selective Soldering Machine High Precision Automated Selective Soldering PCB Assembly Soldering
