Cost Effective Palletizer Column Type Cantilever For Low To Medium Capacity
Cost Effective Palletizer Column Type Cantilever For Low To Medium Capacity
Cost Effective Palletizer Column Type Cantilever For Low To Medium Capacity
Cost Effective Palletizer Column Type Cantilever For Low To Medium Capacity
Cost Effective Palletizer Column Type Cantilever For Low To Medium Capacity
Cost Effective Palletizer Column Type Cantilever For Low To Medium Capacity
Cost Effective Palletizer Column Type Cantilever For Low To Medium Capacity
Cost Effective Palletizer Column Type Cantilever For Low To Medium Capacity
Cost Effective Palletizer Column Type Cantilever For Low To Medium Capacity
Cost Effective Palletizer Column Type Cantilever For Low To Medium Capacity
Specifications
Brand Name :
RUISITONG
Model Number :
RST-50B-180
Place of Origin :
Henan, China
MOQ :
1
Price :
$15000
Model :
RST-50B-180
Number of Axes :
4-axis; Vertical Articulated
Material :
Carbon Steel
Maximum Load :
50kg
Repeat Positioning Accuracy :
±0.2mm
Power :
5KW
Maximum Working Radius :
2000mm
Rotation Angle :
180°
Maximum Palletizing Height :
1.6m – 1.8m
Palletizing Speed :
400 – 500 cycles/hour
Machine Dimensions (L×W×H) :
2500mm × 400mm × 2920mm
Machine Weight :
900kg
Applicable Types :
Bags, boxes, barrels, baskets, and other regular objects
Application Fields :
Building materials, feed, chemicals, grain & oil, food, daily chemicals, alcohol, beverages, pharmaceuticals, home appliances, 3C electronics, etc.
Product Features :
1. Capable of dual-line, dual-station simultaneous palletizing and depalletizing. 2. Simple operation, high speed, compact footprint, and high efficiency. 3. Enables intelligent handling to reduce costs and improve productivity.
Description

Product Overview

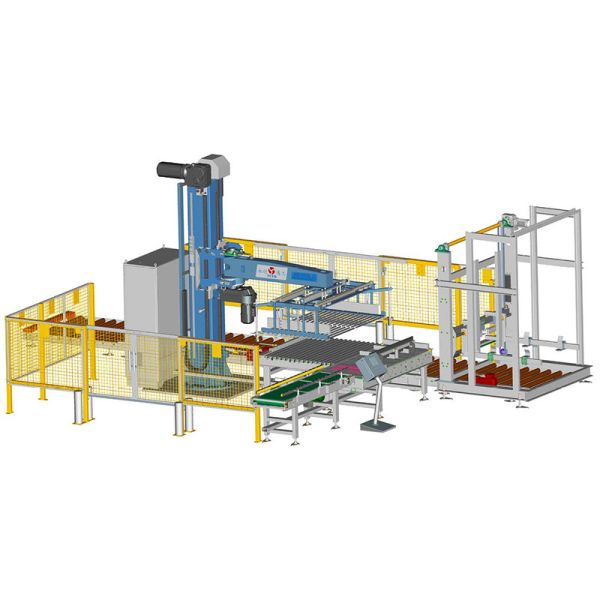

Cost Effective Palletizer Column Type Cantilever For Low To Medium Capacity

The Cost Effective Palletizer with Column Type Cantilever Design is an entry-level automation solution engineered for businesses seeking to automate their palletizing process without a major capital investment. Ideal for low to medium capacity production lines, it delivers essential automated functionality with a focus on reliability and value, providing a straightforward path to enhanced productivity.

Technical Specifications

Model RST-50B-180
Number of Axes 4-axis; Vertical Articulated
Material Carbon Steel
Maximum Load 50kg
Repeat Positioning Accuracy ±0.2mm
Power 5KW
Maximum Working Radius 2000mm
Rotation Angle 180°
Maximum Palletizing Height 1.6m – 1.8m
Palletizing Speed 400 – 500 cycles/hour
Machine Dimensions (L×W×H) 2500mm × 400mm × 2920mm
Machine Weight 900kg
Applicable Types Bags, boxes, barrels, baskets, and other regular objects
Application Fields Building materials, feed, chemicals, grain & oil, food, daily chemicals, alcohol, beverages, pharmaceuticals, home appliances, 3C electronics, etc.
Product Features 1. Capable of dual-line, dual-station simultaneous palletizing and depalletizing.
2. Simple operation, high speed, compact footprint, and high efficiency.
3. Enables intelligent handling to reduce costs and improve productivity.

Key Features & Advantages

Cost Effective Palletizer Column Type Cantilever For Low To Medium Capacity

  1. Exceptional Cost Efficiency: Offers core automated palletizing functionality at an accessible price point, ensuring a fast return on investment for growing operations.

  2. Optimized for Lower Volumes: Designed specifically for the demands of low to medium capacity lines, avoiding over-engineering and unnecessary cost.

  3. Reliable Core Performance: Maintains the fundamental benefits of automation—consistency, labor savings, and reduced product damage—through a robust and simplified mechanical design.

  4. Simple Installation & Operation: Easy to integrate into existing lines and simple for operators to use, minimizing initial setup costs and ongoing training requirements.

  5. Low Maintenance Design: Built with durable, readily available components to ensure operational reliability and minimize long-term maintenance expenses.

Company Profile

With over 10 years of manufacturing experience, we provide professional solutions tailored to your specific production requirements. Our team offers comprehensive support from equipment selection to after-sales service.
Cost Effective Palletizer Column Type Cantilever For Low To Medium Capacity Cost Effective Palletizer Column Type Cantilever For Low To Medium Capacity Cost Effective Palletizer Column Type Cantilever For Low To Medium Capacity Cost Effective Palletizer Column Type Cantilever For Low To Medium Capacity
We will recommend the most suitable equipment for your needs with professional knowledge and sincere service, providing the most efficient production solution.

Cost Effective Palletizer Column Type Cantilever For Low To Medium Capacity

Frequently Asked Questions
Are you a manufacturer or a trading company?

We are manufacturers with over 10 years of experience in production line manufacturing.

How can we guarantee quality?

All machines undergo rigorous factory inspection and 72-hour continuous operation testing before delivery. Our quality control department ensures every unit meets strict standards.

How to install the equipment?

We provide detailed manuals and installation videos, supported by our professional after-sales technical team available for guidance at any time.

Why should you buy from us?

As an established manufacturer with our own factory, we offer customized solutions that match your production requirements and site conditions, ensuring cost-effective equipment selection.
