Specifications
Brand Name :
RUISITONG
Model Number :
RST-50B-180
Place of Origin :
Henan, China
MOQ :
1
Price :
$15000
Model :
RST-50B-180
Number of Axes :
4-axis; Vertical Articulated
Material :
Carbon Steel
Maximum Load :
50kg
Repeat Positioning Accuracy :
±0.2mm
Power :
5KW
Maximum Working Radius :
2000mm
Rotation Angle :
180°
Maximum Palletizing Height :
1.6m – 1.8m
Palletizing Speed :
400 – 500 cycles/hour
Machine Dimensions (L×W×H) :
2500mm × 400mm × 2920mm
Machine Weight :
900kg
Applicable Types :
Bags, boxes, barrels, baskets, and other regular objects
Application Fields :
Building materials, feed, chemicals, grain & oil, food, daily chemicals, alcohol, beverages, pharmaceuticals, home appliances, 3C electronics, etc.
Product Features :
1. Capable of dual-line, dual-station simultaneous palletizing and depalletizing. 2. Simple operation, high speed, compact footprint, and high efficiency. 3. Enables intelligent handling to reduce costs and improve productivity.
Description

Product Overview

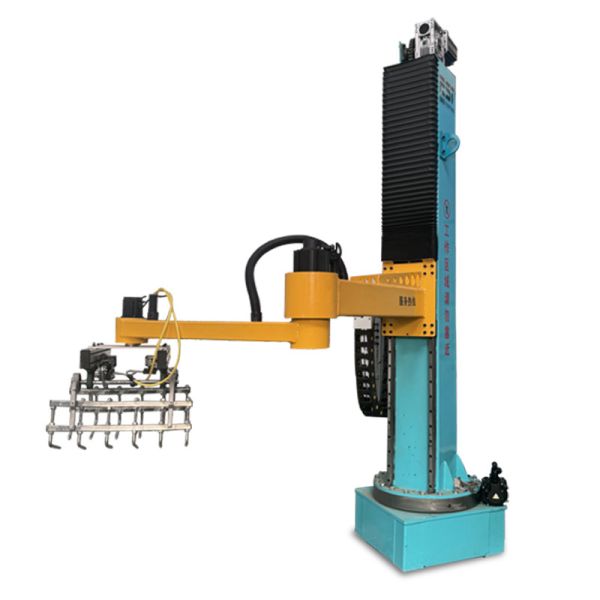

Column Type Cantilever Palletizing Robot Space Saving Flexible Automation

The Column Type Cantilever Palletizing Robot is an industrial automation solution engineered to optimize space utilization and enhance production line flexibility. Its innovative column and cantilever arm structure ensures highly efficient and stable palletizing operations while significantly conserving valuable floor space. Perfectly suited for compact facility layouts, it is the ideal choice for upgrading to intelligent and flexible warehousing and logistics.

Technical Specifications

Model RST-50B-180
Number of Axes 4-axis; Vertical Articulated
Material Carbon Steel
Maximum Load 50kg
Repeat Positioning Accuracy ±0.2mm
Power 5KW
Maximum Working Radius 2000mm
Rotation Angle 180°
Maximum Palletizing Height 1.6m – 1.8m
Palletizing Speed 400 – 500 cycles/hour
Machine Dimensions (L×W×H) 2500mm × 400mm × 2920mm
Machine Weight 900kg
Applicable Types Bags, boxes, barrels, baskets, and other regular objects
Application Fields Building materials, feed, chemicals, grain & oil, food, daily chemicals, alcohol, beverages, pharmaceuticals, home appliances, 3C electronics, etc.
Product Features 1. Capable of dual-line, dual-station simultaneous palletizing and depalletizing.
2. Simple operation, high speed, compact footprint, and high efficiency.
3. Enables intelligent handling to reduce costs and improve productivity.

Key Features & Advantages

Column Type Cantilever Palletizing Robot Space Saving Flexible Automation

  1. Maximized Space Saving: Unique cantilever design eliminates the need for a large gantry frame, dramatically reducing floor space requirements and enabling high-density layout.

  2. High Flexibility: Easily reprogrammed to quickly adapt to different product sizes, shapes, and stacking patterns for seamless changeovers.

  3. High-Speed & Precision: Features fast cycle times and precise positioning, ensuring high throughput and stable, damage-free pallet loads.

  4. Robust & Durable Construction: Built with industrial-grade components for reliable, long-term performance in demanding continuous operation environments.

  5. Easy Integration & Maintenance: Modular design simplifies installation and future maintenance, allowing for smooth integration into existing production systems and reducing overall upgrade costs.

Company Profile

With over 10 years of manufacturing experience, we provide professional solutions tailored to your specific production requirements. Our team offers comprehensive support from equipment selection to after-sales service.
Column Type Cantilever Palletizing Robot Space Saving Flexible Automation Column Type Cantilever Palletizing Robot Space Saving Flexible Automation Column Type Cantilever Palletizing Robot Space Saving Flexible Automation Column Type Cantilever Palletizing Robot Space Saving Flexible Automation
We will recommend the most suitable equipment for your needs with professional knowledge and sincere service, providing the most efficient production solution.
