Advanced HMC630 Horizontal Fanuc CNC Vertical Lathe Machine with 900mm Table Travel Z
Advanced HMC630 Horizontal Fanuc CNC Vertical Lathe Machine with 900mm Table Travel Z
Advanced HMC630 Horizontal Fanuc CNC Vertical Lathe Machine with 900mm Table Travel Z
Advanced HMC630 Horizontal Fanuc CNC Vertical Lathe Machine with 900mm Table Travel Z
Advanced HMC630 Horizontal Fanuc CNC Vertical Lathe Machine with 900mm Table Travel Z
Advanced HMC630 Horizontal Fanuc CNC Vertical Lathe Machine with 900mm Table Travel Z
Advanced HMC630 Horizontal Fanuc CNC Vertical Lathe Machine with 900mm Table Travel Z
Advanced HMC630 Horizontal Fanuc CNC Vertical Lathe Machine with 900mm Table Travel Z
Advanced HMC630 Horizontal Fanuc CNC Vertical Lathe Machine with 900mm Table Travel Z
Advanced HMC630 Horizontal Fanuc CNC Vertical Lathe Machine with 900mm Table Travel Z
Advanced HMC630 Horizontal Fanuc CNC Vertical Lathe Machine with 900mm Table Travel Z
Advanced HMC630 Horizontal Fanuc CNC Vertical Lathe Machine with 900mm Table Travel Z
Specifications
Place of Origin :
Shandong, China
Brand Name :
lu young
Price :
$58,000.00/sets 1-1 sets
Condition :
New
No. of Spindles :
Single
Type :
Horizontal
Weight (T) :
10 T
Table Size (mm) :
630*630
CNC Control System :
GSK, FANUC, KND
Number of Axes :
3, 4, 5
Table Travel (X) (mm) :
1050
Table Travel (Y) (mm) :
750
Table Travel (Z) (mm) :
900
Positioning Accuracy (mm) :
0.008
Repeatability (X/Y/Z) (mm) :
0.005
Spindle Motor Power(kW) :
15
Max. Table Load(kg) :
950 kg
Min. Time of Tool Change(s) :
2
Tool Magazine Capacity :
16, 20, 24
Key Selling Points :
Automatic
Warranty :
1 Year
Voltage :
220V/380V
Marketing Type :
New Product 2023
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
After-sales Service Provided :
Engineers available to service machinery overseas
Machine Type :
horizontal Machine Centers
Product name :
HMC630 Horizontal Fanuc Heavy-Duty CNC Vertical Lathe Machine Siemens
Controlling Mode :
Cnc System
Product type :
cnc Machining Center
Processing :
Maching Center
Spindle speed :
10000 Rpm
Application :
Metal Machining
Control system :
KND SIEMENS GSK FANUC (optional)
After Warranty Service :
Online support
Applicable Industries :
Machinery Repair Shops, Manufacturing Plant, Construction works
Showroom Location :
None
Core Components :
Other
Description
HMC630 Horizontal Fanuc Heavy-Duty CNC Vertical Lathe Machine Siemens
Advanced HMC630 Horizontal Fanuc CNC Vertical Lathe Machine with 900mm Table Travel Z
Specification
specifications
HMC500
HMC630
Worktable size (mm)
500*500
630*630
Max loading weight on worktable (kg)
600
950
T slot size (Mm/ piece)
X axis maximum travel (mm)
800
1050
Y axis Maximum travel (mm)
520
750
Z axis Maximum travel (mm)
700
900
Distance from spindle end face to worktable center(mm)
150-850
130-1030
Distance from spindle center to work table(mm)
130-650
130-650
Spindle taper (7:24)
BT 40 φ150
BT 50 φ190
Range of spindle speed( r/min)
8000
6000
Motor power(kW)
15
15
Rapid feeding speed: X axis m/min
18
20
Rapid feeding speed:Y axis m/min
18
12
Rapid feeding speed:Z axis m/min
15
20
feed speed (mm/min)
1-10000
1-10000
Tool changer design
arm type auto tool changer
arm type auto tool changer
ATC content (piece)
24
24
Tool change time (s)
2.5
2.5
Accuracy test standard
JISB6336-4:2000/ GB/T18400.4-2010
JISB6336-4:2000/ GB/T18400.4-2010
X/Y/Z axis(mm)
±0.008
±0.008
X/Y/Z axis Repeat positional accuracy (mm)
±0.005
±0.005
Size (length× width× height) (mm)
4800*3600*2800
5300*3700*2900
Machine weight (kg)
8000
10000
Advanced HMC630 Horizontal Fanuc CNC Vertical Lathe Machine with 900mm Table Travel Z
Product Description
HMC630 Horizontal Fanuc Heavy-Duty CNC Vertical Lathe Machine Siemens Suitable materials: castings, steel parts, stainless steel parts, copper and aluminum parts, suitable characteristics: processing of polyhedrons (one-time clamping, multi-faceted processing) Suitable for workpieces: various box shapes, polyhedrons, and revolving surfaces.
Advanced HMC630 Horizontal Fanuc CNC Vertical Lathe Machine with 900mm Table Travel Z
Advanced HMC630 Horizontal Fanuc CNC Vertical Lathe Machine with 900mm Table Travel Z
Advanced HMC630 Horizontal Fanuc CNC Vertical Lathe Machine with 900mm Table Travel Z
Advanced HMC630 Horizontal Fanuc CNC Vertical Lathe Machine with 900mm Table Travel Z
Product Feature
1. The HMC630 Horizontal Fanuc Heavy-Duty CNC Vertical Lathe Machine Siemens Mass production and processing of complex and multi-faceted medium-sized hardware parts, which can be drilled, tapped, and milled.
2. HMC500 is a complex workpiece for some customers for more than ten years, especially the complex processing requirements of various box-shaped objects, various surfaces of revolution, or other polyhedrons. It integrates the selected structure and processing of the current world machine tools. technology, a small and medium-sized horizontal machining center specially built.
3. The standard configuration is to use the mature and stable KND system on the market, Taiwan's new generation CNC machining center system
4. The large-span high-rigidity T-shaped structure design adopts roller linear guide rails to increase the rigidity of the
equipment;
5. There is no door between the tool magazine and the processing area, which greatly improves the actual efficiency of tool change;
Advanced HMC630 Horizontal Fanuc CNC Vertical Lathe Machine with 900mm Table Travel Z
Advanced HMC630 Horizontal Fanuc CNC Vertical Lathe Machine with 900mm Table Travel Z
Company Profile
Luyang CNC machinery company has 20 years of production lathe experience, main CNC lathe, CNC milling machine, processing center,Swiss CNC lathe high-tech enterprise.The company has a professional production and development team and favorable after-salestechnical team support.The company takes the strength to make the product, the service wins the customer, the customer as thebasic management concept.Our company has gained a good reputation both at home and abroad by providing customers with
cost-effective CNC machine tools and excellent timely sales advice and after-sales service.Development, innovation,people-oriented, is the direction my company has been working on.
Our company continuously strengthen product performance improvements, innovation cost-effective CNC machinery, optimize productquality control system, to provide global support services as the dominant direction of the development of the company.
Advanced HMC630 Horizontal Fanuc CNC Vertical Lathe Machine with 900mm Table Travel Z
Packing & Delivery
Advanced HMC630 Horizontal Fanuc CNC Vertical Lathe Machine with 900mm Table Travel Z
1.Non-fumigation packaging, we use seaworthy plywood.
2. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
3.Water-proof and damp proof, water resistant film wraped all the machine.
4.Fully sheathed case,prevention of collision and keep the goods intact.
Our service
Advanced HMC630 Horizontal Fanuc CNC Vertical Lathe Machine with 900mm Table Travel Z
♥Training how to instal the machine, training how to use the machine.
♥Engineers are available to service machinery overseas.
♥Provide tools and accessories.
♥Warranty is one year, we would offer the parts (quality problem) free of charge during this period.
♥Note: GSK, Servo driven, motor and transformer, warranty is 3 years.
Customer Photos
Advanced HMC630 Horizontal Fanuc CNC Vertical Lathe Machine with 900mm Table Travel Z
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
.
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,MANUAL lathe Machine,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province, China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

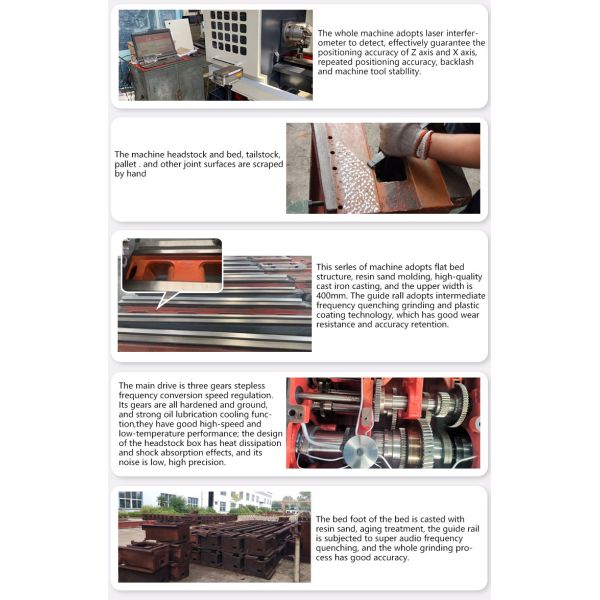

1.The whole machine adopts laser interfer-ometer to detect, effectively guarantee the positioning accuracy of Z axis and X axis,repeated positioning accuracy, backlash and machine tool stabllity.
2.The machine headstock and bed, tailstock, pallet . and other joint surfaces are scraped by hand.
3.The main drive is three gears stepless frequency conversion speed regulation. Its gears are all hardened and ground, and strong oil lubrication cooling function,they have good high-speed and low-temperature performance; the design of the headstock box has heat dissipation and shock absorption effects, and its noise is low, high precision.
4.The bed foot of the bed is casted with resin sand, aging treatment, the guide rail is subjected to super audio frequency quenching, and the whole grinding process has good accuracy.
