High Precision CNC Milling VMC7126 Vertical Machine Center with ±0.003mm Repeatability
High Precision CNC Milling VMC7126 Vertical Machine Center with ±0.003mm Repeatability
High Precision CNC Milling VMC7126 Vertical Machine Center with ±0.003mm Repeatability
High Precision CNC Milling VMC7126 Vertical Machine Center with ±0.003mm Repeatability
High Precision CNC Milling VMC7126 Vertical Machine Center with ±0.003mm Repeatability
High Precision CNC Milling VMC7126 Vertical Machine Center with ±0.003mm Repeatability
High Precision CNC Milling VMC7126 Vertical Machine Center with ±0.003mm Repeatability
High Precision CNC Milling VMC7126 Vertical Machine Center with ±0.003mm Repeatability
High Precision CNC Milling VMC7126 Vertical Machine Center with ±0.003mm Repeatability
High Precision CNC Milling VMC7126 Vertical Machine Center with ±0.003mm Repeatability
High Precision CNC Milling VMC7126 Vertical Machine Center with ±0.003mm Repeatability
High Precision CNC Milling VMC7126 Vertical Machine Center with ±0.003mm Repeatability
Specifications
Condition :
New
Spindle Taper :
BT40
No. of Spindles :
Single
Type :
VERTICAL
Dimension(L*W*H) :
1900*1400*2100
Weight (T) :
2.4 T
Table Size (mm) :
800*260
Number of Axes :
3, 4, 5
Table Travel (X) (mm) :
450
Table Travel (Y) (mm) :
320
Table Travel (Z) (mm) :
420
Positioning Accuracy (mm) :
±0.01
Repeatability (X/Y/Z) (mm) :
±0.003
Range of Spindle Speed(r.p.m) :
1 - 8000 r.p.m
Spindle Motor Power(kW) :
3.7/5.5
Max. Table Load(kg) :
200 kg
Min. Time of Tool Change(s) :
7
Tool Magazine Capacity :
16, 10, 12
Key Selling Points :
High Safety Level
Warranty :
1 Year
Place of Origin :
Shandong, China
Brand Name :
Lu Young
Voltage :
380V 50HZ /220V 60 HZ
Marketing Type :
New Product 2020
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
CNC or Not :
CNC System milling centers
After-sales Service Provided :
Engineers available to service machinery overseas
Travel of X axis(mm) :
450
Travel of Y axis(mm) :
320
Travel of Z axis(mm) :
420
Max speed of spindle (Rpm) :
60-8000
Positioning accuracy :
±0.01
Local Service Location :
None
Certification :
ISO CE
Applicable Industries :
Building Material Shops, Machinery Repair Shops, Manufacturing Plant
Showroom Location :
None
Core Components :
Motor
Feed Speed(mm/min) :
1 - 4000 mm/min
Rapid Feed Speed(m/min) :
18
Price :
$17,500.00/sets 1-1 sets
Description
High precision and high quality cnc milling drilling machine VMC7126 vertical machine center
Product Description
The machine has a strong load-bearing capacity, three directions of guide rails are hardened hard rails, wide guide rails, large span, compact and reasonable structure and external dimensions, the spindle is driven by frequency conversion motor through the synchronous belt. The machine can be used for milling, drilling, reaming and reaming. It can realize the processing of complex parts such as discs, plates, shells, moulds, etc. It is suitable for the processing of various processes such as plane, bevel, groove and hole of various kinds of medium and small parts, and is the processing equipment for machinery, electronics, instruments, meters, moulds, automobiles and other indust.
High Precision CNC Milling VMC7126 Vertical Machine Center with ±0.003mm Repeatability
Products feature
High Precision CNC Milling VMC7126 Vertical Machine Center with ±0.003mm Repeatability
Spindle: adopts Taiwan high-speed spindle 8000rpm, simple and compact structure, high efficiency, low noise, low vibration and high precision. Screw: The guide screw adopts the imported JIS-C3 grinding grade pre-stretched nut screw to eliminate the backlash, after heat treatment, it has good rigidity, wear resistance, and guarantees the high precision of the operation. Auto tool changer: Taiwan hat type (16 knives) tool magazine. Advantages: low wear, long life, easy adjustment, and low failure rate.
High Precision CNC Milling VMC7126 Vertical Machine Center with ±0.003mm Repeatability
High Precision CNC Milling VMC7126 Vertical Machine Center with ±0.003mm Repeatability
Specification
Item
VMC7126
Table size (mm)
800×260
T-Slot Q-W(mm)–Distance(mm)
5-16-50
Max,load (kg)
400
Travel of X axis(mm)
450
Travel of Y axis(mm)
320
Travel of Z axis(mm)
420
Distance from spindle nose to table (mm)
70-480
Distance from center of spindle to Column guideway (mm)
360
Taper hole of spindle
BT40
Max speed of spindle (Rpm)
8000
Power of main power(kW)
3.7/5.5
X,Y,Z Rapid feed rate (m/min.)
16/16/16
fast cutting speed （mm/min）
10000
Accuracy
Positional accuracy mm
±0.01
Repeat positional accuracy mm
±0.005
Tools
Number
12
Time of tool changing
8
Operation pressure Mpa
0.6
Weight (kg)
2400
Dimension
2100×1760×1960mm
Standard configuration:(vmc7126 high speed 3 axis 4 axis cnc milling machine description price in pakistan)
High strength resin sand casting
Imported bearings for lead -srew; HIWIN/NSK
X, Y, Z rails adopt stainless steel telescopic cover
Eelectric cabinet cold heat exchanger
Standard with belt driven Taiwan spindle---8000RPM
Full enclosed cover
GSK25I controller system
Manual pulse generator (MPG)
16 tools type Taiwan ATC
Toolbox
Centralized automatic feed lubrication system
3 Axis lubrication oil collection
Air clean gun
Color display
Chip storage tank
Foundation pad iron and adjusting bolt
Three color warning lamp
USB and Internet interface
Cooling system
Leveling blocks & bolts;
Work lamp
Rigid tapping
Spindle center air blast
Optional configuration:(vmc7126 high speed 3 axis 4 axis cnc milling machine description price in pakistan)
Taiwan ATC, disc type ---24
4th /5th axis
Siemens or Fanuc controller system
Chip conveyor outside machine
3 axis Hiwin linear guide way
Tool measure system
Workpiece measure system
Main purchase parts brand
Name
Brand
Spindle Unit
Taiwan
Servo Motor
SIEMENS/GSK/FANUC
pressure cylinder
Taiwan SUNRISE
Screw bearing
FAG
Coupling
（R+W）
CNC Controller
SIEMENS/GSK/FANUC
Packing & Delivery
High Precision CNC Milling VMC7126 Vertical Machine Center with ±0.003mm Repeatability

1.Port: Qingdao port or Shanghai port 2.Payment method: T/T, L/C, D/P, D/D etc. 3.Payment: 30% T/T as deposit, 70% balance shall be paid before shipment. 4.Delivery time: 30 days after receive the 30%T/T deposit.5.Non-fumigation packaging, we use seaworthy plywood. 6. Steel base plate, it is stronger 3-5 times than normal plywood base plate. 7.Water-proof and damp proof, water resistant film wraped all the machine.

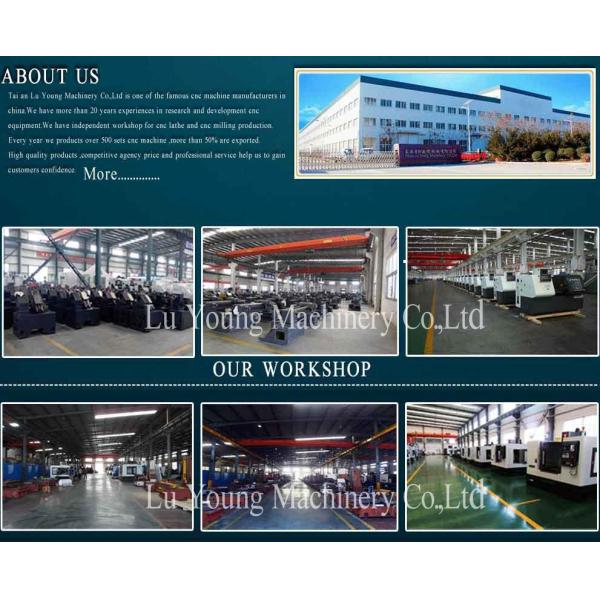

Company Profile
High Precision CNC Milling VMC7126 Vertical Machine Center with ±0.003mm Repeatability
Shandong Lu Young Machinery Co., Ltd., is a modern and high- tech company which is a professional manufacturer of CNC LATHE, CNC MILLING, CNC MACHINE CENTER . With 5,000sqm workshops and offices, we have more than 20 years experiences in cnc machine research and production.Our machines have been exported more than 40 countries.we welcome all customers and friends to come to our company! Regarding the technical force, we have the most professional research and development staff, who can meet all different requirements on technology and production. For the sales, there are internal trade department and international trade department. They are all professional salespersons who can help you solve problems on purchase and technology related to the CNC tools and test machines. Our products are sold both at home and abroad, and they are very popular around the world. All of products have pass CE certification.Welcome to contact with us to make business!!
Certifications
High Precision CNC Milling VMC7126 Vertical Machine Center with ±0.003mm Repeatability
With strong economic strength, advanced technical equipment and perfect testing means, our company has forged the excellent quality of our products. Our company is based on quality, market-oriented, customer-centered and service-oriented. Our company has won the civilized and honest private enterprise of Shandong Province, advanced unit of independent innovation in Shandong Province machinery industry, with the qualification of utility model patent certificate.
Exhibition
High Precision CNC Milling VMC7126 Vertical Machine Center with ±0.003mm Repeatability
High Precision CNC Milling VMC7126 Vertical Machine Center with ±0.003mm Repeatability
High Precision CNC Milling VMC7126 Vertical Machine Center with ±0.003mm Repeatability
High Precision CNC Milling VMC7126 Vertical Machine Center with ±0.003mm Repeatability
High Precision CNC Milling VMC7126 Vertical Machine Center with ±0.003mm Repeatability
High Precision CNC Milling VMC7126 Vertical Machine Center with ±0.003mm Repeatability
Our company has participated in a number of exhibitions to showcase our quality products. With our high quality products, advanced technology and equipment, and enthusiastic service, we have attracted a large number of customers at the exhibitions and have received unanimous praise.
FAQ
1. who are we?
We are based in Shandong, China, start from 2015,sell to Eastern Europe(33.00%),Southeast Asia(17.00%),South America(13.00%),Western Europe(8.00%),Mid East(8.00%),South Asia(4.00%),North America(4.00%),Central America(4.00%),Northern Europe(4.00%),Africa(4.00%). There are total about 11-50 people in our office.

2.How long is the warranty period of the machine?
Warranty period is one year, if parts damage within one year, we will send free of charge. Free online training or factory
training to ensure that you can use our products properly. We can offer overseas paid installation, commissioning service.

3.what can you buy from us?
CNC Lathe Machine, CNC Milling Machines, Manual Lathe Machine, Metal Band Saw Machines, Manual Milling Machine

4. why should you buy from us not from other suppliers?
20 Years Experiences Research and Development for CNC Machine Friendly Factory Price and High Quality Professional technology team to help you choose the most suitable configuration. 7X24 hours telephone and online service for free.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
