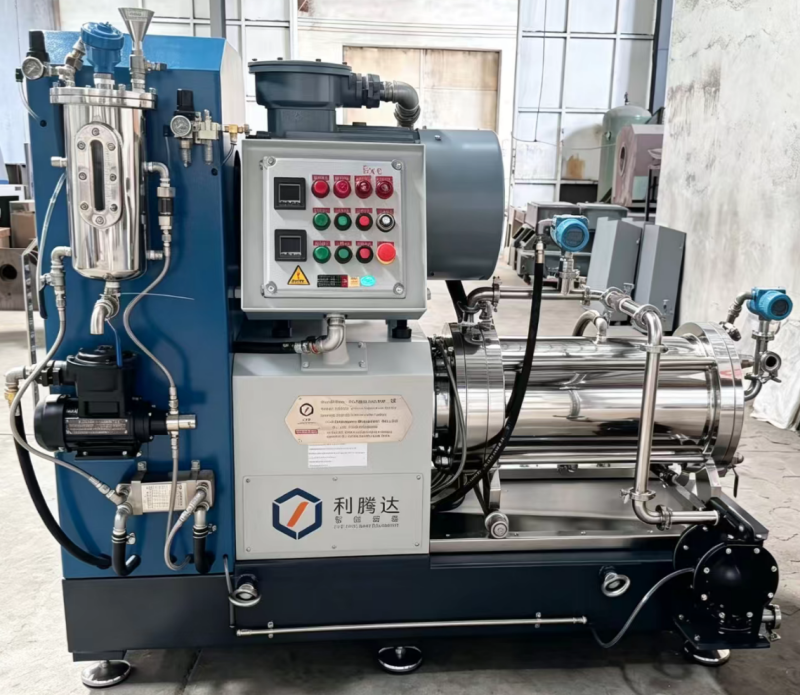

Explosion Proof Pin Type Horizontal Sand Mill Machine 30L with Four Point Cooling System
Explosion Proof Pin Type Horizontal Sand Mill Machine 30L with Four Point Cooling System
Explosion Proof Pin Type Horizontal Sand Mill Machine 30L with Four Point Cooling System
Explosion Proof Pin Type Horizontal Sand Mill Machine 30L with Four Point Cooling System
Explosion Proof Pin Type Horizontal Sand Mill Machine 30L with Four Point Cooling System
Explosion Proof Pin Type Horizontal Sand Mill Machine 30L with Four Point Cooling System
Specifications
Chamber Capacity :
30 L
Discharge System :
Static Screen with Large Discharge Area
Place of Origin :
Guangdong, China
Payment Terms :
T/T,L/C,Western Union
Grinding Fineness :
10 um - 2 um
Inner Cylinder Material :
Wear-resisting Alloy Steel / Silicon Carbide
Overall Dimensions :
1700 x 1050 x 1850 mm
Control System :
PLC touch screen with automatic process monitoring
Price :
Price negotiable
Packaging Details :
Export wooden case with bubble wrap protection
Grinding Media Size :
0.8-2.0 mm
Explosion Proof :
Explosion-proof motor and electrical components for flammable solvent environments
Seal Type :
Double-end Mechanical Seal
Machine Weight :
1300 kg
Outer Cylinder Material :
Stainless Steel 304
Pins Material :
Tungsten Carbide / Polyurethane (PU)
MOQ :
1 Set
Motor Power :
37 kW
Supply Ability :
10 Sets per Month
Model Number :
LTD30B
Delivery Time :
15-30 working days after deposit
Rotor Material :
Wear-resisting Alloy Steel / Polyurethane (PU)
Production Capacity :
100-800 L/h
Application :
Paint, Ink, Coating, Pigment Wet Grinding and Dispersion
Brand Name :
LTD
Model :
LTD30B
Voltage :
380V 50Hz 3 Phase
Certification :
ISO 9001:2015, CE
Cooling System :
Four-point cooling covering chamber, shaft, front-end panel and discharge area
Description

Explosion Proof Pin Type Horizontal Sand Mill Machine 30L

This 30L pin type horizontal sand mill is engineered for safe and stable wet grinding of solvent-based and water-based products. Featuring explosion-proof motor and electrical components, a four-point cooling system and PLC touch screen control, it delivers consistent nano-scale dispersion for paint, ink and coating production.

Key Features

  • Explosion-proof motor and electrical components for safe operation in flammable solvent environments
  • Four-point cooling system covering chamber, shaft, front-end panel and discharge area for precise temperature control
  • PLC touch screen control panel with automatic process monitoring and parameter setting
  • Specially designed pins structure with high wear resistance, corrosion resistance and strong shearing force
  • Static screen discharge with large discharge area, high efficiency and no gravity limitation
  • Compatible with zirconia beads from 0.8 mm to 2.0 mm for flexible grinding media selection
  • Double-end mechanical seal for long service life and leak-proof operation
  • Grinding fineness from 10 um to 2 um

Technical Parameters (LTD30B)

Chamber capacity 30 L
Motor power 37 kW
Production capacity 100-800 L/h
Media size 0.8-2.0 mm
Grinding fineness 10 um - 2 um
Machine weight 1300 kg
Overall dimensions 1700 x 1050 x 1850 mm

Standard Configurations

For solvent-based products:

  • Outer cylinder material: Stainless steel 304
  • Inner cylinder material: Wear-resisting alloy steel
  • Rotor material: Wear-resisting alloy steel
  • Pins material: Tungsten carbide and wear-resisting alloy steel

For water-based products:

  • Outer cylinder material: Stainless steel 304
  • Inner cylinder material: Silicon carbide
  • Rotor material: Polyurethane (PU)
  • Pins material: Polyurethane (PU)

Applications

Ideal for wet grinding and dispersion of paint, ink, coating and pigment, especially solvent-based systems requiring explosion-proof operation, and hard-to-grind materials such as carbon black and titanium blue.

Support and Services

  • Comprehensive technical support for installation, operation and maintenance
  • Troubleshooting assistance for any malfunctions
  • Operator training programs to maximize efficiency

Packing and Shipping

The machine is carefully packed in an export wooden case with bubble wrap protection. Orders are typically processed within 1-2 business days with tracking number provided.
