1.5L Capacity Sand Mill Machine Pin Type Horizontal Laboratory Bead Mill
1.5L Capacity Sand Mill Machine Pin Type Horizontal Laboratory Bead Mill
1.5L Capacity Sand Mill Machine Pin Type Horizontal Laboratory Bead Mill
1.5L Capacity Sand Mill Machine Pin Type Horizontal Laboratory Bead Mill
1.5L Capacity Sand Mill Machine Pin Type Horizontal Laboratory Bead Mill
1.5L Capacity Sand Mill Machine Pin Type Horizontal Laboratory Bead Mill
Specifications
Brand Name :
LTD
Model Number :
LTD1.5B
Certification :
CE,ISO
Place of Origin :
Dongguan,China
MOQ :
1set
Payment Terms :
T/T
Supply Ability :
20-30 sets per month
Delivery Time :
20-25 days
Packaging Details :
Standard export wooden case
Price :
USD4800-5000/set
Name :
Laboratory horizontal pin type sand mill
Grinding capacity :
1.5 Litrs
Motor power :
4kw
Inner chamber material :
Wear-resistant hard alloy steel/Silicon carbide(SiC)
Inside structure :
Ceramic pins
Discharge seprator material :
tungsten carbide
Grinding medium :
Zirconia beads,0.6-0.8mm
Power supply :
380V 50Hz 3Phase (can be customized)
Description

LTD-B Series 1.5L capacity laboratory horizontal pin type sand mill / bead mill machine

1. Application:

Suitable for grinding low and medium viscosity(less than 20000cps) products ink,car paint,anti- corrosion coatings,color paste,wood coatings etc. with super fineness 10-2μm.

2.Standard configuration:

Outer chamber:stainless steel 304

Inner chamber:Wear-resistant hard alloy steel/Silicon carbide(SiC)

Pins:Ceramic (zirconia)

Discharge separator:tungsten carbide

Mechanical seal:Burgmann from German

3.Technical Parameters:

Chamber capacity: 1.5L

Rotor speed:0-2900RPM with inverter,line speed:10.6m/s

Cooling water temperature:5-20℃

Cooling water inlet&outlet hole diameter: 1/2”

Pressure gauge:0-0.6Mpa(adjustable),explosive

Drive:Belt pulley

Discharge gap:0.35mm

Zirconia beads :CZY-95%,0.6-0.8mm

Zirconia beads filling:4kgs

Motor power:4kw,

Explosion proof,380V/50Hz/3Phase

Cooling water flow:About 200L/ Hour

Cooling water pressure:0.4Mpa

Feeding pump:1”ARO pneumatic diaphragm pump

Temperature gauge:0- 100℃(adjustable),explosive

Bearing:SKF from Japan

Discharge type:Dynamic blade ring

Grinding process

1.5L Capacity Sand Mill Machine Pin Type Horizontal Laboratory Bead Mill

Structure classification of Horizontal Sand Mill
1.5L Capacity Sand Mill Machine Pin Type Horizontal Laboratory Bead Mill
Material classification of Horizontal Sand Mill Spare Parts
1.5L Capacity Sand Mill Machine Pin Type Horizontal Laboratory Bead Mill

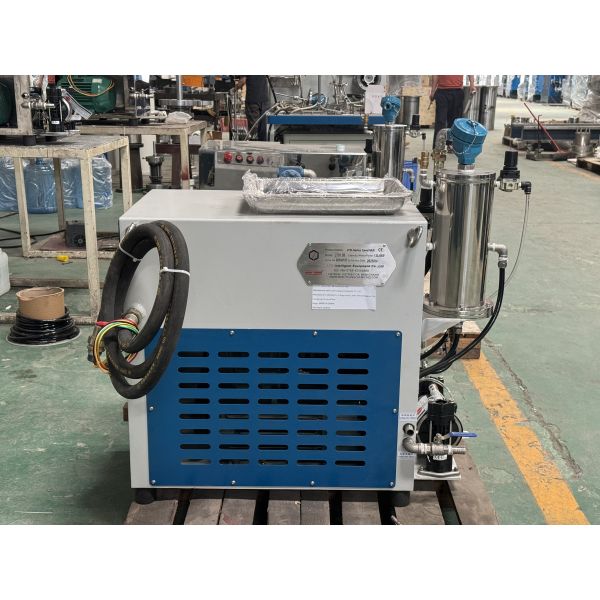

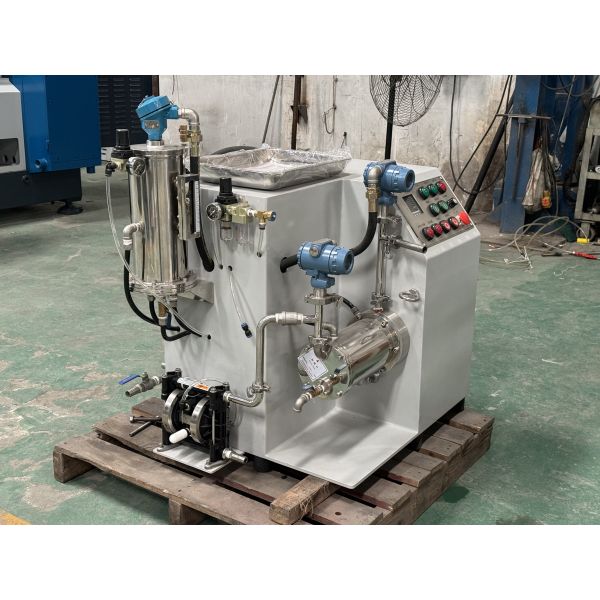

Real photos:

1.5L Capacity Sand Mill Machine Pin Type Horizontal Laboratory Bead Mill

1.5L Capacity Sand Mill Machine Pin Type Horizontal Laboratory Bead Mill

1.5L Capacity Sand Mill Machine Pin Type Horizontal Laboratory Bead Mill

Industry

1.5L Capacity Sand Mill Machine Pin Type Horizontal Laboratory Bead Mill

1.5L Capacity Sand Mill Machine Pin Type Horizontal Laboratory Bead Mill

Our factory

1.5L Capacity Sand Mill Machine Pin Type Horizontal Laboratory Bead Mill

1.5L Capacity Sand Mill Machine Pin Type Horizontal Laboratory Bead Mill

1.5L Capacity Sand Mill Machine Pin Type Horizontal Laboratory Bead Mill

1.5L Capacity Sand Mill Machine Pin Type Horizontal Laboratory Bead Mill

1.5L Capacity Sand Mill Machine Pin Type Horizontal Laboratory Bead Mill

Our certificates

1.5L Capacity Sand Mill Machine Pin Type Horizontal Laboratory Bead Mill

Customer's case

1.5L Capacity Sand Mill Machine Pin Type Horizontal Laboratory Bead Mill

Support and Services:

Product Technical Support and Services:

- Comprehensive technical support for installation, operation, and maintenance

- Troubleshooting assistance for any issues or malfunctions

- Guidance on optimizing the performance of the equipment

- Training programs for operators to ensure proper usage and maximize efficiency

Packing and Shipping:

Product Packaging:

The machine is carefully packaged in a wooden case to ensure safe transportation. The product is securely wrapped in bubble wrap to prevent any damage during shipping.

Shipping:

Orders are typically processed within 1-2 business days. Once shipped, you will receive a tracking number to monitor the delivery status of your sand mill/bead mill product. We partner with reliable shipping carriers to ensure timely delivery to your doorstep.

FAQ:

Q: What is a sand mill/bead mill?

A: A sand mill/bead mill is a grinding machine used to reduce particle size by agitating beads in a liquid medium.

Q: What are the typical applications of a sand mill/bead mill?

A: Sand mills/bead mills are commonly used in industries such as paint, ink, coatings, and pigments for wet grinding and dispersion of materials.

Q: How does a sand mill/bead mill work?

A: In a sand mill/bead mill, the grinding chamber contains small beads that are agitated by a rotating shaft, causing the beads to collide and break particles down to the desired size.

Q: What are the advantages of using a sand mill/bead mill?

A: Some advantages of sand mills/bead mills include efficient particle size reduction, uniform particle distribution, and the ability to process a wide range of materials.

Q: How to choose the right sand mill/bead mill for my application?

A: When selecting a sand mill/bead mill, factors such as the desired particle size, material viscosity, production capacity, and required fineness should be considered to ensure optimal performance for your specific application.
