Multi Function Horizontal Automatic Pillow Flow Film Pouch Paper Facial Hotel Toilet
Multi Function Horizontal Automatic Pillow Flow Film Pouch Paper Facial Hotel Toilet
Specifications
Delivery Time :
20-30Workday
application :
Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Textiles
Place of Origin :
China
Packaging Details :
Wooden crate packaging or fixed frame
automatic grade :
Automatic
Boxing :
Boxing
core components :
PLC
Weight (KG) :
1500
driven type :
Electric
machinery test report :
Provided
dimension(l*w*h) :
1800*1600*1800
Certification :
CE
Brand Name :
LOVO
MOQ :
1
Price :
4900-5700
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
Shipment can be made within 30 days of receiving the deposit
Model Number :
P-500
Filling Material :
Solid
Voltage :
220 V
Description

Horizontal Multi-function Automatic Pillow Flow Film Pouch Paper Facial Lundry Hotel Toilet Small Scale Soap Bar Wrapping

Machine Introduction

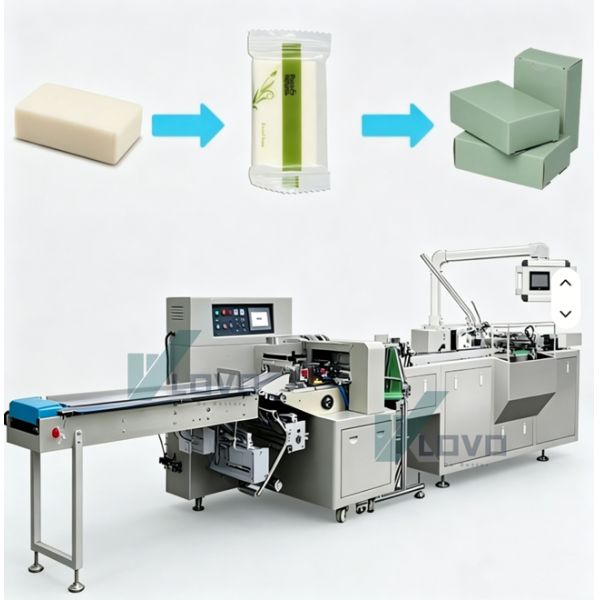

This integrated packaging system combines a flow pack machine and an automatic cartoning machine into a seamless, end-to-end production line. Functionally, the flow pack unit first encapsulates products in protective plastic film wrappers, after which an automated transfer system conveys these packaged units directly into the feeding zone of the cartoning machine. The cartoning module then precisely loads the flow-packed products into pre-formed boxes or cartons, completing the secondary packaging stage without manual intervention. This continuous workflow—from primary film wrapping to final boxed presentation—is engineered for high-speed operation across diverse industries including food & beverage (snacks, confectionery, bakery items), health products (blister packs, sachets), cosmetics (tubes, compacts), and consumer goods (electronics, hardware). The line's core advantages include significant labor reduction through complete automation, minimized product handling for enhanced hygiene and damage prevention, optimized floor space utilization via compact integration, consistent packaging quality through synchronized operation, and scalable throughput capabilities to meet varying production demands.
Multi Function Horizontal Automatic Pillow Flow Film Pouch Paper Facial Hotel Toilet
Model
DS-100
DS-120
DS-250
Packing Speed
40~60 boxes/min
30~50 boxes/min
30~50 boxes/min
Box Size
L:60~220mm
L:80~250mm
L:150~320mm
W:20~125mm
W:100~160mm
W:100~180mm
H:15~60mm
H:40~90mm
H:90~110mm
Air Consumption
≥0.6 mpa, 20 m³/h
Power Supply
220V/380V, 50HZ
Machine Power
4.5KW
5.5KW
6.5KW
Machine Size
3425*1390*1771mm
3450*1450*1800mm
4200*1650*1850mm
Machine Weight
1200KG
1600KG
2500KG
Machine Details
Multi Function Horizontal Automatic Pillow Flow Film Pouch Paper Facial Hotel Toilet
Forming, filling and sealing device
A. Bag former: adjustable size bag former, adjust bag length and width according to product size. B. Middle heat sealing device: independent temperature controlled sealing device, can quickly and stably seal the packaging film.
Multi Function Horizontal Automatic Pillow Flow Film Pouch Paper Facial Hotel Toilet
Rotary Cutter Device
The high-speed rotating cutter cuts the bag while sealing at high temperature to complete the packaging.
Multi Function Horizontal Automatic Pillow Flow Film Pouch Paper Facial Hotel Toilet

HMI Control System

Touch screen panel for parameter adjustments and monitoring.

Carton Magazine

Stores flat cartons and feeds them one by one.
Multi Function Horizontal Automatic Pillow Flow Film Pouch Paper Facial Hotel Toilet
Carton Handling & Product Loading System
A. Carton Erecting Unit: Vacuum suction cup device unfolds flat cartons into 3D shapes.
B. Pusher Plates Insertion Mechanism: For high-speed insertion of standardized products into cartons.
Leaflet/Foam Insertion (Optional): Adds instructions, leaflets, or cushioning materials.
Multi Function Horizontal Automatic Pillow Flow Film Pouch Paper Facial Hotel Toilet
Carton Folding & Product Closing System
Carton Transport Chain: Moves erected cartons through subsequent stages.
C. Flap Folding Units: Pre-Folding: Partially closes carton flaps.
Final Folding: Secures flaps into final position.
D. Sealing Mechanism: Glue Sealing: Hot melt glue nozzles or cold glue applicators.
Tuck-In Closure: Mechanical tuckers for glue-free sealing.
Multi Function Horizontal Automatic Pillow Flow Film Pouch Paper Facial Hotel Toilet
Carton Rejection & Output System
E. Output Conveyor: Transfers finished cartons to downstream equipment.
Defect Rejection Unit: Removes faulty cartons.
Counter & Batching: Tracks production volume and groups cartons into batches.
Get Your Tailored Packaging Solution!

To recommend the optimal machine and provide a fast quote, please share:

1. Share your product information with us: product type, pictures and sizes.
2. Confirm your box type and size.
Straight Tuck Box (ST)
Multi Function Horizontal Automatic Pillow Flow Film Pouch Paper Facial Hotel Toilet
FAQ

1. What types of soap bars can this machine wrap?

This machine wraps facial soap bars, laundry soap bars, hotel soap bars, and toilet soap bars. It handles both small guest-size bars (20-50g) and larger laundry bars (100-300g) with adjustable settings.

2. Can this machine use both plastic film and paper pouches?

Yes, this is a multi-function machine that works with both plastic flow wrap film (OPP/PE) and paper packaging materials. You can switch between materials based on your product requirements.

3. What is the wrapping speed for small scale production?

The wrapping speed is adjustable, typically 20–60 packs per minute depending on soap bar size and wrapping material. This range is ideal for small to medium scale production.

4. How do I change the bag size for different soap bars?

Bag size change takes 5–10 minutes. Adjust the forming tube, sealing jaws, and film roll width via the control panel and simple mechanical adjustments. No special tools required.

5. Is this machine suitable for a small soap business startup?

Absolutely. This machine is designed for small scale production – it is compact, affordable, easy to operate, and handles multiple soap types. Perfect for craft soap makers and small hotel soap suppliers.
