Horizontal Automatic Solid Soap Flow Wrapping Packaging Machine Bar Soap Bowl For Pillow Bag
Horizontal Automatic Solid Soap Flow Wrapping Packaging Machine Bar Soap Bowl For Pillow Bag
Specifications
Place of Origin :
China
Weight (KG) :
1800
Certification :
CE
Delivery Time :
20-30Workday
automatic grade :
fully Automatic
Packaging Details :
Wooden crate packaging or fixed frame
MOQ :
1
Voltage :
220 V/380V
Supply Ability :
Shipment can be made within 30 days of receiving the deposit
machinery test report :
Provided/
Model Number :
P-500
Brand Name :
LOVO
dimension(l*w*h) :
1700*1500*1700
core components :
PLC
Packing Speed :
40~60 boxes/min
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Price :
4900-5700
driven type :
Electric and air
Description

BG-350 Horizontal Automatic Solid Soap Flow Wrapping Packaging Machine Bar Soap Bowl Flexible Packing Machine for Pillow Bag

Machine Introduction

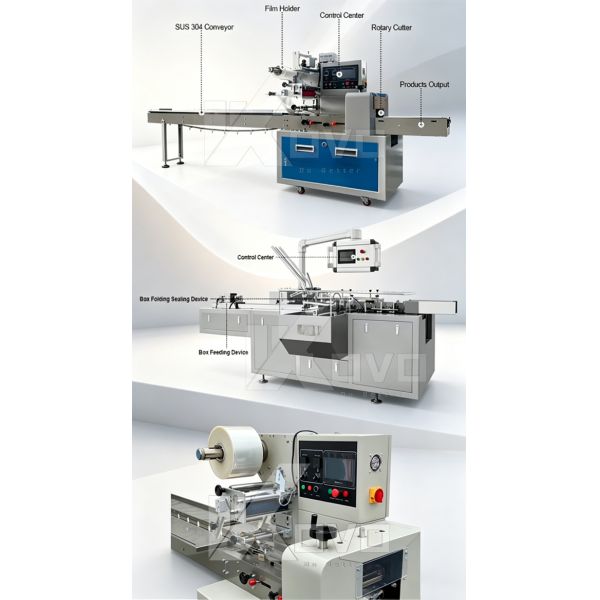

This turnkey packaging line brings together a flow wrapping machine and an automatic cartoner into one smooth, start-to-finish production system.

How it works:
The flow wrapper starts by sealing products inside protective plastic film. From there, an automated transfer system moves these wrapped items directly into the cartoning machine's infeed area. The cartoner then accurately places the flow-wrapped products into pre-formed boxes or cartons — finishing the secondary packaging stage without any hands-on involvement.

What it produces:
This continuous sequence — from initial film wrap to final boxed package — is designed for high-speed operation across many industries. Examples include:

  • Food & beverage (snacks, candies, baked goods)

  • Health products (blister packs, stick packs)

  • Cosmetics (tubes, powder compacts)

  • Consumer goods (electronics, hardware)

Why it stands out:

  • Full automation means big labor savings

  • Less product handling boosts hygiene and reduces damage

  • Compact, integrated design saves floor space

  • Synchronized operation ensures uniform packaging quality

  • Throughput can scale to meet changing production needs

Horizontal Automatic Solid Soap Flow Wrapping Packaging Machine Bar Soap Bowl For Pillow Bag
Model
DS-100
DS-120
DS-250
Packing Speed
40~60 boxes/min
30~50 boxes/min
30~50 boxes/min
Box Size
L:60~220mm
L:80~250mm
L:150~320mm
W:20~125mm
W:100~160mm
W:100~180mm
H:15~60mm
H:40~90mm
H:90~110mm
Air Consumption
≥0.6 mpa, 20 m³/h
Power Supply
220V/380V, 50HZ
Machine Power
4.5KW
5.5KW
6.5KW
Machine Size
3425*1390*1771mm
3450*1450*1800mm
4200*1650*1850mm
Machine Weight
1200KG
1600KG
2500KG
Machine Details
Forming, filling and sealing device

A. Bag Former
Comes with an adjustable former — bag length and width can be changed to fit different product sizes.

B. Middle Heat Sealing Device
Features independent temperature control for fast, reliable film sealing.

Horizontal Automatic Solid Soap Flow Wrapping Packaging Machine Bar Soap Bowl For Pillow Bag

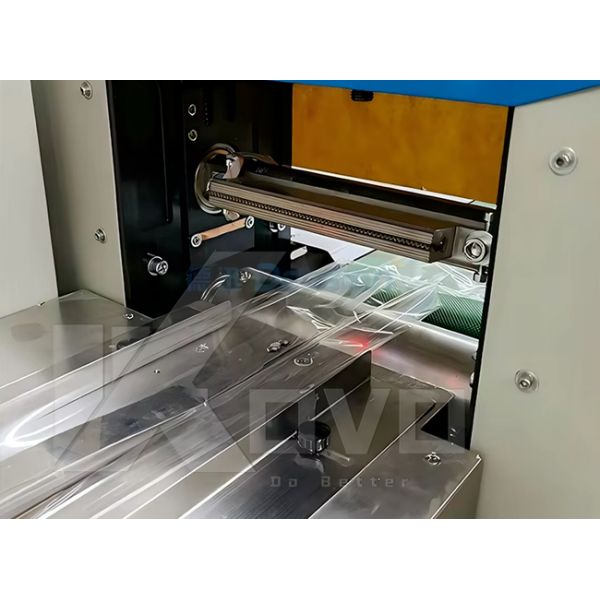

Rotary Cutter Device
Horizontal Automatic Solid Soap Flow Wrapping Packaging Machine Bar Soap Bowl For Pillow Bag
The packaging is completed by a fast-spinning cutter that simultaneously slices through the bag and applies heat to create a seal.

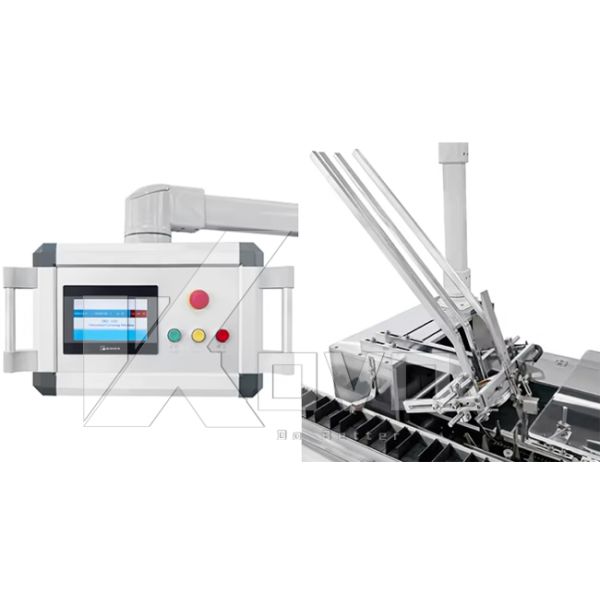

HMI Control System

Touch screen panel for parameter adjustments and monitoring.

Carton Magazine

Stores flat cartons and feeds them one by one.
Horizontal Automatic Solid Soap Flow Wrapping Packaging Machine Bar Soap Bowl For Pillow Bag

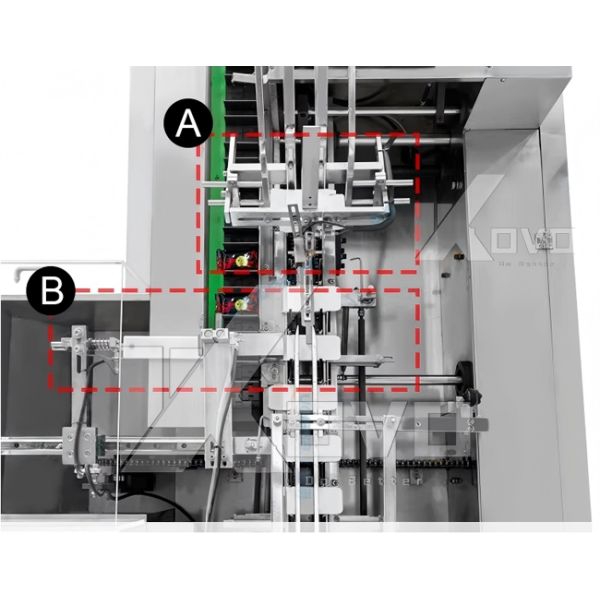

Carton Handling & Product Loading System
A. Carton Erecting Unit: Vacuum suction cup device unfolds flat cartons into 3D shapes.
B. Pusher Plates Insertion Mechanism: For high-speed insertion of standardized products into cartons.
Leaflet/Foam Insertion (Optional): Adds instructions, leaflets, or cushioning materials.
Horizontal Automatic Solid Soap Flow Wrapping Packaging Machine Bar Soap Bowl For Pillow Bag

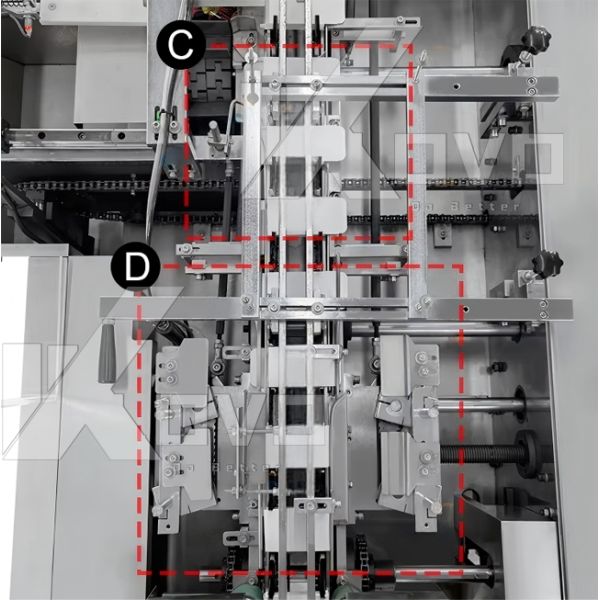

Carton Folding & Product Closing System
Carton Transport Chain: Moves erected cartons through subsequent stages.
C. Flap Folding Units: Pre-Folding: Partially closes carton flaps.
Final Folding: Secures flaps into final position.
D. Sealing Mechanism: Glue Sealing: Hot melt glue nozzles or cold glue applicators.
Tuck-In Closure: Mechanical tuckers for glue-free sealing.
Horizontal Automatic Solid Soap Flow Wrapping Packaging Machine Bar Soap Bowl For Pillow Bag

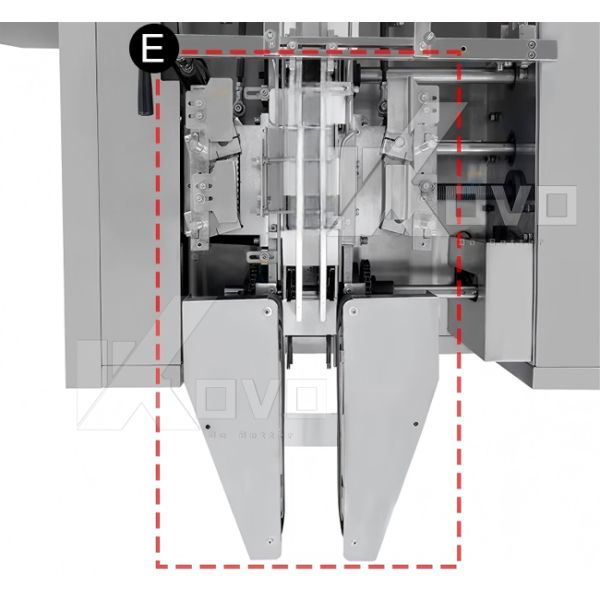

Carton Rejection & Output System

E. Output Conveyor
Sends finished cartons onward to the next stage of the line.

Defect Rejection Unit
Automatically pulls out any defective cartons.

Counter & Batching
Monitors total output and organizes cartons into batch sets.

Get Your Tailored Packaging Solution!

To recommend the optimal machine and provide a fast quote, please share:

1. Share your product information with us: product type, pictures and sizes.
2. Confirm your box type and size.
Horizontal Automatic Solid Soap Flow Wrapping Packaging Machine Bar Soap Bowl For Pillow Bag
FAQ:

1. What products can the BG-350 machine pack?

The BG-350 packs solid soap bars, soap bowls, bath soap, laundry soap, and toilet soap. It handles both rectangular bars and round/oval soap bowls with adjustable forming tube and sealing jaws.

2. What is the packing speed of the BG-350?

The packing speed is adjustable, typically 30–100 packs per minute depending on product size and film type. The BG-350 is known for reliable high-speed performance.

3. What is a pillow bag packing machine?

A pillow bag packing machine (flow wrapper) wraps products in plastic film, seals the edges, and cuts individual packs – creating a pillow-shaped package. It is fully sealed and ready for sale.

4. Can this machine pack both bar soap and soap bowls?

Yes, the BG-350 handles both bar soap and soap bowls. Changing between product shapes takes 5–10 minutes – adjust the forming tube and sealing jaws via the control panel.

5. What film materials are compatible with the BG-350?

The BG-350 works with most heat-sealable films including polyethylene (PE), polypropylene (PP), OPP, and laminated films. The sealing temperature is adjustable for different materials.
