300kg/h Automatic Laundry Soap Production Line for Industrial Soap Manufacturing

Machine components:

Soap production line consists of mixer, three-roller mill, double-layer vacuum plodder, soap cutting machine

Production process:

The production process begins with soap particles as raw materials. These particles are first fed into a mixer for thorough blending. Subsequently, a conveyor belt transports the mixed material to a three-roller mill for fine grinding, which ensures that the soap components are uniformly integrated for better consistency. The ground mixture is then conveyed to a double-layer vacuum plodder, where it is extruded into long, continuous soap bars. Finally, the bars are fed into a cutting machine and precisely cut into individual soap bars of desired lengths. To meet diverse customer needs, the products are fully customizable—including the soap's color, fragrance, and logo, allowing for personalized adjustments based on specific requirements.

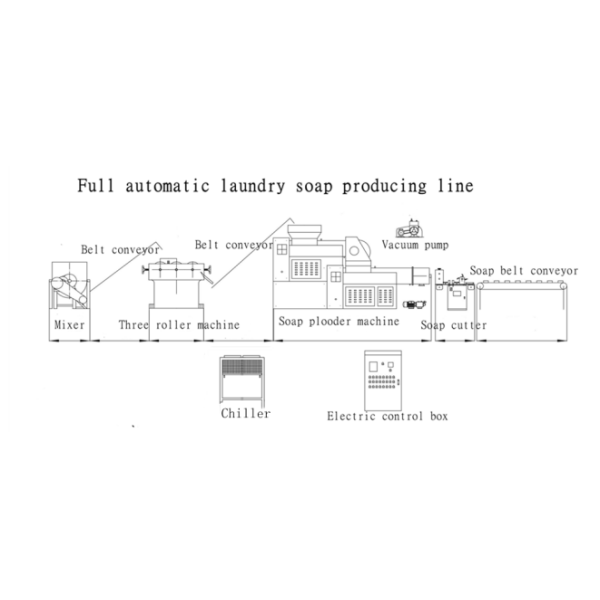

Production Flowchart:

Detailed machine specifications:

Photos	Name	Introduction
	mixer	Mixer: Capacity :75kg per time Power :4kw/h Batch time:3-5minutes. Dimension :1550*800*1130mm Weight :320kg Capacity: one time batch 75kg, it can batch 6 times per hour, one batch need 5 minutes
	Three-Roller Mill	Three-Roller Mill Roller diameter:150mm Roller working length:300mm Power:2.2kw Dimension:820*800*920mm Weight: 800kg
	Double-Layer Vacuum Plodder	Double-Layer Vacuum Plodder: Capacity:300kg/h Power:5.5KW,7.5kw adjustable motor Dimension:2860*1100*2050mm Weight:1870kg
	Electric cutter machine	Electric cutting machine: It has an electronic cursor tracking system and can cut soap by any size and weight after computer setted. It is driven by soap bars, and the finished soap is accurate to ±1g/±1mm. PLC Brand: DELTA Servo control system brand: DELTA Maximum cutting speed : The cutting speed is determined by the speed of the bar machine(100-3000kg/h) Soap bar length: 70mm-600mm, thickness ≤55mm, width ≤90mm Cutting accuracy: ±1g Motor power: 1.2kw Overall dimensions: 820x500x1080mm Equipment weight: 110kg

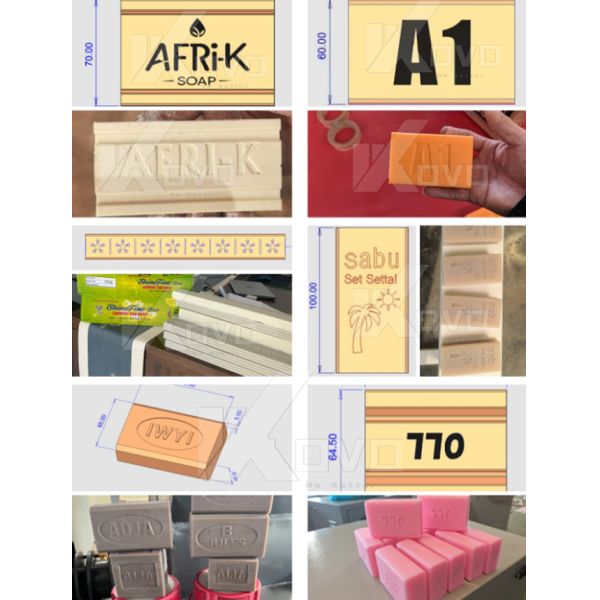

Mold drawings and finished product drawings:

Customer visit:

Shipments:

After-sales Service:

Before installation, the seller will provide the layout drawing, and information of total line power, individual machine power, power connections, water & air input and output position, total water consumption. After the machines arrival in buyer site and put into position, the seller should help the buyer connect the water, electricity, air and vacuum gas with the machines, if necessary, the seller shall send 1~2 technicians to help start-up the line for production, on-line training and production supervision. The buyer shall pay the salary to the engineer, USD150 per day per person,, as well as round-trip transportation from our factory to buyer’s factory, the visa application fee, food, transportation and accommodation

FAQ:

Q1: What is the brand and model number of the Fully Automatic Soap Machine?

A1: The Fully Automatic Soap Machine is branded LOVO and the model number is XT300.

Q2: Where is the LOVO XT300 soap machine manufactured?

A2: The LOVO XT300 is manufactured in China.

Q3: What certifications does the LOVO XT300 have?

A3: The LOVO XT300 is CE certified, ensuring it meets European safety and quality standards.

Q4: What is the minimum order quantity and price range for the LOVO XT300?

A4: The minimum order quantity is 1 unit, and the price ranges from USD 5999 to USD 9999 depending on configuration.

Q5: How is the LOVO XT300 packaged and what is the delivery time?

A5: The LOVO XT300 comes in wooden box packaging and the delivery time is approximately 30 working days after payment is received.

Q6: What payment methods are accepted for purchasing the LOVO XT300?

A6: Payment can be made via T/T (Telegraphic Transfer), Western Union, or Letter of Credit.
