100-150kg/H Capacity And Soap Production Line Soap Noodles Making Machine
100-150kg/H Capacity And Soap Production Line Soap Noodles Making Machine
100-150kg/H Capacity And Soap Production Line Soap Noodles Making Machine
100-150kg/H Capacity And Soap Production Line Soap Noodles Making Machine
100-150kg/H Capacity And Soap Production Line Soap Noodles Making Machine
100-150kg/H Capacity And Soap Production Line Soap Noodles Making Machine
Specifications
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C,T/T,D/A,D/P,Western Union
Technical Support :
One-Year Remote Warranty Service
Certification :
CE
Supply Ability :
666
Price :
2600-4200
Brand Name :
LOVO
Model Number :
XT100
Delivery Time :
10-25
Description
300-800kg/h Capacity and Soap Product Type soap noodles mixing machine price

I. Brief introduction

This whole set of toilet soap making machine is designed to produce toilet soap. Material is soap noodle (soap grains).

II. Product process

1. Mix all materials by mixing agitator, grind soap noodles by three-roller mill, make soap materials into soap bar by vacuum plodder, and cut soaps by stamping machine.

2. Distribution boxes are used to control all the motors of machines, and conveyors are used to transport soap materials.

3. Water pump is used to make the water to cool down the vacuum plodder, and vacuum pump is used to vacuumize the soap materials.

4. The parts of mixing agitator and vacuum plodder that touch the soap materials are made of stainless steel 304.

Key attributes
product type Soap core components PLC,Engine,Bearing,Motor,Pressure Vessel
warranty 1Year machinery test report Not Available
video outgoing-inspection Provided key selling points High Productivity
Capacity 150 brand name DB Group
place of origin Henan,China weight (kg) 1500
After-sales Service Provided Engineers available to service machinery overseas Machine Type soap production line
Capacity 100-150 KG/H certificate CE,ISO
Power 60KW VOLTAGE 380V,50HZ,3 phase,custom-tailor
Condition New Showroom Location None
Warranty of core components 1Year Applicable Industries Other



100-150kg/H Capacity And Soap Production Line Soap Noodles Making Machine
Models and capacities
Model References XT100 XT-300 XT-500 XT800
Production Capacity 100-150kg 150-300kg/h 300-500Kg/h 600-800 Kg/h
Outside Diameter of screw 100 200mm 300mm 400mm
Rotational Speed of Screw Upper screw 10rpm Lower screw 8—16rpm Upper screw 12rpm Lower screw 8—16rpm Upper screw 12rpm Lower screw 10—16rpm
Power of Motor 4KW Upper strip 5.5KW Lower strip 7.5KW Small Y160L—6 11KW Large YCT —250—4A 18.5KW 120—1200rpm
Size 2200*800*1600mm 2810×900×1830mm 3758×1000×2275mm
weight 2300 3200kg 5550kg

Fully Automatic Soap Printing Machine for High Efficiency

100-150kg/H Capacity And Soap Production Line Soap Noodles Making Machine

1,Three roller milling machine

1. size :1350*1670*1050mm

2. power :15kw

3. frequency :50HZ

4. voltage :380v

5. functon :rubbing soap material

100-150kg/H Capacity And Soap Production Line Soap Noodles Making Machine

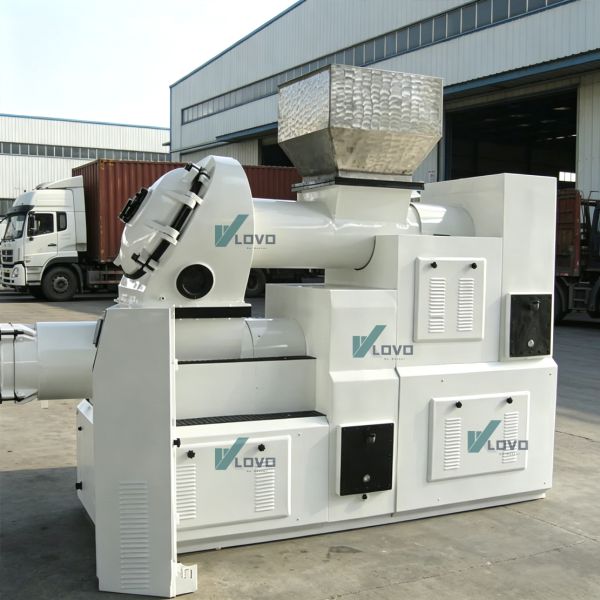

2, Sopa extruding machine

1. size:3750*900*2100mm

2. power :35.5kw ,

3. frequency :50HZ

4. voltage :380v

5. functon :vacuum ploddering

Finished Products
100-150kg/H Capacity And Soap Production Line Soap Noodles Making Machine
Our Customer
100-150kg/H Capacity And Soap Production Line Soap Noodles Making Machine
About this supplier

Our company is a trusted manufacturer of high-quality curb stone machines and concrete block production equipment. With years of experience in the construction machinery industry, we provide automated, efficient, and durable solutions for businesses worldwide. Our machines are designed for precision, energy efficiency, and easy operation, helping clients achieve higher productivity with minimal labor. We are committed to offering customized solutions, exceptional customer service, and reliable after-sales support. Whether for small projects or large-scale construction, our company is your ideal partner for all your paving and block production needs.

100-150kg/H Capacity And Soap Production Line Soap Noodles Making Machine
Contact Us
100-150kg/H Capacity And Soap Production Line Soap Noodles Making Machine
FAQ
1,The payment Our company accepts T T, L/C, D/P, D/A, Western Union for clients.
2,The delivery time Generally it is 5-7 days if the Products are in stock. Or it is 7-15 days if the products are not in stock, it is according to quantity.
3,About quality
Welcome to our factory and check the quality of products. Besides, we will send you the video and pictures before shipment after your order.
4, Equipment warranty
Equipment with 12 months warranty, which can be extended to 15-18 months as request.
5, How to install and run the machine?
Our technicians have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. It's very easy to install them.
6, Don't know which type you need?
Please send us your requirement or contact us directly! We will choose the right model for you.
