Light Sensing + Microwave 0-10V BLE Tuya Roads Lawns Courtyards Parks
Light Sensing + Microwave 0-10V BLE Tuya Roads Lawns Courtyards Parks
Light Sensing + Microwave 0-10V BLE Tuya Roads Lawns Courtyards Parks
Light Sensing + Microwave 0-10V BLE Tuya Roads Lawns Courtyards Parks
Light Sensing + Microwave 0-10V BLE Tuya Roads Lawns Courtyards Parks
Light Sensing + Microwave 0-10V BLE Tuya Roads Lawns Courtyards Parks
Light Sensing + Microwave 0-10V BLE Tuya Roads Lawns Courtyards Parks
Light Sensing + Microwave 0-10V BLE Tuya Roads Lawns Courtyards Parks
Light Sensing + Microwave 0-10V BLE Tuya Roads Lawns Courtyards Parks
Light Sensing + Microwave 0-10V BLE Tuya Roads Lawns Courtyards Parks
Specifications
Brand Name :
LongJoin
Model Number :
JL-712B2
Place of Origin :
China
Price :
negotiable
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Payment Terms :
Western Union,MoneyGram,T/T
Power Supply :
Rated voltage：12~24VDC Rated current：40mA
Power Consumption :
＜0.6W
Sensor Type :
Light-sensitive + Microwave
Dimming interface :
Type：0~10V Accuracy：±2%
Certifications :
RoHS,CE
Real-world Scenarios :
Smart Commercial Districts
Description
Light Sensing + Microwave 0-10V BLE Tuya Roads Lawns Courtyards Parks
Product Overview

JL-712B2 is an intelligent lock-type light controller developed based on ZHAGA BOOK18 interface standard. It utilizes a combination of light sensing and microwave motion detection, outputs 0-10V dimming signals, and features Bluetooth mesh communication for control and configuration via mobile app. Ideal for roads, lawns, courtyards, parks, parking lots, industrial mines, and other lighting applications. Specifically designed for UFO lamps with ZHAGA sockets.

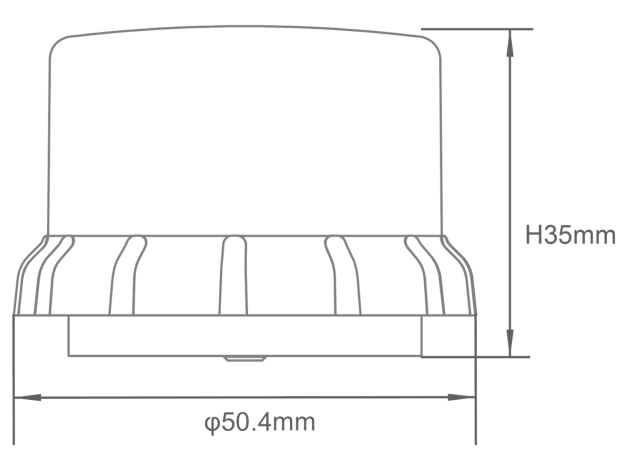

Product Dimensions
Light Sensing + Microwave 0-10V BLE Tuya Roads Lawns Courtyards Parks
Product Features
  • 12 to 24 VDC power supply with low power consumption
  • ZHAGA BOOK18 interface standard compliance
  • Automatic dynamic microwave frequency adjustment to prevent interference in dense installations
  • Compact Φ50×36mm size suitable for most luminaires
  • 0-10V dimming interface
  • Light sensor + microwave sensor combination for on-demand lighting and energy savings
  • 15m mounting height capability
  • BLE MESH connectivity
  • Third-party voice control support (Alexa, Google Assistant, SmartThings, IFTTT, Xiaodu, Tencent Xiaowei, Dingdong)
  • IP66 rated for outdoor use
Technical Specifications
Model JL-712B2
Power Supply Rated voltage: 12-24VDC
Rated current: 40mA
Power Consumption <0.6W
Sensor Type Light-sensitive + Microwave
Spectral Acquisition Range 860-1100nm, Peak wavelength 960nm
Maximum Mounting Height 15m
Sensing Radius >10m (at 15m mounting height)
Anti-jump Delay 3S (minimum interval time between light cycles)
Hold Time Default 30S, adjustable via APP
Standby Brightness Default 0%, adjustable via APP
Standby Time Default 5S, adjustable via APP
Dimming Interface Type: 0-10V
Accuracy: ±2%
Turn On Illuminance APP adjustable with 5 levels: Daytime, Dusk, Evening, Night, Late Night
Energy Saving Strategy Customizable
Mechanical Vibration IEC60068-2-6 compliant
Flammability Level UL94-V0
Operating Temperature -40℃ to 70℃
Storage Temperature -40℃ to 85℃
Operating Humidity 5%RH to 99%RH
IP Level IP66
Certifications Light Sensing + Microwave 0-10V BLE Tuya Roads Lawns Courtyards Parks
Frequently Asked Questions
What is a light sensing + microwave sensor controller with 0-10V dimming and BLE Tuya connectivity?
It is an intelligent lighting controller that combines light sensing and microwave radar detection, supports 0-10V dimming and BLE Tuya wireless control, widely used in roads, lawns, courtyards and parks.
What are the advantages of combining light sensing and microwave detection?
Dual sensing ensures more accurate automatic control: light sensing triggers according to ambient brightness, while microwave detects moving people or vehicles, realizing energy-saving intelligent on/off and dimming.
What is the function of 0-10V dimming in this sensor controller?
It provides smooth and stepless brightness adjustment via 0-10V analog signal, compatible with most LED drivers to achieve ideal brightness and energy saving effect.
How does BLE Tuya connectivity improve user experience?
It supports wireless connection to the Tuya smart platform, allowing users to remotely control, set parameters, adjust sensitivity and create scenes via mobile APP.
In which outdoor scenes is this dual-sensor controller mainly applied?
It is mainly used for road lighting, lawn lights, courtyard lamps, garden lights, park lighting and other outdoor public and residential lighting.
