Specifications
Brand Name :
LongJoin
Model Number :
JL-721NP
Place of Origin :
China
Price :
negotiable
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Payment Terms :
Western Union,MoneyGram,T/T
Power Supply :
Rated voltage:12~24VDC,5W
Communication mode :
NB-IoT
Dimming interface :
DALI2.0
Network Protocol :
MQTT
Certifications :
RoHS,Zhaga,D4i,CE
Real-world Scenarios :
Smart Commercial Districts
Description
Light Sensing NB-IoT DALI2.0 GPS Roads Industry And Mining Lawns Parking Lot
Product Overview

JL-721NP series light controller products are intelligent rotary lock light controllers developed based on ZHAGA BOOK18 interface standard. They can be automatically dimmed by local ambient illuminance or controlled via NB-IOT remote real-time/strategy mode. The dimming mode supports DALI2.0 and includes GPS for automatic device location. Suitable for lighting scenes such as roads, industrial and mining areas, lawns, parking lots, courtyards, and parks.

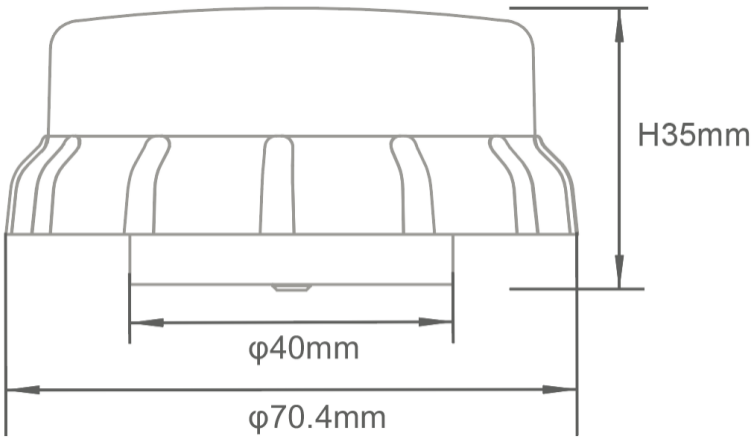

Product Dimensions
Light Sensing NB-IoT DALI2.0 GPS Roads Industry And Mining Lawns Parking Lot
Product Features
  • DC power supply, low power consumption
  • ZHAGA BOOK18 interface standard
  • Support NB-IOT communication mode, multi-band B1/B3/B5/B8/B20, support most countries/regions worldwide
  • Support GPS positioning
  • MQTT network protocol, data encryption
  • 0.01~64000Lux ultra-wide ambient illumination collection range
  • Automatic switch to local light sensing mode when wireless signal is abnormal
  • DALI2.0 dimming interface
  • Small size, suitable for installation in most lamps
  • Interference lighting filtering
  • Lamp reflected light compensation
  • Support DFOTA remote software upgrade
  • Undervoltage alarm report
  • RTC (Real Time Clock)
  • External NANO SIM card
  • IP66 rated
Technical Specifications
Model No. JL-721NP
Power Supply Rated voltage: 12~24VDC, 5W
Communication Mode NB-IoT
Spectral Acquisition Range 350~1100nm, Peak wavelength 550nm
Ambient Light Acquisition Range: 0.01~64000Lux Accuracy: ±2%
Turn On Illuminance 100Lux (±10)
Turn Off Illuminance Reflected light +40Lux (±10) Lower limit: 50+40Lux (±10) Upper limit: 6000Lux (±100)
Reflected Light Compensation Upper Limit 6000Lux (±100)
Dimming Interface DALI2.0
Default Maximum Power Ratio 80%
NB-IOT Frequency band: B1/B3/B5/B8/B20 (customizable) Transmitting power: 23dBm±2dB Receiving sensitivity: -129dBm
Network Protocol MQTT
Initialization After power on, the light is turned on by default and maintains 5S, then automatically turns off and enters auto-sensing operation mode
Blue LED Indicator Light Blinking: Connecting to the server Always on: Successfully connected to the server
Default Periodic Reporting Frequency 10 minutes
Turn On Delay 10S
Turn Off Delay 10S
Energy Saving Strategy Custom
Mechanical Vibration IEC60068-2-6
Flammability Level UL94-V0
Operating Temperature -40℃~70℃
Operating Humidity 5%RH~99%RH
IP Level IP66
Certifications Zhaga-D4i, CE, ROHS
Frequently Asked Questions
Q1: What is a Light Sensing NB-IoT DALI2.0 GPS lighting controller?

A: It is an intelligent outdoor lighting controller that integrates light sensing, NB-IoT communication, DALI2.0 dimming and GPS positioning, designed for multi-scenario intelligent lighting control.

Q2: What are the functions and advantages of NB-IoT in this controller?

A: NB-IoT provides wide coverage, strong penetration, low power consumption and stable long-distance data transmission, supporting remote cloud management and real-time status monitoring.

Q3: What are the benefits of DALI2.0 digital dimming control?

A: DALI2.0 supports two-way communication, high-precision dimming, addressable single-lamp control, strong anti-interference and high compatibility with professional LED drivers.

Q4: Why is GPS module equipped in this lighting controller?

A: GPS enables precise positioning of each lamp, facilitating equipment management, automatic regional timing, fault location and intelligent lighting system planning.

Q5: What application scenarios is this controller suitable for?

A: It is widely used in roads, industrial and mining areas, lawns, parking lots, parks and other outdoor and industrial lighting scenarios.
