Specifications
Brand Name :
LongJoin
Model Number :
JL-701A
Place of Origin :
China
Price :
negotiable
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Payment Terms :
Western Union,MoneyGram,T/T
Power Supply :
Rated voltage：12~24VDC Rated current：3mA
Power Consumption :
Day：12~24V/1.5mA Night：12~24V/1.2mA
Dimming :
0/10V
Dimming interface :
0V or suspended (OD gate output)
Certifications :
RoHS,CE
Real-world Scenarios :
Smart Commercial Districts
Description
Sensor Integration Light Sensitive Zhaga Book 18 Zhaga Controller Ultra Low Cost
JL-701A Light-Sensitive Zhaga Book-18 Controller

JL-701A is an ultra-low-cost electronic rotary lock light controller developed based on the ZHAGA BOOK18 interface standard. It can output 0V or 10V dimming signal through self-photosensitive functionality. The light controller is suitable for lighting scenes such as roads, lawns, courtyards, and parks.

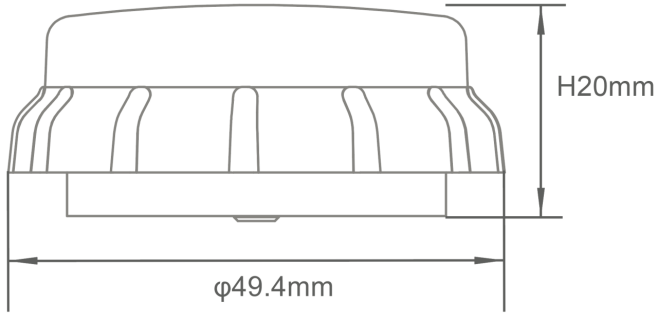

Product Dimensions
Sensor Integration Light Sensitive Zhaga Book 18 Zhaga Controller Ultra Low Cost
Product Features
  • ZHAGA BOOK18 interface standard
  • Ultra low cost design
  • Compact size, suitable for installation to various lamps
  • 1.5mA ultra low working current
  • Anti false triggering design of interference light source
  • No load power consumption ≤ 0.12W
  • Environmental illumination ratio of switch action: 1:4
  • Power on: full on by default, 5S self-test
  • Protection grade: up to IP66
Technical Specifications
Model JL-701A
Power Supply Rated voltage: 12~24VDC
Rated current: 3mA
Power Consumption Day: 12~24V/1.5mA
Night: 12~24V/1.2mA
Dimming 0/10V
Dimming Interface 0V or suspended (OD gate output)
Spectral Acquisition Range 350~1100nm, Peak wavelength 550nm
Turn On Illuminance 16Lux (±10)
Turn Off Illuminance 64Lux (±10)
Turn On Delay 5S
Turn Off Delay 15S
Electrostatic Immunity Standard: IEC61000-4-2
Contact Discharge: ±8kV, CLASS A
Air Discharge: ±15kV, CLASS A
Mechanical Vibration IEC60068-2-6
Flammability Level UL94-V0
Operating Temperature -40℃~70℃
Storage Temperature -40℃~85℃
Operating Humidity 5%RH~99%RH
IP Level IP66
Life ≥ 8000 h
Certifications Sensor Integration Light Sensitive Zhaga Book 18 Zhaga Controller Ultra Low Cost
Frequently Asked Questions
Q1: What is a Light Sensitive Zhaga Book 18 Zhaga Controller?

It is a light-sensitive outdoor lighting controller that fully complies with the Zhaga Book 18 standard, used to automatically control lighting according to ambient brightness.

Q2: What are the core advantages of this ultra-low-cost Zhaga controller?

It maintains complete Zhaga Book 18 compatibility and stable light-sensitive control, while featuring an ultra-low-cost design suitable for large-scale batch deployment.

Q3: What is the function of the light-sensitive function in this controller?

It automatically turns lights on at dusk and off at dawn by sensing ambient light level, realizing intelligent automatic control and effective energy saving.

Q4: Why is Zhaga Book 18 important for this controller?

Zhaga Book 18 ensures standardized mechanical and electrical interfaces, plug-and-play installation, wide compatibility with most LED street lights and outdoor luminaires.

Q5: In which scenarios is this cost-effective controller most suitable?

It is ideal for road lighting, park lighting, courtyard lighting, community lighting and other large-scale public lighting projects pursuing high cost performance.
